| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Model Number: | DN |
| Minimum Order Quantity: | 1 Set |
| Price: | $500.00 - $700.00 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Certification: | CE | Product Name: | Rocker Arm Point Welding |
|---|---|---|---|
| Machine Type: | Resiatance Welding Machine | Application: | Metal Spot Welding |
| Welding Material: | Alloy Metal Aluminum Stainless Steel | Keyword: | Manual Spot Welding Machine |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Dn16 Pedal Welding Machine,Pedal Spot Welding Machine,Dn16 Foot Operated Spot Welder |
||

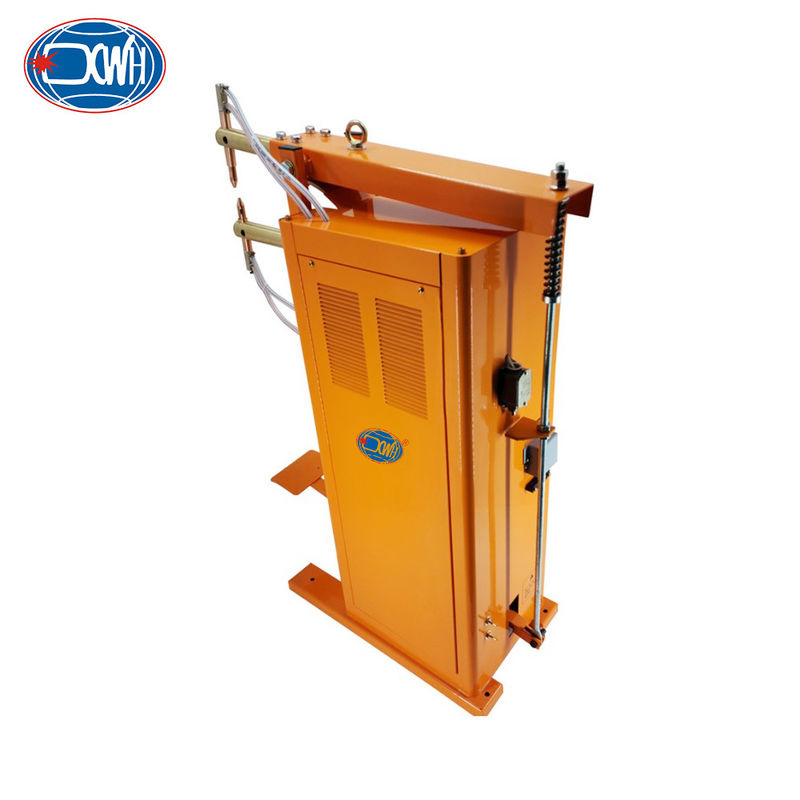

Pedal spot welding machine is easy to operate and foot switch is used to control welding. Welding current and other parameters can be displayed. It can weld stainless steel, low carbon steel, etc. The welding arm can be customized to meet the welding requirements of different workpieces.
|
Models/Item
|
DN-35 | DN-25 | DN-16 | DN-10 |
| Rated Power at 50% | 35KVA | 25KVA | 16KVA | 10KVA |
| Rated Primary Power | 380V | 380V | 380V | 380V |
| Rated Primary Current | 92A | 66A | 42.1A | 26.3A |
| Rated Duty Cycle | 10% | 10% | 10% | 10% |
| Secondary Unload Voltage | 2.6～4.2V | 2.3～3.55V | 1.98～3.01V | 1.65～2.4V |
| Adjustment Rated | 4 | 4 | 4 | 4 |
| Welding Time Adjustment | 0～9.99s |
0～9.99s
|
0～9.99s | 0～9.99s |
| Arms Length | 280mm | 280mm | 280mm | 260mm |
| Max. Welding Capacity | 3+3mm | 2.5+2.5mm | 2+2mm | 1.5+1.5mm |
| Cooling Ways |
Main Transformer: Air air cooling Electrode: Water cooling
|
|||
Advantages
1) The main transformer is made of imported cold-rolled silicon steel, less power loss and low no-load current.
2) Pivoting arm, pedal, spring press structure, easy to operate, The structure in graceful form, durable and cheap.
3) In main circuit adopts thyristors as non-contactor switch, quick switch off and reliable. Welding time can be controlled and adjusted precisely,
good welding repeatability, easy to maintenance, can realize high quality weld.
4) Adopt the digital control system; it is widely used in mild steel, wire, stainless steel plate and so on.
Detail Images
Images
Please note: the pedal spot welding machine can be custom-made according to your requirements.
