| Certification: | Certification | Product Name: | Portable Handheld Welding Machine |
|---|---|---|---|
| Function: | Metal Spot Welding Machine | Machine Type: | Resistance DC Welding Machine |
| Application: | Car Industry | Feature: | High Frequency Inverter DC Output |
| Max. Welding Thickness: | 5+5 Mm | Rated Capacity: | 60KVA, 80KVA, 100KVA |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| High Light: | Portable Handheld Welding Machine,SS Handheld Spot Welding Machine,100KVA Portable Spot Welding Machine |
||
Product Description

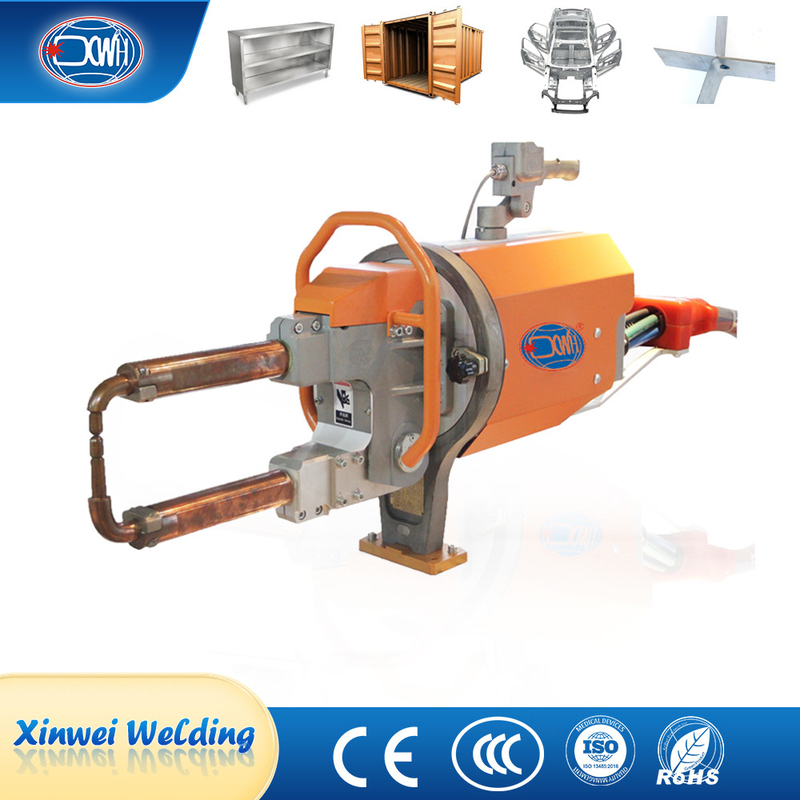

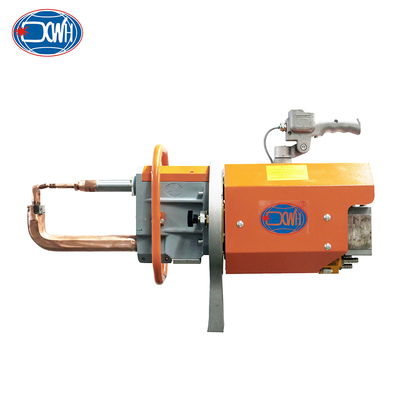

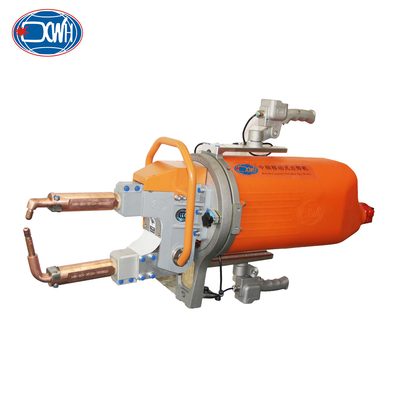

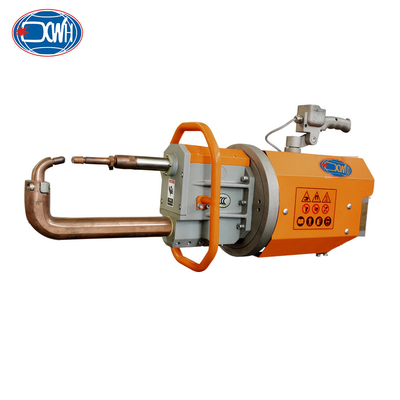

The portable spot welding machine integrates related devices such as welding transformers, cylinders, solenoid valves, water and gas distributors, rotating rings and suspension rods, balance systems, and control handles. By adjusting the size of the thyristor (IGBT) through a controller, the output current of the transformer can be adjusted to meet the requirements of welding specifications.
| Item/models | Unit | DN2-60X | DN2-60C | DN2-80X | DN2-80C | DN2-100X | DN2-100C |
| power at 50 | KVA | 60 | 60 | 80 | 80 | 100 | 100 |
| Maximum short circuit current | KVA | 10 | 10 | 12 | 12 | 14 | 14 |
| Secondary unload voltage | V | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
| Voltage at 50Hz/60Hz | V | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 |
| Distance between the arms | MM |
120-280 |
100-300 | 120-128 | 100-300 | 120-280 | 100-300 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Max. arm length | MM | 500 | 500 | 600 | 500 | 600 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 8 | 8 | 8 | 8 | 8 | 8 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1) The spatter in the welding process is greatly reduced, improving the welding quality and purifying the welding environment.
2) Integrated modular design, the welding control system has stable performance, high reliability, and low welding failure rate.
3) The transformer adopts medium frequency type, which meets international standards. The product technology is advanced, with F-level insulation and IP65 high protection level. Equipped with overheating protection function, high efficiency, low magnetic loss, high output power, and high grid utilization rate.
4) Adopting a proportional valve to control the pressure of the welding clamp cylinder, ensuring precise control.
5) Widely used in welding high-strength plate, aluminum, galvanized metal and other metal materials.
Application:
The portable spot welding machine is widely used in automobile manufacturing, maintenance, household appliances, doors and Windows, agriculture, construction steel and other metal manufacturing industries.
Welding Principle Of Electric Resistance Welding
The weldment is pressed between two columnar electrodes and heated by electricity, so that the weldment melts at the contact and forms a nugget. Then power off, the weldment is solidified and crystallized under pressure to form a dense welding spot. Spot welding is suitable for welding thin plate (lap) and steel bar. It is widely used in the production of automobile, aircraft, electronics, instruments and daily necessities.
Welding Process
The main working process of portable spot welding machine is composed of four basic procedures: pressurization, welding, maintenance and rest, and additional procedures can be added if necessary.
General Structures
Mutiple Electrode Arms
