| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | D(N)B--100, D(N)B--160, D(N)B--200, D(N)B--250 |
| Minimum Order Quantity: | 1 |
| Price: | USD8500-USD95000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Product Name: | Electronic Component Welding Machine | Machine Type: | Pedal Control |
|---|---|---|---|
| Application: | Electronic Production | Function: | Projection Welding |
| Keyword: | Manual Spot Welding Machine | Welding Material: | Steel Copper Aluminum |
| Max. Welding Capacity: | 6+6mm | After Warranty Service: | Free SpareVideo Technical Support, Online Support And Spare Parts Parts, Field Installation, Commissioning And Training |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | Certification: | CE |
| High Light: | Electronic Components Platform Spot Welder,Platform Spot Welding Machine,Platform Manual Spot Welding Machine |
||

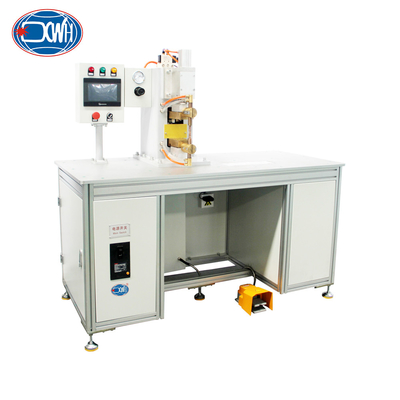

Platform Spot Welder Table Type Welding Machine For Electronic Components
Product Introduction
The electronic component desktop spot welding machine consists of a profile frame, welding transformer, water system, gas system, microcomputer resistance welding machine controller, foot switch, etc.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. The secondary conductor adopts the upper insulation method, with stable and reliable insulation performance
2. The main circuit adopts a water-cooled high-power thyristor module, which has strong output, stability, and reliability, and the water distributor can be installed outside the equipment
3. All water circuit components are made of copper and stainless steel, and are equipped with a visual water flow display to display the water flow situation
4. The operation is controlled by a manual switch, which has high production efficiency and low labor intensity
5. Equipped with a touch screen for quick switching of welding processes
Major Structure

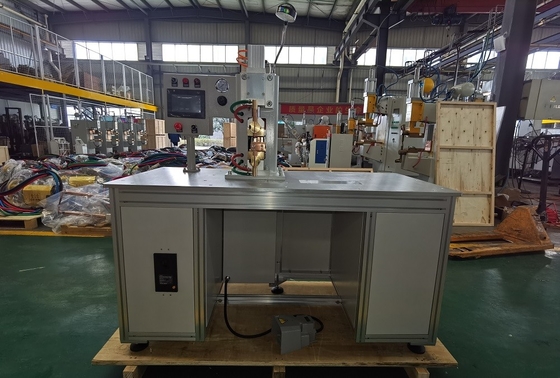

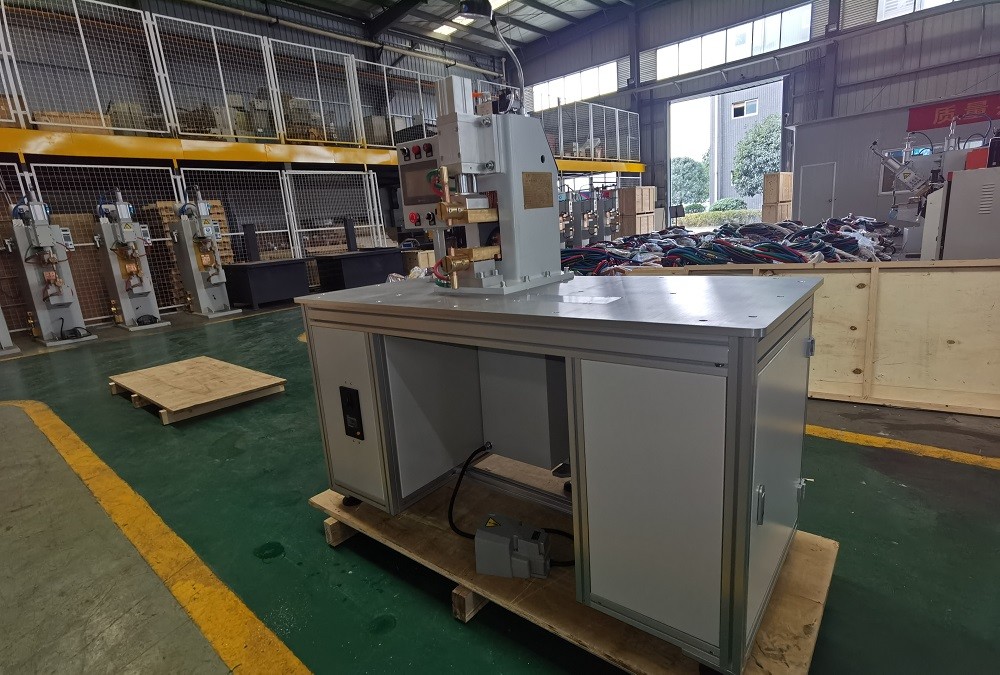

Reference Pictures
