| Certification: | CE | Product Name: | Electronic Component Welding Machine |
|---|---|---|---|
| Machine Type: | Pedal Welding Machine | Application: | Electronic Production |
| Function: | Resistance Spot Welding | Keyword: | Platform Spot Welder |
| Welding Material: | Low Carbon Steel .stainless Steel | Max. Welding Capacity: | 6+6mm |
| After Warranty Service: | Free SpareVideo Technical Support, Online Support And Spare Parts Parts, Field Installation, Commissioning And Training | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Custom Resistance Welding Table,Industrial Resistance Welding Table,Desktop Resistance Spot Welder |
||
Industrial Custom Resistance Welding Table Spot Desktop Welder Table Machine
Product Introduction

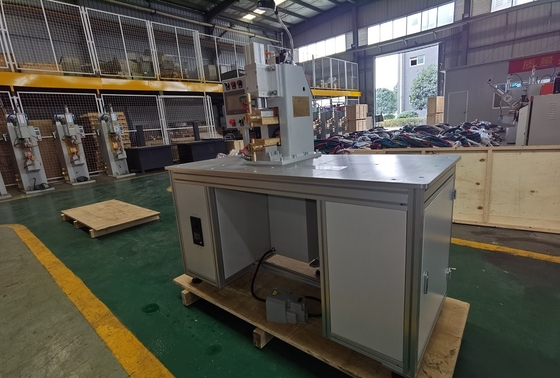

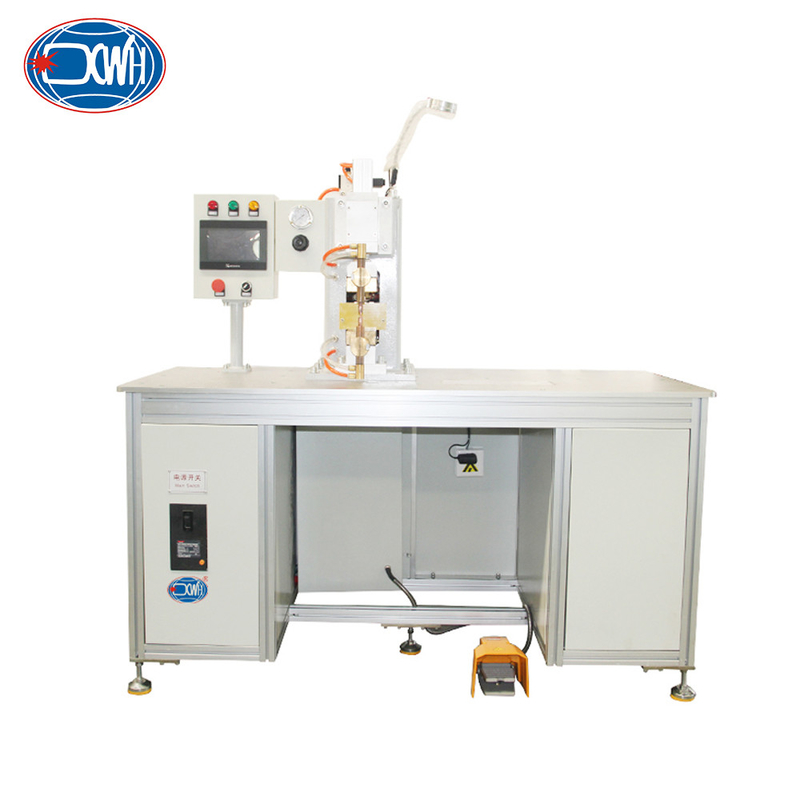

The electronic component desktop spot welding machine consists of a profile frame, welding transformer, water system, gas system, microcomputer resistance welding machine controller, foot switch, etc.
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. The secondary conductor adopts the upper insulation method, with stable and reliable insulation performance
2. The main circuit adopts a water-cooled high-power thyristor module, which has strong output, stability, and reliability, and the water distributor can be installed outside the equipment
3. All water circuit components are made of copper and stainless steel, and are equipped with a visual water flow display to display the water flow situation
4. The operation is controlled by a manual switch, which has high production efficiency and low labor intensity
5. Equipped with a touch screen for quick switching of welding processes
Major Structure
Matters Needing Attention
1. The welding machine is connected to 380V AC power and must comply with the basic regulations for technical safety protection.
2. The welding machine must be reliably grounded and inspected at all times. It is never allowed to replace the ground wire with a zero wire.
3. Inspection and repair of the welding machine should be carried out after the main power switch is cut off.
4. When the ambient temperature is higher than 5 ℃, compressed air should be used to enter the "water inlet" of the welding machine to remove any water stored in the cooling water circuit, in order to avoid freezing of the welding machine's cooling water pipe. For welding machines that have been discontinued for a long time, the stored water should also be drained to avoid rusting the machine parts.
