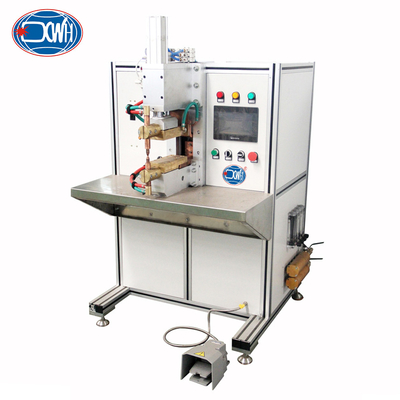

Platform Spot Welding Equipment Welder Table Machine For Precision Welding
Product Introduction
The desktop medium frequency spot welding machine is composed of the body, welding cylinder assembly, welding transformer, water system, gas system, microcomputer resistance welding machine controller, foot switch, etc. This welding machine is mainly used for welding electronic products (stainless steel, copper, steel).
Technical Parameters
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
(1)The secondary conductor adopts the upper insulation method, with stable and reliable insulation performance;
(2)The main circuit adopts water-cooled IGBT, with strong output, stability, and reliability, and the water distributor can be installed outside the equipment;
(3)All waterway components are made of copper and stainless steel, equipped with a visual water flow display to display the water flow situation;
(4)The operation is controlled by a foot switch, which has high production efficiency and low labor intensity.
(5)Equipped with a touch screen for quick switching of welding processes.
(6)The equipment has a water pressure switch and an alarm.
Major Structure
Use and Maintenance of Welding Machines
1. During the use of the welding machine, there should be sufficient water flow, no water interruption is allowed, and the water path should be kept smooth.
2. During the use of the welding machine, it is necessary to regularly keep more than 1/4 of the volume of oil stored in the oil mist collector. If it is insufficient, 10 # engine oil should be added in a timely manner.
3. Regularly inject 30 # engine oil into the oil cup on the support and lubricate the sliding components.

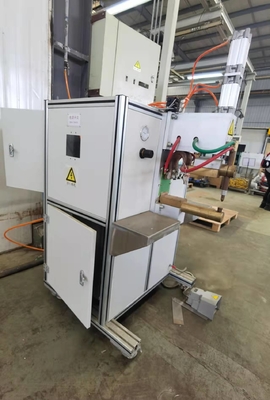

Reference Pictures
