| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Model Number: | TNB-250, TNB-300, TNB-350, TNB-400 |
| Minimum Order Quantity: | 1 |
| Price: | USD12000-USD13000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets/month |
| Certification: | CE | Product Name: | Polymer Diffusion Resistance Welders |
|---|---|---|---|
| Application: | Copper Welding Machine | Function: | For Welding Copper Strips |
| Machine Type: | Projection Welding Machine | Feature: | Copper Welding Machines |
| Welding Material: | Aluminum, Stainless Steel, Metal Steel | Max. Welding Capacity: | 6+6mm |
| After Warranty Service: | Video Technical Support, Online Support And Spare Parts | After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training |
| High Light: | Mfdc Copper Resistance Welders,Pneumatic Copper Resistance Welders,Pneumatic Diffusion Welding Machine |
||

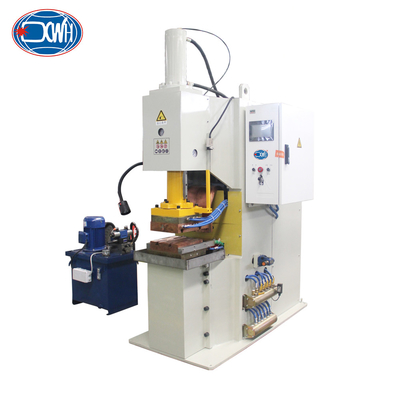

Manual Pneumatic Mfdc Copper Resistance Welders Cnc Diffusion Welding Machine
Product Description
Diffusion welding machine’s main function is to realize multi-layer welding of copper foil, aluminum foil, etc, This equipment mainly produces bus expansion joints and soft connection conductive belt products urgently needed by the new energy battery, electric power, chemical industry and smelting industries, which can realize the diffusion welding between soft busbars, soft busbars and hard busbars, as well as high-power soft busbars, expansion joints, and soft connection conductive products, and braze special workpieces of opposite polarity.
Technical Parameters
|
Item/Model
|
TNB-250
|
TNB-300
|
TNB-350
|
TNB-400
|
|
Rated Power(KVA)
|
250
|
300
|
350
|
400
|
|
Input Voltage(V)
|
220V/380V
|
220V/380V
|
220V/380V
|
220V/380V
|
|
Max. Short Circuit Current (KA)
|
35
|
45
|
55
|
60
|
|
Duty cycle(%)
|
50
|
50
|
50
|
50
|
|
Min.Force At Electrodes(N)
|
1000
|
1000
|
1000
|
1000
|
|
Electrodes Min. Distance( MM)
|
75
|
75
|
75
|
75
|
|
Rated Cooling Hydraulic Pressure( MPA)
|
0.05
|
0.05
|
0.05
|
0.05
|
|
Cooling consumption(L/min)
|
20
|
20
|
20
|
20
|
|
Max.Welding Capacity(Sheet Copper)( MM)
|
7+7
|
8+8
|
10+10
|
13+13
|
Advantages
1. Simple operation, no need for any form of flux, reduce operating costs
2. Long service life, high pressure, and strong stability performance
Fast welding speed, good welding effect, and sturdy and stable finished product quality
3. Applied to most metal materials, the welding effect will be better, especially in welding metals with high thermal conductivity such as aluminum, aluminum alloys, and copper, which have better results and more reliable quality.
4. Suitable for soft connection welding of copper parts such as new energy vehicles, electric vehicles, power electricians, etc

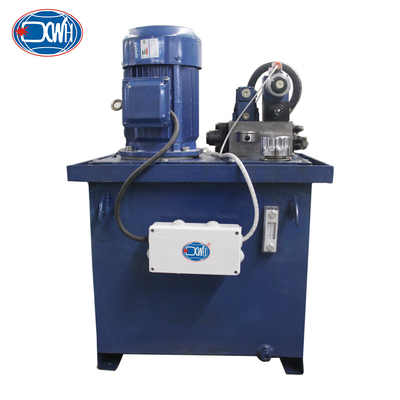

Product Structure
Application
