Cnc Resistance Welding Industrial Semi Automatic Diffusion Welding Machine Price

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: TNB-250, TNB-300, TNB-350, TNB-400
Minimum Order Quantity: 1
Price: USD12000-USD13000
Packaging Details: Wooden Case
Delivery Time: 15 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 sets/month
Detail Information
Product Name: Polymer Diffusion Resistance Welders Application: Copper Welding Machines
Function: Copper Strips Welding Welder Machines Machine Type: Resistance Welders
Feature: Industrial Welding Machine Price Welding Material: Aluminum, Stainless Steel, Metal Steel
Max. Welding Capacity: 6+6mm After Warranty Service: Video Technical Support, Online Support And Spare Parts
After-sales Service Provided: Free Spare Parts, Field Installation, Commissioning And Training Certification: CE
High Light:

Semi Automatic Diffusion Welding Machine

,

Semi Automatic Resistance Welding Machine

,

Industrial Cnc Diffusion Welding Machine


Product Description



Cnc Resistance Welding Industrial Semi-Automatic Diffusion Welding Machine Price



Product Description



Diffusion welding machine is a new generation of diffusion welding machine, which is divided into copper foil soft connection welding machine and aluminum foil soft connection welding machine. The soft connection equipment is mainly composed of host and control parts, which can realize diffusion welding between polymer materials. Polymer diffusion welding machine is a welding equipment specially used for welding copper strip soft connection, aluminum strip soft connection or related products.




Technical Parameters



Item/Model
TNB-250
TNB-300
TNB-350
TNB-400
Rated Power(KVA)
250
300
350
400
Input Voltage(V)
220V/380V
220V/380V
220V/380V
220V/380V
Max. Short Circuit Current (KA)
35
45
55
60
Duty cycle(%)
50
50
50
50
Min.Force At Electrodes(N)
1000
1000
1000
1000
Electrodes Min. Distance( MM)
75
75
75
75
Rated Cooling Hydraulic Pressure( MPA)
0.05
0.05
0.05
0.05
Cooling consumption(L/min)
20
20
20
20
Max.Welding Capacity(Sheet Copper)( MM)
7+7
8+8
10+10
13+13





Advantages



1. Simple operation, no need for any form of flux, reduce operating costs



2. Long service life, high pressure, and strong stability performance



Fast welding speed, good welding effect, and sturdy and stable finished product quality



3. Applied to most metal materials, the welding effect will be better, especially in welding metals with high thermal conductivity such as aluminum, aluminum alloys, and copper, which have better results and more reliable quality.



4. Suitable for soft connection welding of copper parts such as new energy vehicles, electric vehicles, power electricians, etc





Product Structure

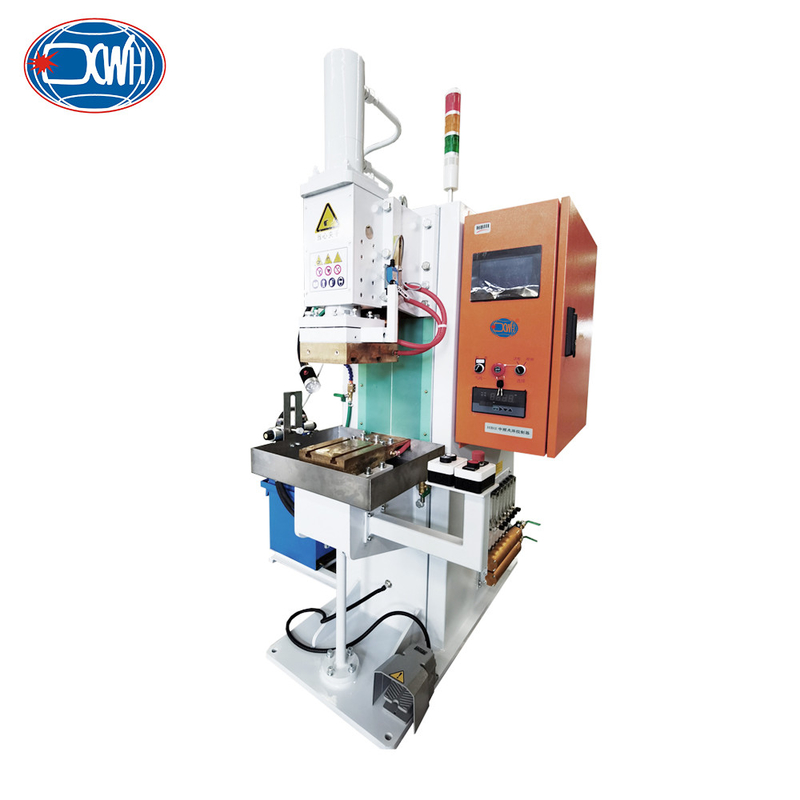

Cnc Resistance Welding Industrial Semi Automatic Diffusion Welding Machine Price 0








Cnc Resistance Welding Industrial Semi Automatic Diffusion Welding Machine Price 1





Application


Cnc Resistance Welding Industrial Semi Automatic Diffusion Welding Machine Price 2
Cnc Resistance Welding Industrial Semi Automatic Diffusion Welding Machine Price 3


Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.


Cnc Resistance Welding Industrial Semi Automatic Diffusion Welding Machine Price 4
Cnc Resistance Welding Industrial Semi Automatic Diffusion Welding Machine Price 5
Cnc Resistance Welding Industrial Semi Automatic Diffusion Welding Machine Price 6
Cnc Resistance Welding Industrial Semi Automatic Diffusion Welding Machine Price 7

Cnc Resistance Welding Industrial Semi Automatic Diffusion Welding Machine Price 8
