| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN(B)-160, DN(B)-200, DN(B)-250 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD14000-USD18000 |
| Packaging Details: | Non-fumigation Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Table Welding Machine | Application: | Welding Electrical Panel Box |
|---|---|---|---|
| Function: | High Efficiency Welding | Machine Type: | Resiatance Welding Machine |
| Keyword: | Manual Spot Welding | Welding Material: | Steel Copper Aluminum |
| Feature: | Durable | Warranty: | 12 Months Guarantee |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| High Light: | Rocker Arm Platform Spotter Welder,Automatic Table Spot Welding Machine,CE Automatic Table Welding Machine |
||

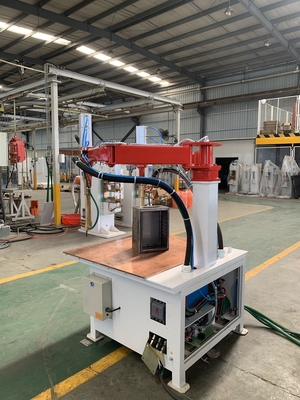

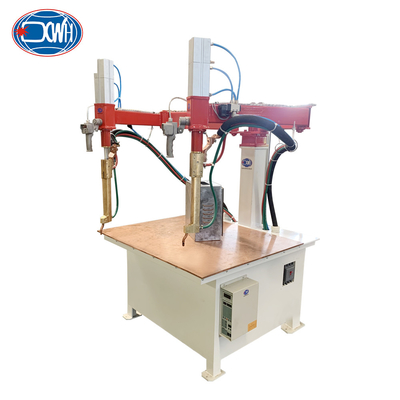

Rocker Arm Platform Spotter Welder Automatic Table Spot Welding Machine For Metal
Product Introduction:
The rock arm spot welder is cutomized with two welding guns and makes it more efficient. The platform table spot welding machine is suitable for welding sheet metal, such as door panels, metal cabinets and so on.
Advantages:
1.Flexible activity: The upper electrode is flexible, and there is no need to move the workpiece during welding, improving production efficiency.
2. Firm welding points: During welding, the pressure is generated by the cylinder, ensuring a balanced and consistent welding pressure for the workpiece and ensuring welding strength.
3. Beautiful solder joints: After welding, there are no welding pits or marks on the front of the workpiece, improving the appearance quality of the product.
4. Scope of application: Used for welding metal plates such as cold plates, galvanized plates, stainless steel plates, etc.
5. Applicable industries: chassis cabinets, elevators, electrical cabinets, automobiles, steel and wood furniture, kitchen appliances, and other industries.
Technical Parameters:
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
General Structures:
Production Line:
Application:
FAQ:
