Place of Origin: | China |
---|---|
Brand Name: | XWH |
Certification: | CE |
Model Number: | DN(B)-160, DN(B)-200, DN(B)-250 |
Minimum Order Quantity: | 1 Set |
Price: | USD14000-USD18000 |
Packaging Details: | Non-fumigation Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 500 sets/month |
Product Name: | Platform Welding Machine | Application: | For Welding Electrical Panel Box |
---|---|---|---|
Function: | Sheet Metal Spot Welding | Machine Type: | Manual Welding |
Keyword: | Hand Spot Welder | Welding Material: | Steel Copper Aluminum |
Feature: | Durable | Warranty: | 12 Months Guarantee |
After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
High Light: | Automobiles Hand Spot Welder,Customized Platform Spot Welding Machine,AC380V Platform Spot Welder |

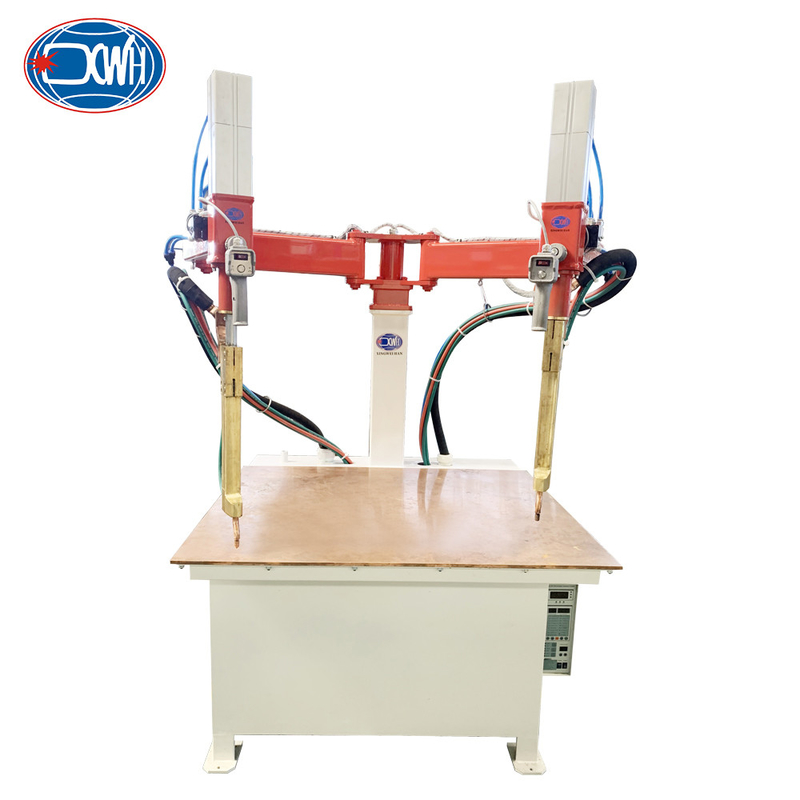

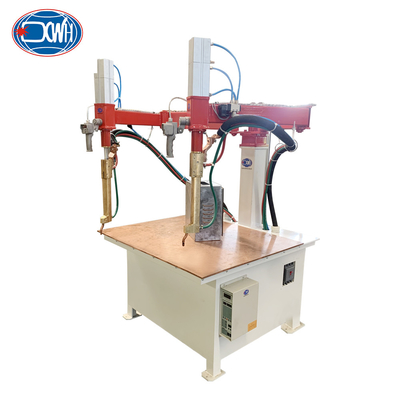

Spot Welder Platform Spot Welding Machine For Electrical Panel Box
Product Introduction:
The rock arm spot welder is cutomized with two welding guns and makes it more efficient. The platform table spot welding machine is suitable for welding sheet metal, such as door panels, metal cabinets and so on.
Advantages:
1. Welding power sources can be made into two types: AC spot welding or medium frequency inverter DC spot welding, and can be selected according to different welding materials.
2. . The lower electrode is a horizontal platform type: with a large welding range, the workpiece is flat and not easily deformed after welding, and the bottom of the welding point is smooth and traceless.
3. Firm welding points: During welding, the pressure is generated by the cylinder, ensuring a balanced and consistent welding pressure for the workpiece and ensuring welding strength.
4. Beautiful solder joints: After welding, there are no welding pits or marks on the front of the workpiece, improving the appearance quality of the product.
5. Applicable industries: chassis cabinets, elevators, electrical cabinets, automobiles, steel and wood furniture, kitchen appliances, and other industries.
Technical Parameters:
Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
Rated power (KVA) | 100 | 160 | 200 | 250 |
Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
Max. force (N) | 6000 | 6000 | 10000 | 15000 |
Electrode length(MM) | 450 | 450 | 450 | 500 |
Working stroke(MM) | 80 | 80 | 80 | 80 |
Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
General Structures:
Production Line:
Application:
FAQ:
