| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN(B)-160, DN(B)-200, DN(B)-250 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD14000-USD18000 |
| Packaging Details: | Non-fumigation Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| Product Name: | Spot Welder Platform Table Spot Welding Machine | Application: | Welding Electrical Panel Box |
|---|---|---|---|
| Function: | Resistance Spot Welding | Machine Type: | Pneumatic |
| Keyword: | Manual Welding Machine | Welding Material: | Steel Copper Aluminum |
| Feature: | High Production Efficiency | Warranty: | 12 Months Guarantee |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| High Light: | Platform Table Spot Welding Machine,Platform Table Spot Welders,200KVA Spot Welding Machine |
||

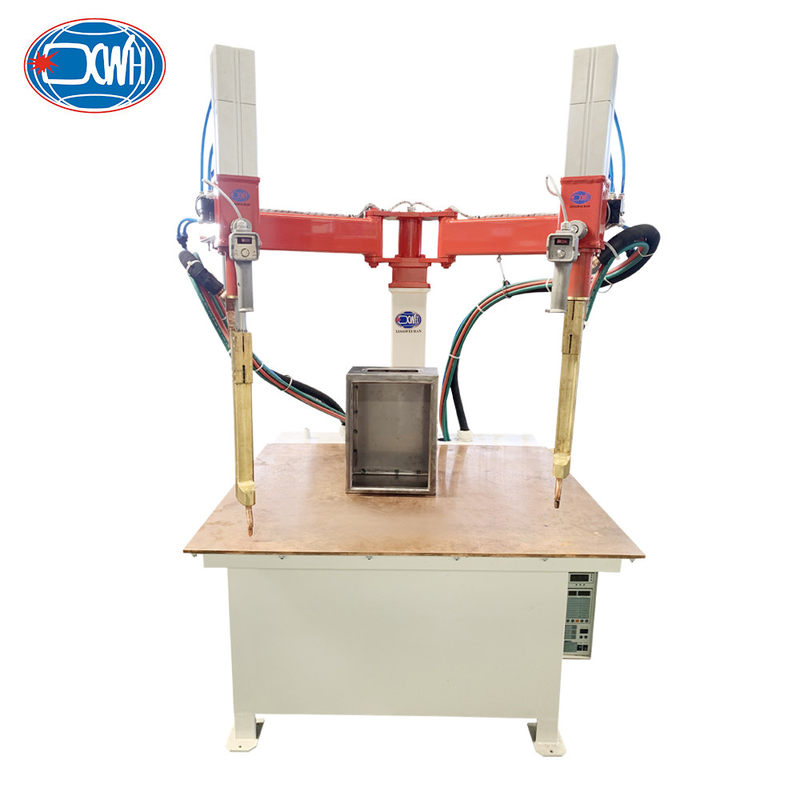

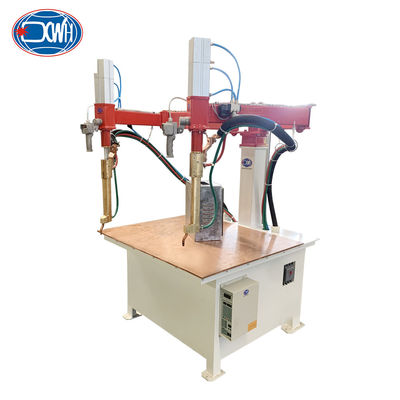

Spot Welders Platform Table Spot Welding Machine For Electrical Panel Box
Product Introduction:
Platform type spot welding machine is mainly designed for large metal workpieces in industries such as hardware, sheet metal, elevators, kitchenware, and automobiles.
Advantages:
1. After welding, there are no welding pits on the outer surface of the parts, and the outer surface of the welding points is smooth or free from deformation, without the need for polishing treatment. The absence of secondary processing dust not only improves production efficiency but also improves the production environment.
2. The welding arm is a multi joint flexible welding arm, with a parallel joint structure that operates flexibly and has a larger welding range, making it easy to reach every point on the workbench.
3. There is a button installed on the handle of the welding gun, which can be pressed to directly weld, and a foot switch can also be configured.
4. The welding gun can be moved according to different positions of the welding point, making it lightweight, flexible, and fast, reducing labor intensity and making operation simple and convenient.
5. The operation is simple, easy to learn, and there are no requirements for the operator.
Technical Parameters:
| Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
| Max. force (N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
