Place of Origin: | China |
---|---|
Brand Name: | XWH |
Certification: | CE |
Model Number: | DN(B)-160, DN(B)-200, DN(B)-250 |
Minimum Order Quantity: | 1 Set |
Price: | USD14000-USD18000 |
Packaging Details: | Non-fumigation Wooden Case |
Delivery Time: | 15 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 500 sets/month |
Product Name: | Table Spot Welder | Application: | Electrical Panel Box Welding |
---|---|---|---|
Function: | Metal Sheet Weldinng | Machine Type: | Pneumatic Spot Welding |
Keyword: | Manual Welding Machine | Welding Material: | Steel Copper Aluminum |
Feature: | High Production Efficiency | Warranty: | 12 Months Guarantee |
After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
High Light: | Sheet Metal Spot Welding Machine,Stainless Steel Table Spot Welder,Pneumatic Spot Welding Machine |

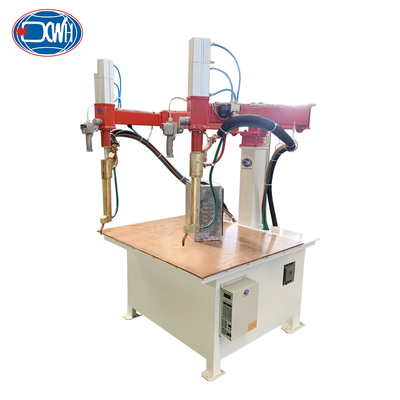

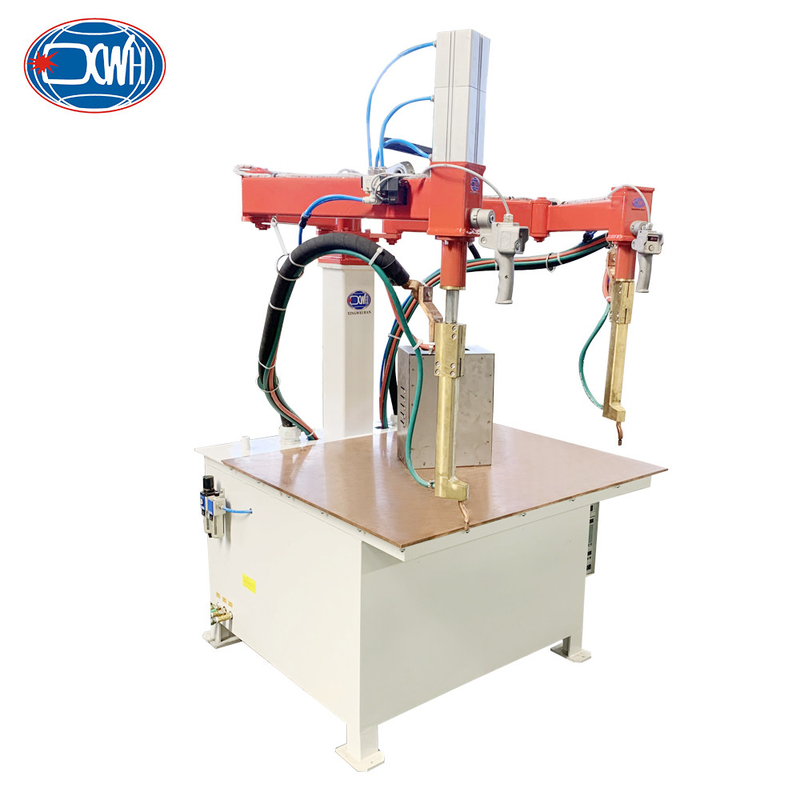

Resistance Sheet Metal Spot Welding Machine Table Spot Welder For Stainless Steel
Product Introduction:
Platform type spot welding machine is mainly designed for large metal workpieces in industries such as hardware, sheet metal, elevators, kitchenware, and automobiles.
Advantages:
1. The lower electrode is the electrode platform, and the workpiece can be directly placed on the electrode platform for welding, overcoming the drawbacks of traditional welding machines such as distortion and deformation after welding.
2. The upper electrode has a joint arm structure, which allows for flexible electrode movement and wider welding range. During welding, there is no need to move the workpiece, reducing labor intensity and improving production efficiency.
3. During welding, the pressure is generated by the cylinder to achieve a balanced and consistent welding pressure on the workpiece, ensuring welding strength.
4. After welding, there are no welding pits or marks on the front of the workpiece, which improves the appearance quality of the product.
5. After welding, there is no need to scrape putty or polish the workpiece, reducing processing procedures, saving workers, and reducing costs.
6. Scope of application: Used for welding metal plates such as cold plates, galvanized plates, stainless steel plates, etc.
Technical Parameters:
Models/Item | DN(B)-100 | D(N)B--160 | D(N)B--200 | D(N)B--250 |
Rated power (KVA) | 100 | 160 | 200 | 250 |
Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
Max. short circuit current(KA) | 30 | 40 | 40 | 45 |
Max. force (N) | 6000 | 6000 | 10000 | 15000 |
Electrode length(MM) | 450 | 450 | 450 | 500 |
Working stroke(MM) | 80 | 80 | 80 | 80 |
Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
Max.welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
General Structures:
Production Line:
Application:
FAQ:
