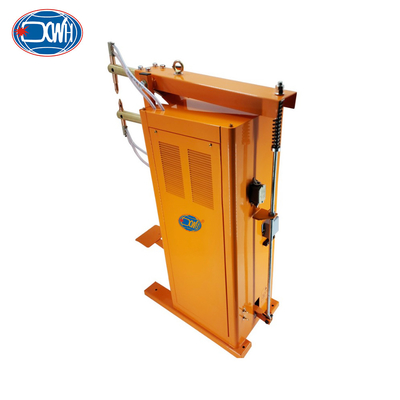

Resistance Welders Point Spot Welders Foot Spot Welding Machine

Brand Name:	XWH
Model Number:	DN
MOQ:	1 Set
Price:	$500.00 - $700.00
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Foot Operated Spot Welding Machine

Machine Type:

Resiatance Welding Machine

Application:

Metal Spot Welding

Welding Material:

Alloy Metal Aluminum Stainless Steel

Keyword:

Manual Spot Welding Machine

Certification:

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

50 sets/month

Highlight:

Foot Spot Welding Machine

Point Spot Welders

Foot Spot Welding Resistance Welders

Product Description

Resistance Welders Soldadora De Punto Point Spot Welders Foot Spot Welding Machine

Product Introduction:

The principle of a pedal type spot welding machine is to use the characteristics of double-sided double point overcurrent to compress the welded piece between two electrodes, causing two layers of metal to form a certain contact resistance under the pressure of the two electrodes. When the welding current flows from one electrode to the other electrode, it forms an instantaneous hot melt connection between the two contact resistance points, and the welding current instantly forms a circuit from the other electrode along the two workpieces to this electrode, forming a metal structure.

Technical Parameters:

Models/Item	DN-35	DN-25	DN-16	DN-10
Rated Power at 50%	35KVA	25KVA	16KVA	10KVA
Rated Primary Power	380V	380V	380V	380V
Rated Primary Current	92A	66A	42.1A	26.3A
Rated Duty Cycle	10%	10%	10%	10%
Secondary Unload Voltage	2.6～4.2V	2.3～3.55V	1.98～3.01V	1.65～2.4V
Adjustment Rated	4	4	4	4
Welding Time Adjustment	0～9.99s	0～9.99s	0～9.99s	0～9.99s
Arms Length	280mm	280mm	280mm	260mm
Max. Welding Capacity	3+3mm	2.5+2.5mm	2+2mm	1.5+1.5mm
Cooling Ways	Main Transformer: Air air cooling Electrode: Water cooling

Advantages:

1. Using lever type pedals: simple operation, agile response.

2. Insulation design: Insulation design is used between the welding circuit and the body to avoid power consumption while ensuring safety.

3. Fully digital control system with control circuit, welding, stability, and no spark splashing.

4. The welding arm moves vertically and can be used for single spot welding and row welding. The lower electrode arm can be adjusted in the up, down, left, right, front, and back directions, which can be used for complex welding processes.

5. Widely used for welding of low carbon steel, wire stainless steel plate etc.

Detail Images:

Scene Images:

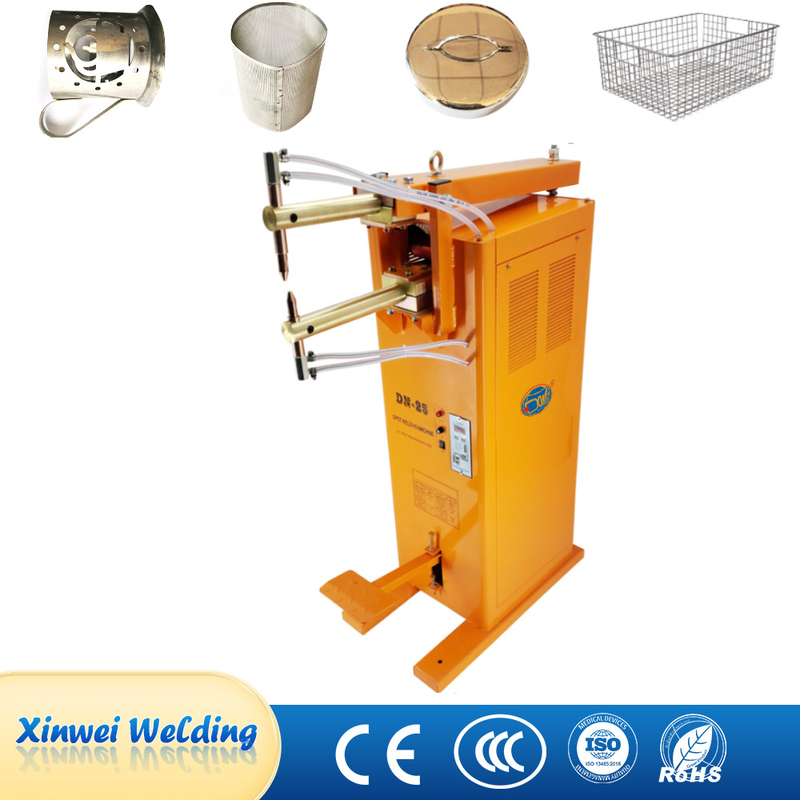

Resistance Welders Point Spot Welders Foot Spot Welding Machine 2

Please note: the pedal spot welder can be custom-made according to your requirements.

Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.

Resistance Welders Point Spot Welders Foot Spot Welding Machine 6

Resistance Welders Point Spot Welders Foot Spot Welding Machine 7

Resistance Welders Point Spot Welders Foot Spot Welding Machine 8

Resistance Welders Point Spot Welders Foot Spot Welding Machine 9
