Soldadura Por Punto Resistance Cnc Foot Operated Spot Welding Welder Machines
Brand Name:
XWH
Model Number:
DN
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
1 Set
Price:
$500.00 - $700.00
Supply Ability:
50 sets/month
Delivery Time:
15 Working days
Inquiry Now
Get A Quote
Specifications
Highlight Features
Resistance Spot Welding Machines
,Cnc Spot Welder Machines
,Foot Operated Spot Welder Machines
Product Name:
Pedal Type Spot Welding Machine
Machine Type:
Resiatance Welding Machine
Application:
Metal Spot Welding
Welding Material:
Alloy Metal Aluminum Stainless Steel
Keyword:
Manual Spot Welding Machine
Certification:
CE
After Warranty Service:
Video Technical Support, Online Support And Spare Parts
After-sales Service Provided:
Free Spare Parts, Field Installation, Commissioning And Training
Product Description

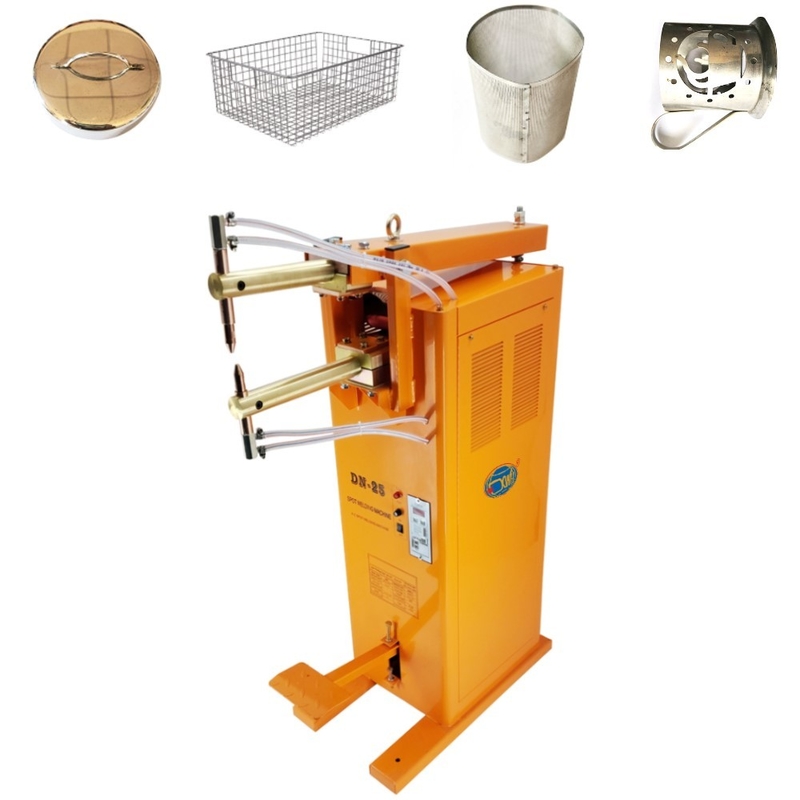

Soldadura Por Punto Resistance Cnc Foot Operated Spot Welding Welder Machines
Product Introduction:
The DN series foot operated spot welding machine uses electrodes to pressurize the welded part while being energized, and uses the Joule heat (instantaneous) generated by the contact resistance between electrodes to melt the metal to achieve the purpose of welding. No need to add any solder, high efficiency, low cost, and other characteristics.
Technical Parameters:
|
Models/Item
|
DN-35 | DN-25 | DN-16 | DN-10 |
| Rated Power at 50% | 35KVA | 25KVA | 16KVA | 10KVA |
| Rated Primary Power | 380V | 380V | 380V | 380V |
| Rated Primary Current | 92A | 66A | 42.1A | 26.3A |
| Rated Duty Cycle | 10% | 10% | 10% | 10% |
| Secondary Unload Voltage | 2.6～4.2V | 2.3～3.55V | 1.98～3.01V | 1.65～2.4V |
| Adjustment Rated | 4 | 4 | 4 | 4 |
| Welding Time Adjustment | 0～9.99s |
0～9.99s
|
0～9.99s | 0～9.99s |
| Arms Length | 280mm | 280mm | 280mm | 260mm |
| Max. Welding Capacity | 3+3mm | 2.5+2.5mm | 2+2mm | 1.5+1.5mm |
| Cooling Ways |
Main Transformer: Air air cooling Electrode: Water cooling
|
|||
Advantages:
1. Reasonable lever pressurization and force distribution power transmission structure, easy to operate and flexible.
2. Adjustable welding time and good welding repeatability.
3. Thyristor controlled turn on or off electric circuit ensure the machine be turned off quickly and be more reliable.
4. Widely used in metal container manufacturing, construction machinery repair, automotive parts, bicycle parts, special-shaped marking standards, electronic components, instruments and meters, electrical switches, cable production, filters, silencers, metal packaging, chemical containers, wire mesh, mesh baskets and other metal product industries.

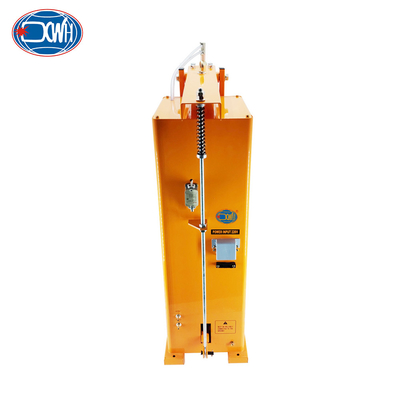

Detail Images:
Scene Images:
Please note: the pedal spot welder can be custom-made according to your requirements.
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
