Soldador De Punto Resistance Metal Cnc Pneumatic Spot Welding Machine For Metal

Soldador De Punto Resistance Metal Cnc Pneumatic Spot Welding Machine For Metal

Brand Name:	XWH
Model Number:	DN3-16, DN3-25, DN3-35
MOQ:	1
Price:	USD1000-USD1200
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Pneumatic Spot Welding Machine

Application:

Metal Spot Welding

Function:

Metal Spot Welding Machine

Machine Type:

Resistance AC Welding Machine

Keyword:

Manual Welding Machine

Welding Material:

Alloy Metal Aluminum Stainless Steel

Feature:

Easy Operation

Warranty:

1 Year Guarantee

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Packaging Details:

Wooden Case

Supply Ability:

500 sets/month

Highlight:

Metal Cnc Pneumatic Spot Welding Machine

Metal Resistance Spot Welding Machine

Cnc Pneumatic Spot Welding Machine

Product Description

Soldador De Punto Resistance Metal Cnc Pneumatic Spot Welding Machine For Metal

Product Introduction:

Pneumatic spot welder machine is a spot welding equipment that relies on a compressed air source to provide welding pressure. Its main feature is that the welding cylinder on the pressurization mechanism generally acts vertically on the spot welding head, providing stable pressure for welding.

Advantages:

1.The pneumatic spot welding machine is controlled by microcomputer circuit which has a high accuracy.

2. The fine adjustment of welding current can be controlled between 20% to100%.

3. The transmission rod is operated by foot, which is beautiful and durable while using.

4. The welding time is adjustable and the welding repeatability is excellent.

5. It can perform high-quality and efficient welding on medium and low carbon steel plates, metal plates of different thicknesses, round steel and round steel, small diameter wire rods, steel plates and workpieces, as well as various non ferrous metal shaped workpieces.

6. Widely used for spot welding of various thin plate structures, suitable for wire mesh processing, automotive component manufacturing, metal processing, mechanical manufacturing, handicraft welding, and other fields.

Technical Parameters:

Product Welding Video	We provide technical guidance videos, product welding videos, and samples please contact us.
Overseas on-site technical team	South America, Southeast Asia,etc
One-stop service	Spot welding machine / Seam welding machine / Welding robot /Kickless Cables / Controller / Spring Balancer / Welding Electrode Cap Tip
Models Item	DN3-35	DN3-25	DN3-16
Rated Power at 50%	35KVA	25KVA	16KVA
Rated Primary Power	380V	380V	380V
Rated Primary Current	92A	66A	42.1A
Rated Duty Cycle	10%	10%	10%
Model of the Controller	TCW-32H	TCW-32H	TCW-32H
Adjustment Rated	1	4	4
Arms Length	400mm	400mm	400mm
	280mm	280mm	280mm
Max. Strength at Electrodes	1400N	1400N	860N
Max. Welding Capacity	3+3mm	2.5+2.5mm	2+2mm
Cooling Way	MainTansiomer: Air Electrode: Water	MainTansiomer: Air Electrode: Water	MainTansiomer: Air Electrode: Water

Images:

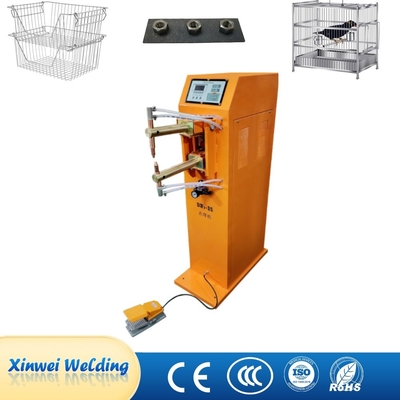

Soldador De Punto Resistance Metal Cnc Pneumatic Spot Welding Machine For Metal 0

Application:

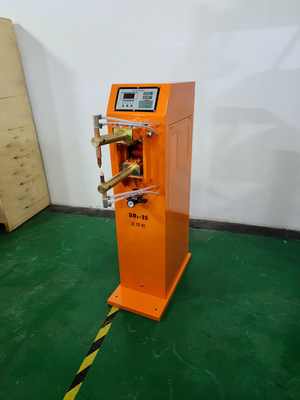

Soldador De Punto Resistance Metal Cnc Pneumatic Spot Welding Machine For Metal 1

FAQ:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
