Manual Spot Welding Machine
Created with Pixso.

Small Size Industrial Pneumatic Ac Spot Welder Welding Machine 25 Kva For Steel

Small Size Industrial Pneumatic Ac Spot Welder Welding Machine 25 Kva For Steel

Brand Name: XWH
Model Number: DN3-16, DN3-25, DN3-35
MOQ: 1
Price: USD1000-USD1200
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/month
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Pneumatic Spot Welder
Application:
Sheet Spot Welding
Function:
Metal Spot Welding Machine
Machine Type:
Pedal Welding Maachine
Keyword:
Spot Welding Machine Dn 25
Welding Material:
Alloy Metal Aluminum Stainless Steel
Feature:
Easy Operation
Warranty:
1 Year Guarantee
After Warranty Service:
Video Technical Support, Online Support And Spare Parts
After-sales Service Provided:
Free Spare Parts, Field Installation, Commissioning And Training
Packaging Details:
Wooden Case
Supply Ability:
500 sets/month
Highlight:

Small Size Pneumatic Spot Welder

,

Steel Pneumatic Spot Welder

,

25 Kva Pneumatic Spot Welder

Product Description

Small Size Industrial Pneumatic Ac Spot Welder Welding Machine 25 Kva For Steel





Product Introduction:



Pneumatic spot welder machine is a spot welding equipment that relies on a compressed air source to provide welding pressure. Its main feature is that the welding cylinder on the pressurization mechanism generally acts vertically on the spot welding head, providing stable pressure for welding.







Advantages:



1.The pneumatic spot welding machine is controlled by microcomputer circuit which has a high accuracy.



2. The fine adjustment of welding current can be controlled between 20% to100%.



3. The transmission rod is operated by foot, which is beautiful and durable while using.



4. The welding time is adjustable and the welding repeatability is excellent.



5. Suitable for welding wire crafts, daily hardware, furniture lighting, box and sheet metal parts.







Technical Parameters:



Product Welding Video
We provide technical guidance videos, product welding videos, and samples please contact us.
Overseas on-site technical team South America, Southeast Asia,etc
One-stop service Spot welding machine / Seam welding machine / Welding robot /Kickless Cables / Controller / Spring Balancer / Welding Electrode Cap Tip
Models
Item
DN3-35
DN3-25 DN3-16
Rated Power at 50%
35KVA
25KVA 16KVA
Rated Primary Power
380V 380V 380V
Rated Primary Current
92A 66A 42.1A
Rated Duty Cycle 10%
10%
10%
Model of the Controller
TCW-32H
TCW-32H TCW-32H
Adjustment Rated
1
4 4
Arms Length

 400mm

400mm 400mm
280mm 280mm 280mm
Max. Strength at Electrodes 1400N 1400N 860N
Max. Welding Capacity
3+3mm
2.5+2.5mm
2+2mm
Cooling Way
MainTansiomer: Air
Electrode: Water
MainTansiomer: Air
Electrode: Water
MainTansiomer: Air
Electrode: Water







Key Points For Use:



1. Before welding, spot weld the shell and connect the bottom wire, clean the electrode contacts, and remove the rust spots on the welded parts.



2. During spot welding, the electrode should first compact the weldment and then be electrified for welding, otherwise electric sparks may damage the surface of the weldment.



3. The appropriate current and time should be adjusted according to the thickness of the weldment to ensure full penetration of the weldment (do not fluctuate the current adjustment switch or time relay simultaneously during spot welding).



4. The required electrode electrical pressure and travel switch position can be adjusted on the top screw.







Images:

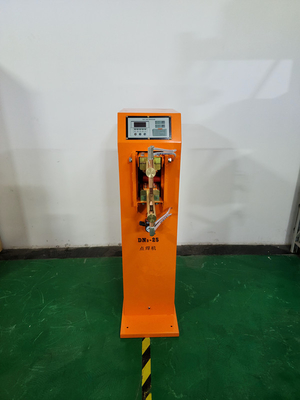

Small Size Industrial Pneumatic Ac Spot Welder Welding Machine 25 Kva For Steel 0

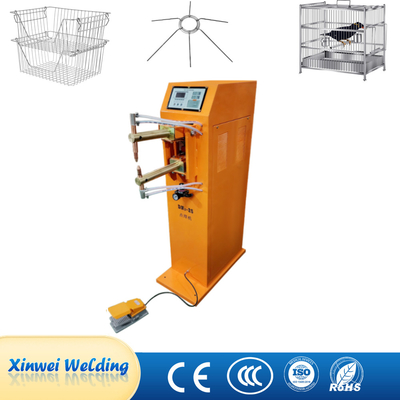

Application:





Small Size Industrial Pneumatic Ac Spot Welder Welding Machine 25 Kva For Steel 1







FAQ:



1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.


8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
