Stainless Steel Cage Shelf Wire Mesh Foot Row Welder Rowing Spot Welding Machine
Brand Name:
XWH
Model Number:
DN-10, DN-16, DN-25, DN-35
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
1
Price:
USD600-USD700
Supply Ability:
500 sets/month
Delivery Time:
15 working days
Inquiry Now
Get A Quote
Specifications
Highlight Features
Row Welder Spot Welding Machine
,Wire Mesh Foot Spot Welding Machine
,Stainless Steel Spot Welding Machine
Product Name:
Stainless Steel Cage Shelf Wire Mesh Foot Row Welder Rowing Spot Welding Machine
Application:
Wire Shelf Spot Welding Machine
Machine Type:
Wire Mesh Spot Welding Machine
Keyword:
Cage Welding Machine
Function:
Copper Wire Aluminum Wire Welding
After Warranty Service:
Video Technical Support, Online Support And Spare Parts
After-sales Service Provided:
Free Spare Parts, Field Installation, Commissioning And Training
Certification:
CE
Product Description
Stainless Steel Cage Shelf Wire Mesh Foot Row Welder Rowing Spot Welding Machine
Product Introduction:
The wire rack shelf spot welding machine is a double-sided double point overcurrent resiatance welding machine, which is more suitable for wire, mesh, basket, sheet metal, medium carbon steel, low-carbon steel, stainless steel, titanium alloy, galvanized plate, aluminum alloy, High efficiency and high-quality welding of metal cabinets and other hardware handicrafts.
Technical Parameters:
|
Models/Item
|
DN-35 | DN-25 | DN-16 | DN-10 |
| Rated Power at 50% | 35KVA | 25KVA | 16KVA | 10KVA |
| Rated Primary Power | 380V | 380V | 380V | 380V |
| Rated Primary Current | 92A | 66A | 42.1A | 26.3A |
| Rated Duty Cycle | 10% | 10% | 10% | 10% |
| Secondary Unload Voltage | 2.6～4.2V | 2.3～3.55V | 1.98～3.01V | 1.65～2.4V |
| Adjustment Rated | 4 | 4 | 4 | 4 |
| Welding Time Adjustment | 0～9.99s |
0～9.99s
|
0～9.99s | 0～9.99s |
| Arms Length | 280mm | 280mm | 280mm | 260mm |
| Max. Welding Capacity | 3+3mm | 2.5+2.5mm | 2+2mm | 1.5+1.5mm |
| Cooling Ways |
Main Transformer: Air air cooling Electrode: Water cooling
|
|||
Features:
1) The main transformer is made of imported cold-rolled silicon steel, less power loss and low no-load current.
2) Pivoting arm, pedal, spring press structure, easy to operate, The structure in graceful form, durable and cheap.
3) In main circuit adopts thyristors as non-contactor switch, quick switch off and reliable. Welding time can be controlled and adjusted precisely, good welding repeatability, easy to maintenance, can realize high quality weld.
4) Adopt the digital control system; it is widely used in mild steel, wire, stainless steel plate and so on.
General Structures:

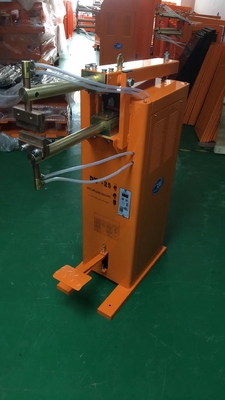

Detail Images:

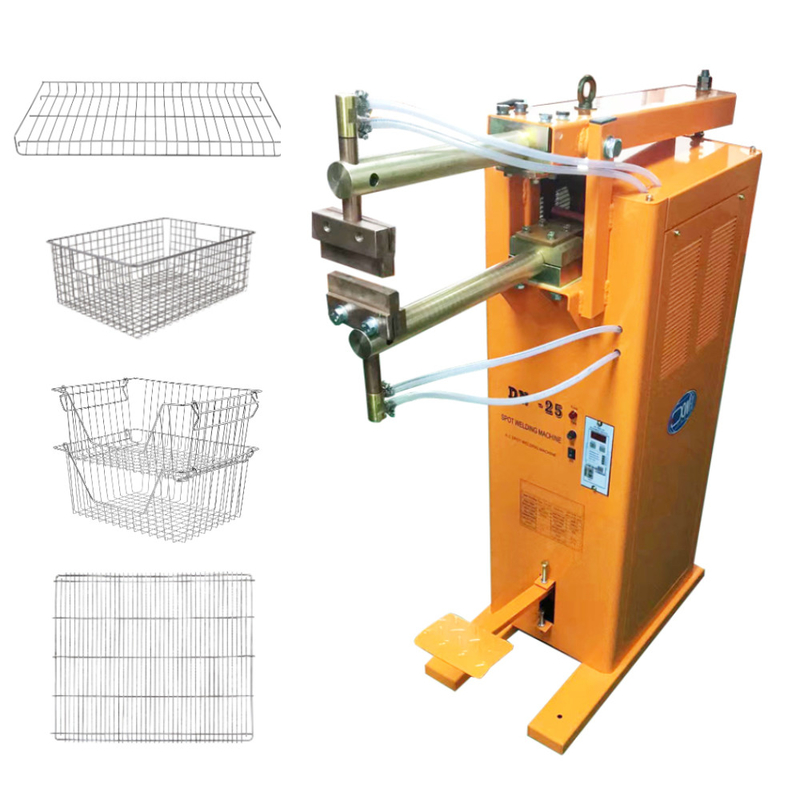

Standard Type: general structures with pointed electrode, can weld welding wire crafts, daily hardware, furniture lighting, box and sheet metal parts.
Customized Type:customized with flat electrode, a wider and longer contact surface, suitable for welding wire meshes.
Application:
Please note: the welding machine can be custom-made according to your requirements.
Frequently Asked Questions:
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
