Resistance Steel Metal Wire Shelf Row Rowing Pedal Point Spot Welding Machine

Resistance Steel Metal Wire Shelf Row Rowing Pedal Point Spot Welding Machine

Brand Name:	XWH
Model Number:	DN-10, DN-16, DN-25, DN-35
MOQ:	1
Price:	USD650-USD750
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Resistance Steel Metal Wire Shelf Row Rowing Pedal Point Spot Welding Machine

Application:

Wire Mesh Spot Welding Machine

Machine Type:

Grill Cage Row Welding Machine

Keyword:

Cage Welding Machine

Function:

Wire Mesh Row Welder

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Certification:

Packaging Details:

Wooden Case

Supply Ability:

500 sets/month

Highlight:

Metal Wire Shelf Spot Welding Machine

Resistance Steel Spot Welding Machine

Spot Welding Machine

Product Description

Resistance Steel Metal Wire Shelf Row Rowing Pedal Point Spot Welding Machine

Product Introduction:

The wire mesh row spot welding machine is a standard pedal spot welder with a customized welding electrod. Stanard pedal spot welding machine is suitable for carbon steel, low-carbon steel, stainless steel, titanium alloy, galvanized plate, aluminum alloy and etc...And with a customized welding electrode, the pedal spot welder is more suitable for wires, meshes and baskets.

Technical Parameters:

Model/Item	Unit	FN-80-H	FN-100-H	FN-160-H	FN-100-E	FN-160-E
Rated power	KVA	80	100	160	100	160
Voltage input	V	380	380	380	380	380
Frequency	Hz	50	50	50	50	50
Max. short circuit current	KA	26	30	40	30	40
Working stroke	mm	100	100	100	100	100
Welding efficiency	m/min	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9
Max. force	N	6000	6000	7800	6000	7800
Max. welding capacity	mm	1.2+1.2	1.5+1.5	2.0+2.0	1.5+1.5	2.0+2.0
Motor Power	W	550	750	750	750	400
Cooling consumption	L/min	8	8	10	8	10
Weight	Kg	380	510	630	530	700

Features:

1)Pedal-level type spring-pressing strcture makes the machine easy to operate and convenient to maintain.

2) Welding time can be adjusted based on actual needs, and as a result, the welding also can be well repeated.

3)Widely used in automobile, aviation, construction, machinery, metal products, electrical switches and so on.

4)Thyristor controlled turn on or off electric circuit ensure the machine be turned off quickly and be more reliable.

5)Widely used for welding of low carbon steel, wire, stainless steel plate etc.

General Structures:

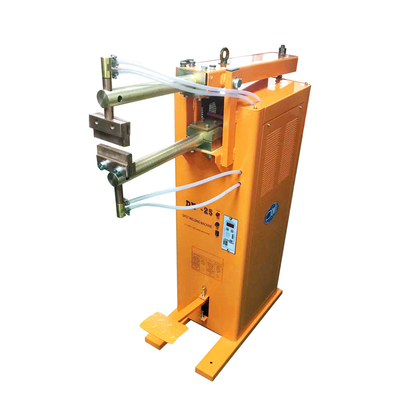

Resistance Steel Metal Wire Shelf Row Rowing Pedal Point Spot Welding Machine 0

Detail Images:

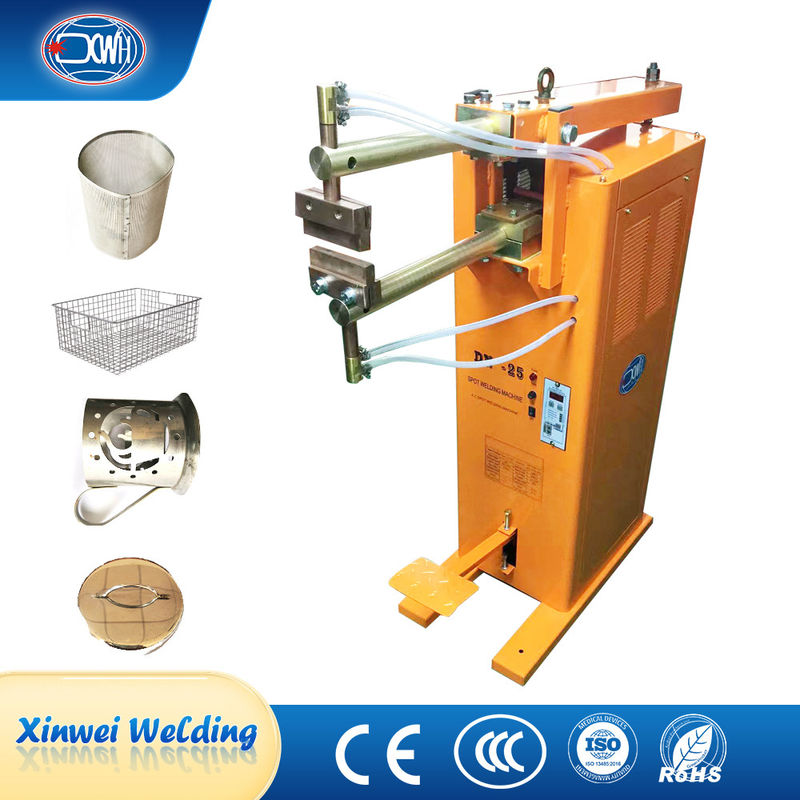

Resistance Steel Metal Wire Shelf Row Rowing Pedal Point Spot Welding Machine 1

Standard Type: general structures with a pointed welding electrode, widely used in construction, machinery, metal products, electrical switches.

Customized Type: customized with flat welding electrode, a wider and longer contact surface, suitable for welding wire meshes.

Application:

Resistance Steel Metal Wire Shelf Row Rowing Pedal Point Spot Welding Machine 3

Please note: the welding machine can be custom-made according to your requirements.

Frequently Asked Questions:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
