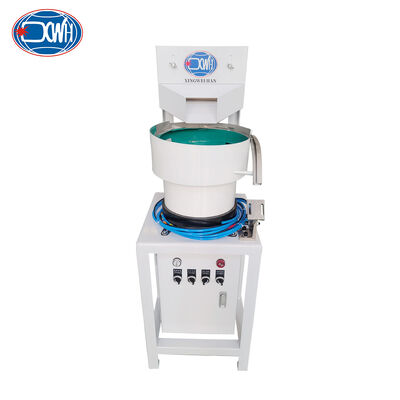

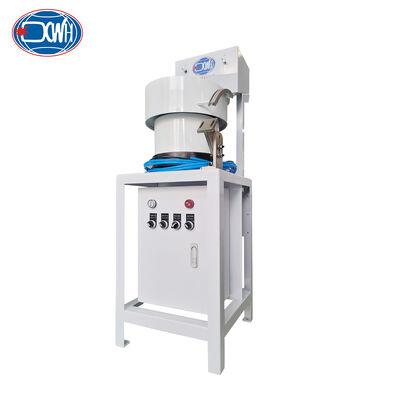

Vibratory Copper Parts Screw Nut Bowl Feeder For Stationary Spot Welding Machine

Vibratory Copper Parts Screw Nut Bowl Feeder For Stationary Spot Welding Machine

Product Introduction:

Nut conveyor is a powerful tool to eliminate the "seven major wastes". It directly eliminates the waste of actions (workers searching for and retrieving nuts), waiting waste (faster assembly pace), waste of defective products (avoiding missed or wrong ones), and indirectly reduces the inventory of work in progress. By introducing this device, enterprises can achieve standardization and rhythm of production processes, significantly improving overall equipment efficiency (OEE), and is an important step towards achieving digitalization and transparency in production management.

Features:

Technical Parameters:

General Structures:

Detailed Images:

Transportation Pipeline: It is usually a flexible hose made of polyurethane or nylon material, with quick couplings at both ends. As an exclusive track connecting the host and the workstation. After the separated individual nuts enter the pipeline, they will be pushed by compressed air (blowing type) or mechanical mechanism (pushing type) that opens instantly, flying at high speed inside the pipeline and reaching the feeding nozzle at the end. Its flexibility ensures that it can bend freely with the robotic arm or moving mechanism.

Control System: The core of the system (PLC or embedded microprocessor) is the central nervous system of the device. Its workflow begins with receiving sensor and master control instructions, and then precisely controlling the actions of all executing components (such as vibration discs, vibrators, separation mechanisms, and air valves). In addition, the core continuously monitors the status, diagnoses faults such as material shortage, blockage, and timeout, and outputs diagnostic results through the sound and light alarm system.

Direct Vibration Feeder: A linear vibration track, usually separated from but tightly connected to the vibration disc base. It serves as a 'buffer and acceleration channel'. Receive the directional nut gushing out from the outlet of the vibrating disc, and through its own linear vibration, smoothly and continuously transport the nut to the next stage - the separation mechanism. It can effectively eliminate congestion at the outlet of the vibrating disc and provide stable and uniform nut flow for separation.

Pneumatic System: Including gas source interface, filter, pressure reducing valve, oil mist device (triple piece), and solenoid valve. The 'power muscles' that make up the device. Provide clean, dry, and pressure stable compressed air. This airflow is both the "power source" that drives the nut to move at high speed inside the pipeline, and may also be the "driver" that drives the cylinder type separation mechanism.

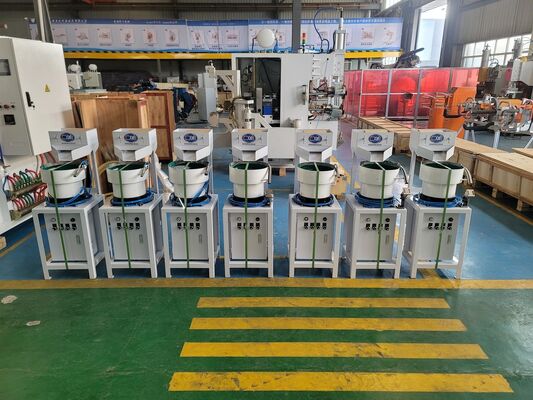

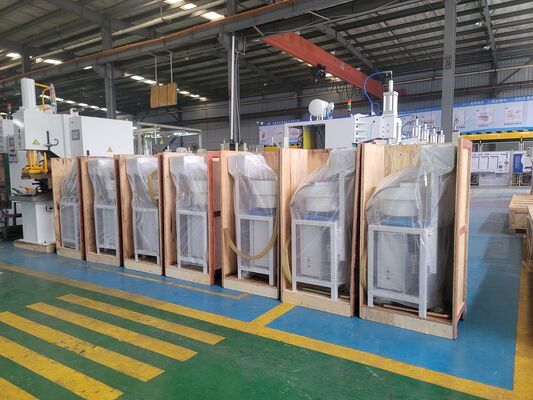

Scene Images:

Application:

Supporting Point Projection Welding Machines:

Double Heads Capacitor Energy Storage Point Projection Welding Machine

FAQ:
