Lever Pedal Structure Foot Operated Spot Welder For Metal Sheets And Wires Welding

Lever Pedal Structure Foot Operated Spot Welder For Metal Sheets And Wires Welding

Brand Name:	XWH
Model Number:	DN-10, DN-16, DN-25, DN-35
MOQ:	1
Price:	USD600-USD700
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Resistance Spot Welding Machine

Application:

Iron Mesh Welding

Machine Type:

Manual Welding

Keyword:

Industrial Spot Welder

Function:

Resistance Spot Projection Welding

After Warranty Service:

Video Technical Support, Online Support And Spare Parts

After-sales Service Provided:

Free Spare Parts, Field Installation, Commissioning And Training

Certification:

Packaging Details:

Wooden Case

Supply Ability:

500 sets/month

Highlight:

foot operated spot welder

lever pedal spot welding machine

metal sheet wire spot welder

Product Description

Lever Pedal Structure Foot Operated Spot Welder For Metal Sheets And Wires Welding

Product Introduction:

Are you still troubled by welding joints with special shapes? Our foot operated spot welding machine provides you with precise answers! In addition to standard welding heads, we can customize chromium zirconium copper or tungsten anisotropic welding heads according to your needs, facing special welding challenges. The whole machine weighs as light as less than 100 kilograms and has strong adaptability to the site. The traditional pedal lever operation is easy to maintain and does not require complex training to get started. Whether it is low-carbon steel, stainless steel, or various types of wires, adjustable parameters and consistent quality welding effects can be achieved. Choosing it means choosing efficiency and peace of mind.

Technical Parameters:

Models/Item	DN-35	DN-25	DN-16	DN-10
Rated Power at 50%	35KVA	25KVA	16KVA	10KVA
Rated Primary Power	380V	380V	380V	380V
Rated Primary Current	92A	66A	42.1A	26.3A
Rated Duty Cycle	10%	10%	10%	10%
Secondary Unload Voltage	2.6～4.2V	2.3～3.55V	1.98～3.01V	1.65～2.4V
Adjustment Rated	4	4	4	4
Welding Time Adjustment	0～9.99s	0～9.99s	0～9.99s	0～9.99s
Arms Length	280mm	280mm	280mm	260mm
Max. Welding Capacity	3+3mm	2.5+2.5mm	2+2mm	1.5+1.5mm
Cooling Ways	Main Transformer: Air air cooling Electrode: Water cooling

Features:

1) The main transformer is made of imported cold-rolled silicon steel, less power loss and low no-load current.

2) Pivoting arm, pedal, spring press structure, easy to operate, The structure in graceful form, durable and cheap.

3) In main circuit adopts thyristors as non-contactor switch, quick switch off and reliable. Welding time can be controlled and adjusted precisely, good welding repeatability, easy to maintenance, can realize high quality weld.

4) Adopt the digital control system; it is widely used in mild steel, wire, stainless steel plate and so on.

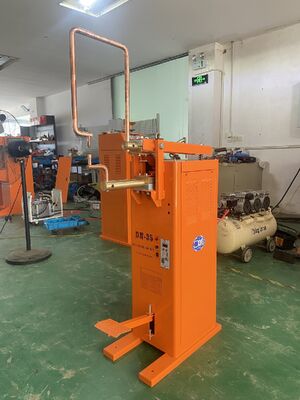

General Structures:

Lever Pedal Structure Foot Operated Spot Welder For Metal Sheets And Wires Welding 0

Customized Service:

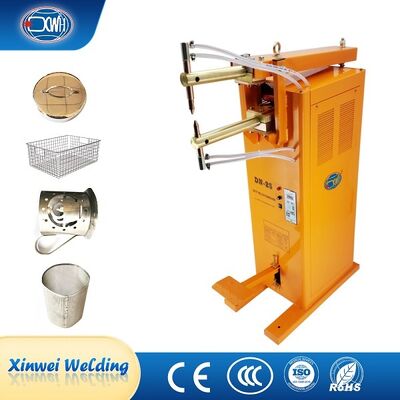

Standard Type: General structures with pointed electrode, designed specifically for welding thin plates and metal wires such as low-carbon steel and stainless steel. It is mainly used in the processing, manufacturing, and maintenance of hardware products, metal mesh baskets, sheet metal chassis, and other products. It is an ideal basic equipment for workshops and small processing plants.

Lever Pedal Structure Foot Operated Spot Welder For Metal Sheets And Wires Welding 2

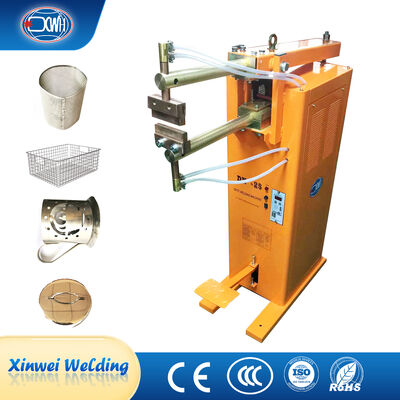

Customized Type: Its welding arm can be customized and lengthened or equipped with a dedicated welding head according to your specific needs, making it easy to handle welding of products such as metal wire mesh and steel mesh. In addition, the welding arm material is available in high conductivity chromium zirconium copper or high-temperature resistant tungsten materials, which can even meet the welding requirements of special materials such as copper. It is a truly economical and practical welding machine designed for diverse scenarios.

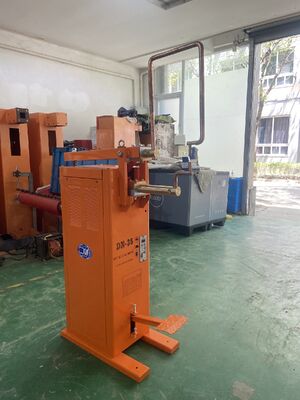

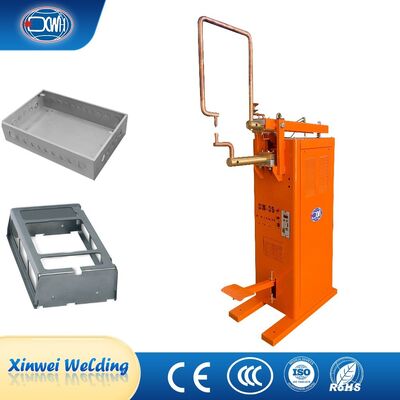

Application:

Lever Pedal Structure Foot Operated Spot Welder For Metal Sheets And Wires Welding 4

Lever Pedal Structure Foot Operated Spot Welder For Metal Sheets And Wires Welding 5

Please note: the welding machine can be custom-made according to your requirements.

Frequently Asked Questions:

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
