| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 set |
| Price: | USD3500-USD5500 |
| Packaging Details: | Wooden case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets / month |
| Product Name: | Resistance Pneumatic Spot Welding Machine | Rated Capacity: | 35KVA,45KVA,65KVA, Customized |
|---|---|---|---|
| Rated Duty Cycle: | 50% | Warranty: | 1year |
| Frequency: | 50HZ/60HZ | Voltage: | 220V/380V/415V/440V |
| Max Thcikness: | 5+5mm | Weight: | 250KG |

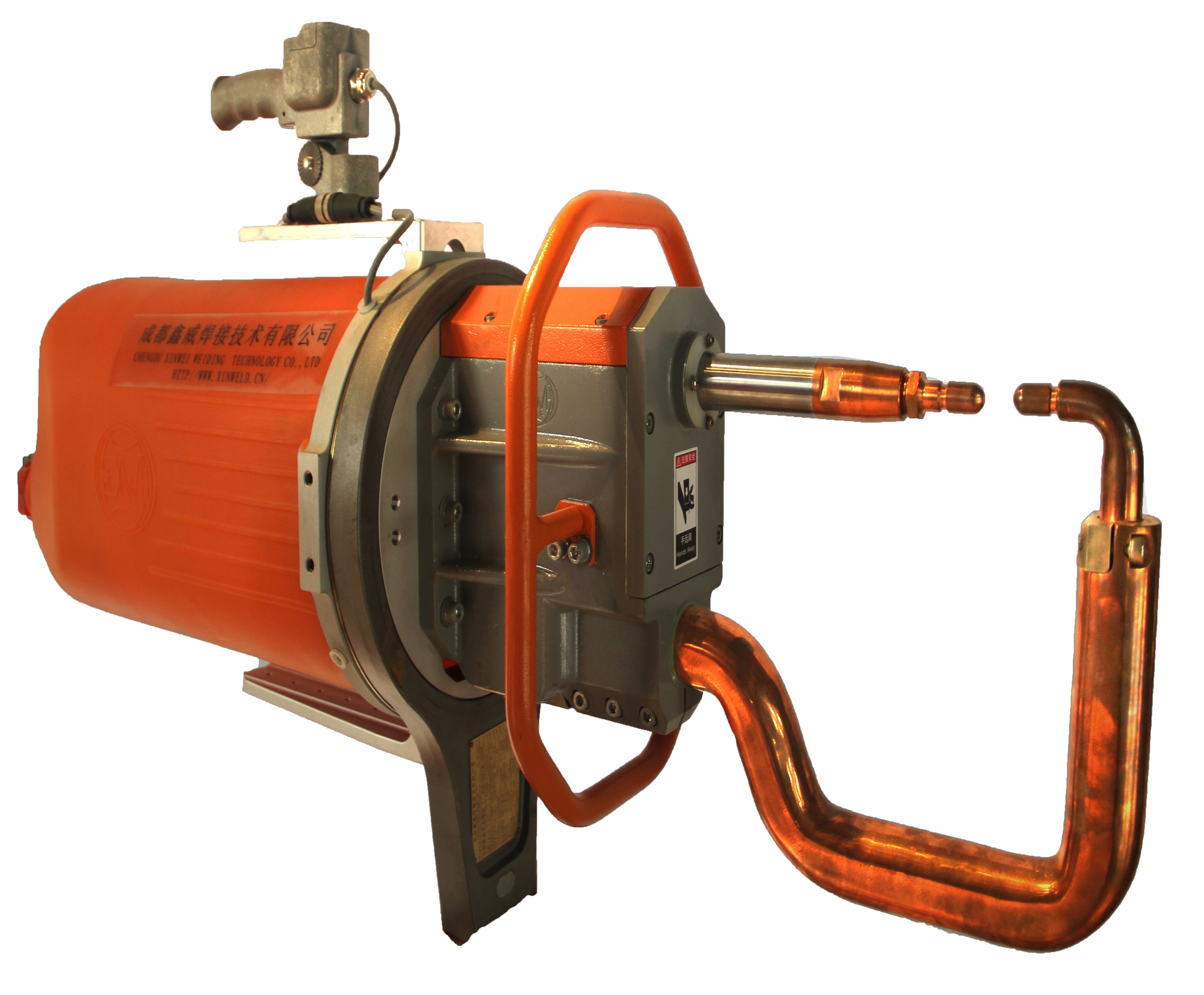

IT Suspended Manual Resistance Pneumatic Spot Welding Machine
The spot welder are used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, it can also weld stainless steel, coated steel,security doors, cabinets.
Meanwhile the spot welding machine can be custom-made according to your requirement.Portable Spot Welder are used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, it can also weld stainless steel,coated steel,security doors, cabinets.
|
Models Item
|
DN2-35X
|
DN2-35C
|
DN2-45X
|
DN2-45C
|
DN2-65X
|
DN2-65C
|
|
Power at 50% KVA
|
35
|
35
|
45
|
45
|
65
|
65
|
|
Maximum short circuit current KA
|
15
|
15
|
16
|
16
|
46
|
46
|
|
Secondary unload voltage V
|
5.7
|
5.7
|
6.3
|
6.3
|
8
|
8
|
|
Voltage at 50Hz/60Hz V
|
380
|
380
|
380
|
380
|
380
|
380
|
|
Distance between the arms mm
|
120-280
|
100
|
120-330
|
100
|
160-430
|
100
|
|
Max. strength at electrodes N
|
3500
|
3500
|
3500
|
3500
|
3500
|
3500
|
|
Working stroke mm
|
15-45
|
15-25
|
15-45
|
15-25
|
15-45
|
15-25
|
|
Max. stroke mm
|
50-120
|
60/100/140
|
50-120
|
60/100/140
|
50-120
|
60/100/140
|
|
Arm length mm
|
240-600
|
200-500
|
300-8000
|
200-500
|
400-1100
|
200-500
|
|
Compressed Air supply MPa
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Max.thickness of mild steel sheet with min. length s arm mm
|
3+3
|
3+3
|
4+4
|
4 +4
|
5+5
|
5+5
|
|
Max Welding Thickness With 500mm arms mm
|
2+2
|
2+2
|
3+3
|
3+3
|
3+3
|
3+3
|
|
With maximum length arms mm
|
1.2+2
|
1.2+1.2
|
2+2
|
1.8+1.8
|
2.0+2.0
|
2.0+2.0
|
|
Cross wire maximum mm
|
14+14
|
14+14
|
16+16
|
16+16
|
20+20
|
20+20
|
|
Cooling water pressure drop MPa
|
0.05
|
0.05
|
0.05
|
0.05
|
0.05
|
0.05
|
|
Cooling water flow L/min
|
12
|
12
|
12
|
12
|
12
|
12
|
|
Cooling water pressure MPa
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
|
Cooling water flow L/min
|
4
|
4
|
4
|
4
|
4
|
4
|
