| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 set |
| Price: | $2,000.00 - $5,000.00 |
| Packaging Details: | Wooden case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets / month |
| Product Name: | Manufacturer Automatic Resistance Portable Hand Held Spot Welding Machine | Voltage: | 220V/380V/415V/440V |
|---|---|---|---|
| Rated Capacity: | 35KVA,45KVA,65KVA, Customized | Rated Duty Cycle: | 50% |
| Warranty: | 50HZ/60HZ | Dimensions: | 1.7m*0.7m*0.7 |
| Machine Type: | Resistance Welding Machine |

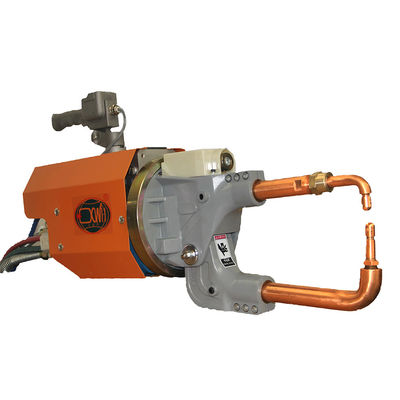

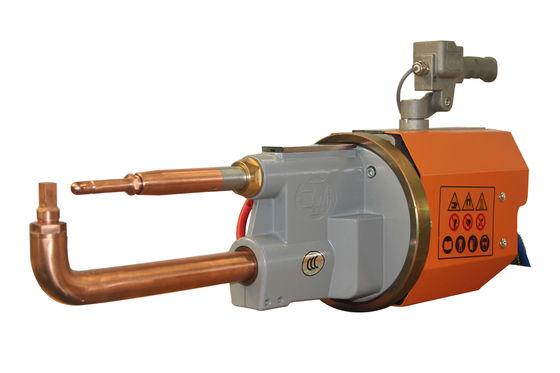

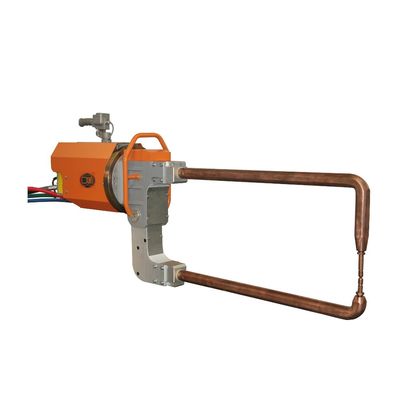

Manufacturer Automatic Resistance Portable Hand Held Spot Welding Machine
|
Product Welding Video
|
We provide technical guidance videos, product welding videos, and samples please contact us.
|
|||||
|
Overseas on-site technical team
|
South America, Southeast Asia,etc
|
|||||
|
One-stop service
|
MIG / TIG / Spot welding machine / Seam welding machine / Welding robot / Suspended Transmission System / Controller / Spring Balancer / Electrode
|
|||||
|
Model Item
|
DN2-35X
|
DN2-35C
|
DN2-45X
|
DN2-45C
|
DN2-65X
|
DN2-65C
|
|
Power at 50% KVA
|
35
|
35
|
45
|
45
|
65
|
65
|
|
Maximum short circuit current KA
|
15
|
15
|
16
|
16
|
46
|
46
|
|
Secondary unload voltage V
|
5.7
|
5.7
|
6.3
|
6.3
|
8
|
8
|
|
Voltage at 50Hz/60Hz V
|
380
|
380
|
380
|
380
|
380
|
380
|
|
Distance between the arms mm
|
120-280
|
100
|
120-330
|
100
|
160-430
|
100
|
|
Max. strength at electrodes
|
3500
|
|||||
|
Working stroke mm
|
15-45
|
15-25
|
15-45
|
15-25
|
15-45
|
15-25
|
|
Max. stroke mm
|
50-120
|
60/100/140
|
50-120
|
60/100/140
|
50-120
|
60/100/140
|
|
Arm length mm
|
240-600
|
200-500
|
300-8000
|
200-500
|
400-1100
|
200-500
|
|
Max.thickness of mild steel sheet with min. length s arm mm
|
3+3
|
3+3
|
4+4
|
4+4
|
5+5
|
5+5
|
|
Max Welding Thickness With 500mm arms mm
|
2+2
|
2+2
|
3+3
|
3+3
|
3+3
|
3+3
|
|
With maximum length arms mm
|
1.2+2
|
1.2+1.2
|
2+2
|
1.8+1.8
|
2.0+2.0
|
2.0+2.0
|
|
Cross wire maximum mm
|
14+14
|
14+14
|
16+16
|
16+16
|
20+20
|
20+20
|
Wooden case is non-fumigation, more convenient for transport
Company Information
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing,marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products.Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.
Certifications
Exhibition Pictures
Service
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on..
Transportation Display
