| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | XW |
| Minimum Order Quantity: | 1 |
| Price: | $2,500.00 - $5,800.00 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 Set/Sets per Month |

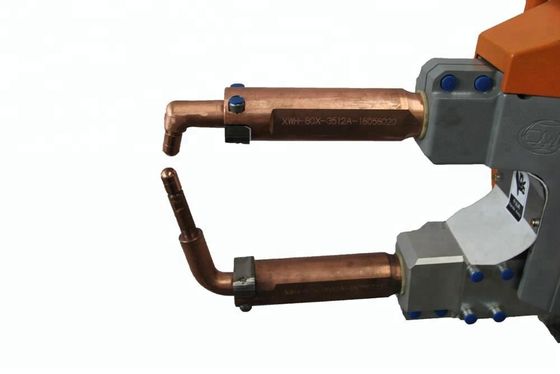

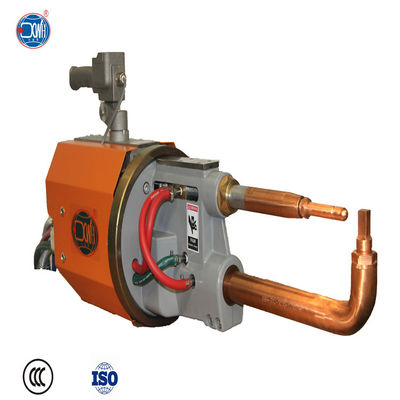

| Product Name: | 35kva Suspended Hand Held Spot Welding Machine | Function: | Spot Welding |
|---|---|---|---|
| Frequency: | 50HZ/60HZ | Max. Welding Thickness:: | 3+3mm |
| Weight: | 60-120KG | Rated Capacity: | 25-63KVA |
| Models | Unit | DN2-35X | DN2-35C | DN2-45X | DN2-45C | DN2-65X | DN2-65C |
| Power at 50% | KVA | 35 | 35 | 45 | 45 | 65 | 65 |
| Maximum short circuit current | KA | 15 | 15 | 16 | 16 | 46 | 46 |
| Secondary unload voltage | V | 5.7 | 5.7 | 6.3 | 6.3 | 8 | 8 |
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM | 120-280 | 100 | 120-330 | 100 | 160-430 | 100 |
| Max. strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max. stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Arm length | MM | 240-600 | 200-500 | 300-8000 | 200-500 | 400-1100 | 200-500 |
| Compressed Air supply | MPa | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
|
Max. thickness of mild steel sheet with Min. length’s arm |
MM |
3+3 |
3+3 |
4+4 |
4+4 |
5+5 |
5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPa | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | L/Min | 12 | 12 | 12 | 12 | 12 |
12 |
Our company is the Chinese market leader in manufacturer of spot welding machine.We supply products and service for major automotive manufacturers, include TOYOTA,HONDA,VW,FORD,HYUNDAI etc.Also supply welding products for OEMs and Tier 1 & 2 companies in the automotive,mass transit,as well as various other industries.
Not only support domestic users,our products are also popular sold to international customer, such as USA,Germany,France, Italy, UK, Spain, Czech Republic, Slovakia, Russia, Poland, Ukraine, Turkey, Mexico, Brazil, India, Thailand, Vietnam, Malaysia.
A: Yes,ISO,CE are available.
A: Usually 3-7 working days.
A: Yes,Equipment offer 1 year warranty.Accessory offer 3 months warranty.
A: EXW,FOB,CFR,CIF,Alibaba trade assurance.
A: Wire transfer(T/T),Western Union,Paypal,Money Gram,Credit Card;
A: Delivery by DHL,FEDEX,UPS,TNT,By Air,By Sea,ARAMEX...
A: Yes,we can produce according to your technical drawing. MOQ:10pcs/each type.
