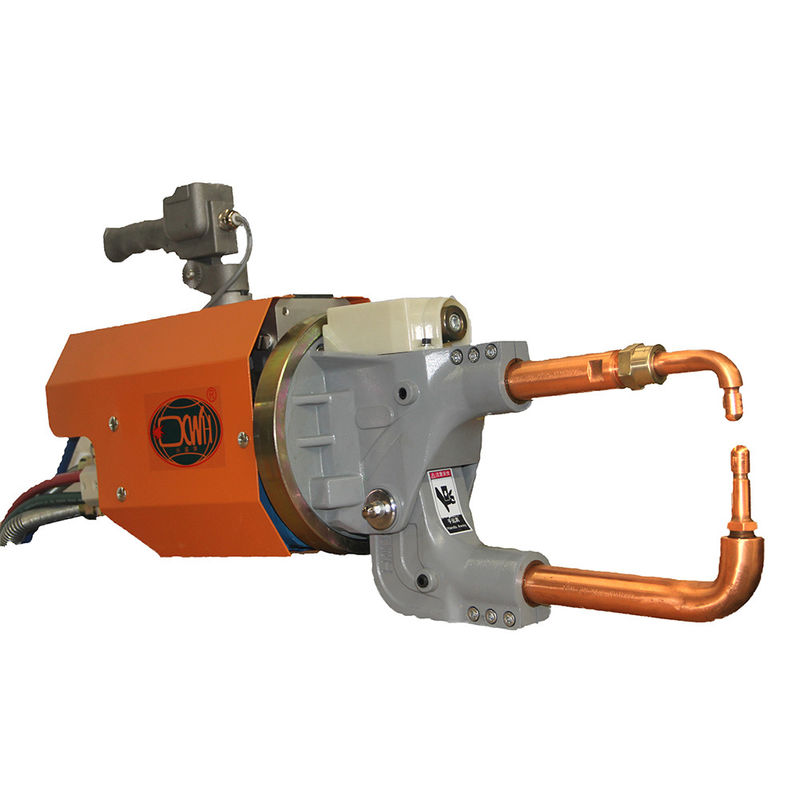

35kva 45kva 65kva cnc point handheld suspension spot welding machine for stainless steel

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DN2
Minimum Order Quantity: 1 Set
Price: $3,000.00-$5,000.00
Packaging Details: wooden Case
Delivery Time: 15 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Week
Detail Information
Product Name: 220V 380V Portable Suspended Spot Welding Gun Machine Type: Auto Repair Tools
Rated Capacity: 31KVA After Warranty Service:: Video Technical Support, Online Support, Spare Parts, Field Maint
Weight (KG): 60 KG Max. Welding Thickness: 3.5+3.5mm
Rated Duty Cycle: 50% Voltage: 380V

Product Description

35kva 45kva 65kva cnc point handheld suspension spot welding machine for stainless steel



1. Light weight, easy to operate and save electricity
2. Compact structure and easy maintenance
3. The turntable is equipped with bearings and rotates 360°
4. Customized welding tongs, the longest welding arm is 1300mm and the shortest is 220mm
5. Less wearing parts and high cost performance
6. The structure of the transformer is the same as that of Bosch. The transformer is equipped with temperature control protection. Water cooling, fast heat dissipation. Long sustainable working time (24h work)
7. Different specifications can be set (workpieces with different thicknesses can be welded) welding thickness 0.3mm+0.3mm∽5+5mm
8. Stable control functions
9. The cylinder is a customized pressurized cylinder, the brand is (SMC)
10. Balancer with self-locking function
11. The delivery period is stable and timely


35kva 45kva 65kva cnc point handheld suspension spot welding machine for stainless steel 0

X type C type



  • features



Item/models Unit DN2-35X DN2-35C DN2-45X DN2-45C DN2-65X DN2-65C
power at 50% KVA 35 35 45 45 65 65
Maximum short circuit current KVA 15 15 16 16 46 46
Secondary unload voltage V 5.7 5.7 6.3 6.3 8 8
Voltage at 50Hz/60Hz V 380 380 380 380 380 380
Distance between the arms MM

120-280



100 120-330 100 160-430 100
Max.strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Arm length MM 240-600 200-500 300-800 200-500 400-1100 200-500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow l/MIN 12 12 12 12 12 12





  • Main Characteristics



1. High efficiency resistance welding machine.

2. Easy to install and simple to operate, saves energy.

3. Nimble and 360° rotational use. Stays at any angle any and position.

4. Small, light, high power output. Smallest welder in its power class.

5. Electrode and welding arm are all water cooled so that welding quality can be guaranteed.

6. Gun body is cast with special aluminum, light and ductile

7. The electrode arm is made of copper alloy with good flexional strength, high conductivity.

8. High production rate, sufficient supply of spare parts and components.





  • Parts

DN2 Proffessionally Designed Portable Spot Welding Machine

Most Popular 220V 380V Portable Suspended Spot Welding Gun

X Type



  • Specifics

Most Popular 220V 380V Portable Suspended Spot Welding Gun

  • Application



Most Popular 220V 380V Portable Suspended Spot Welding Gun



  • Important equipment
  •

    • Workflow



    Most Popular 220V 380V Portable Suspended Spot Welding Gun



    1.Please give us your specific requirement,include the material and thickness or 3D drawing of workpiece or anyelse.

    2.Technicist makes 3D modeling and select suitable welding machine and shape of clamp .We should keep contact at this point.

    3.Building the cooperation relations and signing a contact. Wewill confirm drawing with you in one day or two days.

    4.We confirm the accurancy of contract finaly,then we can produce welding machine.
