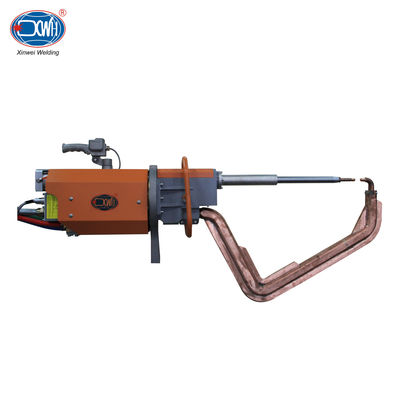

XWH 35KVA customized hanging long arm portable spot welding machine for wire

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DN2
Minimum Order Quantity: 1 Set
Price: $3,000.00-$5,000.00
Packaging Details: wooden Case
Delivery Time: 15 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Week
Detail Information
Product Name: 220V 380V Portable Suspended Spot Welding Gun Machine Type: Auto Repair Tools
Rated Capacity: 31KVA After Warranty Service:: Video Technical Support, Online Support, Spare Parts, Field Maint
Weight (KG): 60 KG Max. Welding Thickness: 3.5+3.5mm
Rated Duty Cycle: 50% Voltage: 380V

Product Description

220V 380V Portable Suspended Spot Welding Gun


XWH 35KVA customized hanging long arm portable spot welding machine for wire 0

X type C type



  • features



Item/models Unit DN2-35X DN2-35C DN2-45X DN2-45C DN2-65X DN2-65C
power at 50% KVA 35 35 45 45 65 65
Maximum short circuit current KVA 15 15 16 16 46 46
Secondary unload voltage V 5.7 5.7 6.3 6.3 8 8
Voltage at 50Hz/60Hz V 380 380 380 380 380 380
Distance between the arms MM

120-280



100 120-330 100 160-430 100
Max.strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Arm length MM 240-600 200-500 300-800 200-500 400-1100 200-500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow l/MIN 12 12 12 12 12 12



The suspension spot welding machine is composed of welding tongs, welding machine transformer, welding machine controller, water cooling system, pneumatic pressure system, suspension device and other parts. The electrode arm of the spot welding machine adopts chromium-zirconium copper (CuCrZr-1), which ensures the stability of the welding performance, the service life of the welding machine and the strength of the electrode arm.









  • Parts

DN2 Proffessionally Designed Portable Spot Welding Machine

Most Popular 220V 380V Portable Suspended Spot Welding Gun

X Type



  • Specifics

Most Popular 220V 380V Portable Suspended Spot Welding Gun

  • Application



Most Popular 220V 380V Portable Suspended Spot Welding Gun



  • Important equipment
  •

    • Workflow



    Most Popular 220V 380V Portable Suspended Spot Welding Gun



    1.Please give us your specific requirement,include the material and thickness or 3D drawing of workpiece or anyelse.

    2.Technicist makes 3D modeling and select suitable welding machine and shape of clamp .We should keep contact at this point.

    3.Building the cooperation relations and signing a contact. Wewill confirm drawing with you in one day or two days.

    4.We confirm the accurancy of contract finaly,then we can produce welding machine.
