Portable Car Auto Carbon Body Dc spot Welder Automated Welding Machine

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DN2
Minimum Order Quantity: 1 Set
Price: $3,000.00-$5,000.00
Packaging Details: wooden Case
Delivery Time: 15 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Week
Detail Information
Product Name: 220V 380V Portable Suspended Spot Welding Gun Machine Type: Auto Repair Tools
Rated Capacity: 31KVA After Warranty Service:: Video Technical Support, Online Support, Spare Parts, Field Maint
Weight (KG): 60 KG Max. Welding Thickness: 3.5+3.5mm
Rated Duty Cycle: 50% Voltage: 380V

Product Description

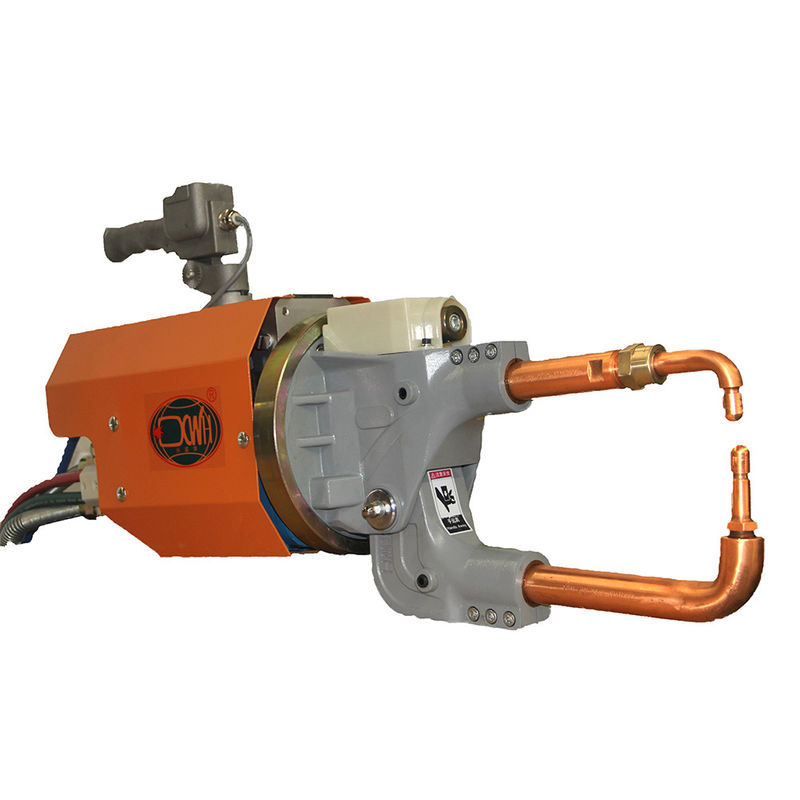

220V 380V Portable Suspended Spot Welding Gun


Portable Car Auto Carbon Body Dc spot Welder Automated Welding Machine 0

X type C type



  • features



Item/models Unit DN2-35X DN2-35C DN2-45X DN2-45C DN2-65X DN2-65C
power at 50% KVA 35 35 45 45 65 65
Maximum short circuit current KVA 15 15 16 16 46 46
Secondary unload voltage V 5.7 5.7 6.3 6.3 8 8
Voltage at 50Hz/60Hz V 380 380 380 380 380 380
Distance between the arms MM

120-280



100 120-330 100 160-430 100
Max.strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Arm length MM 240-600 200-500 300-800 200-500 400-1100 200-500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow l/MIN 12 12 12 12 12 12







1. The current limit of the welding point of the weldment is high, and the hotbed is also high. Therefore, after the welding machine controller controls the energization time, the welding point can get a reproducible nugget state, so it can adapt to multiple types of the same or dissimilar metals and Welding of coated steel plates.



2. The suspension spot welding machine adjusts the heat by changing the conduction angle of the thyristor through the welding machine controller, so it is easy to realize mechanization and automation, so it can be matched with a robot for fully automatic welding operation.



3. The split-type suspension spot welding machine is equipped with a suspension device, which can move and rotate in any direction in the X, Y, Z three-dimensional space up, down, left, and right. The operation is extremely light and flexible, and it can realize all positions and all directions. Welding operation.

Most Popular 220V 380V Portable Suspended Spot Welding Gun

X Type



  • Specifics

Most Popular 220V 380V Portable Suspended Spot Welding Gun


Company Information

Most Popular 220V 380V Portable Suspended Spot Welding Gun

ChengDu XinWei Welding Technoloy Co.Ltd is a high tech-corporation of resistance welding machine and relative products integrated with researching , developing, manufacturing, marketing and service.We have 15 years experience in welding technology.In 2008,our output of single product is more than 1000 units.





Most Popular 220V 380V Portable Suspended Spot Welding Gun





This is one of our overseas customers' factories.
