| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 Set |
| Price: | $3,000.00-$5,000.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Week |
| Product Name: | 220V 380V Portable Suspended Spot Welding Gun | Machine Type: | Auto Repair Tools |
|---|---|---|---|
| Rated Capacity: | 31KVA | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maint |
| Weight (KG): | 60 KG | Max. Welding Thickness: | 3.5+3.5mm |
| Rated Duty Cycle: | 50% | Voltage: | 380V |
X type C type
features
| Item/models | Unit | DN2-35X | DN2-35C | DN2-45X | DN2-45C | DN2-65X | DN2-65C |
| power at 50% | KVA | 35 | 35 | 45 | 45 | 65 | 65 |
| Maximum short circuit current | KVA | 15 | 15 | 16 | 16 | 46 | 46 |
| Secondary unload voltage | V | 5.7 | 5.7 | 6.3 | 6.3 | 8 | 8 |
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM |
120-280
|
100 | 120-330 | 100 | 160-430 | 100 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Arm length | MM | 240-600 | 200-500 | 300-800 | 200-500 | 400-1100 | 200-500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 12 | 12 | 12 | 12 | 12 | 12 |
Main Characteristics
1. High efficiency resistance welding machine.
2. Easy to install and simple to operate, saves energy.
3. Nimble and 360° rotational use. Stays at any angle any and position.
4. Small, light, high power output. Smallest welder in its power class.
5. Electrode and welding arm are all water cooled so that welding quality can be guaranteed.
6. Gun body is cast with special aluminum, light and ductile
7. The electrode arm is made of copper alloy with good flexional strength, high conductivity.
8. High production rate, sufficient supply of spare parts and components.
Parts

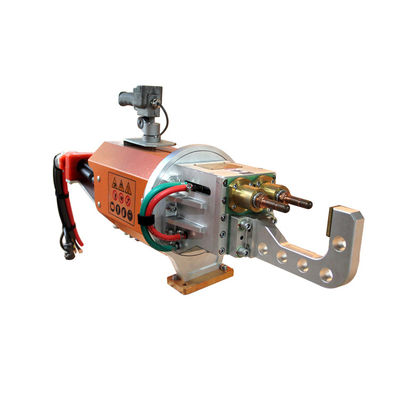

DN2 Proffessionally Designed Portable Spot Welding Machine
X Type
Specifics
Application
Workflow
1.Please give us your specific requirement,include the material and thickness or 3D drawing of workpiece or anyelse.
2.Technicist makes 3D modeling and select suitable welding machine and shape of clamp .We should keep contact at this point.
3.Building the cooperation relations and signing a contact. Wewill confirm drawing with you in one day or two days.
4.We confirm the accurancy of contract finaly,then we can produce welding machine.
This is one of our overseas customers' factories.
Our company is a manufacturer of welding equipment and has the right to run the import/export business.
