Double Head Handheld Portable Doubleside Equipment Gun welder Spot Welding Machine

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DN2
Minimum Order Quantity: 1 Set
Price: $3,000.00-$5,000.00
Packaging Details: wooden Case
Delivery Time: 15 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Week
Detail Information
Product Name: 380V Portable Suspended Spot Welding Gun Machine Type: Auto Repair Tools
Rated Capacity: 31KVA After Warranty Service:: Video Technical Support, Online Support, Spare Parts, Field Maint
Weight (KG): 60 KG Max. Welding Thickness: 3.5+3.5mm
Rated Duty Cycle: 50% Voltage: 380V

Product Description

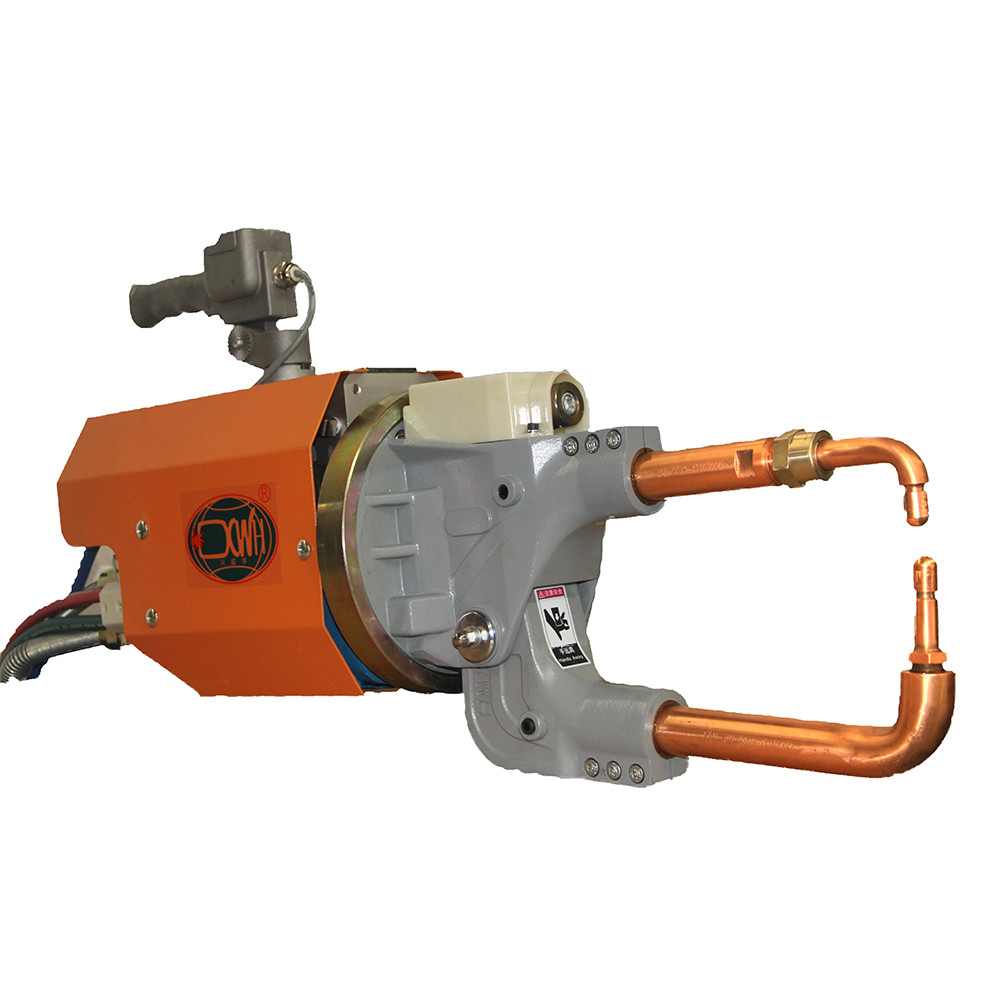

380V Portable Suspended Spot Welding Gun


Double Head Handheld Portable Doubleside Equipment Gun welder Spot Welding Machine 0

X type C type



Features



Item/models Unit DN2-35X DN2-35C DN2-45X DN2-45C DN2-65X DN2-65C
power at 50% KVA 35 35 45 45 65 65
Maximum short circuit current KVA 15 15 16 16 46 46
Secondary unload voltage V 5.7 5.7 6.3 6.3 8 8
Voltage at 50Hz/60Hz V 380 380 380 380 380 380
Distance between the arms MM

120-280



100 120-330 100 160-430 100
Max.strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Arm length MM 240-600 200-500 300-800 200-500 400-1100 200-500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow l/MIN 12 12 12 12 12 12



The tail of the integrated suspension spot welding tongs adopts a lightweight structure design, the cylinder pressure output is stable, the body is small in size and light in weight. The transformer is in the form of power frequency, which is used in the work stations with complex operating posture and high turnover frequency of the welding tongs. Due to the small size of the welding tongs, the welding pressure and power are limited, and they are generally used for thin plate welding.



Most Popular 220V 380V Portable Suspended Spot Welding Gun

X Type



  • Specifics

Most Popular 220V 380V Portable Suspended Spot Welding Gun

  • Application



Most Popular 220V 380V Portable Suspended Spot Welding Gun



  • Important equipment
  •

    • Workflow



    Most Popular 220V 380V Portable Suspended Spot Welding Gun



    1.Please give us your specific requirement,including the material and thickness or 3D drawing of workpiece or anyelse.

    2.Technicist makes 3D modeling and select suitable welding machine and shape of clamp .We should keep contact at this point.

    3.Building the cooperation relations and signing a contact. We will confirm drawing with you in one day or two days.

    4.We confirm the accurancy of contract finaly,then we can produce welding machine.
