| Product Name: | Aluminum And Copper Welding Automobile Portable Spot Welding Machine | Application: | Automotive Industry |
|---|---|---|---|
| Rated Capacity: | 60-100KVA | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maint |
| Weight (KG): | 120KG | Max. Welding Thickness: | 5+5 Mm |
| Rated Duty Cycle: | 50% | Voltage: | 220V/380V/ |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training | After Warranty Service: | Video Technical Support, Online Support And Spare Parts |
| Highlight: | cast ductile portable spot welding machine,80KVA spot welder for car body repair,80KVA portable spot welding machine |
||

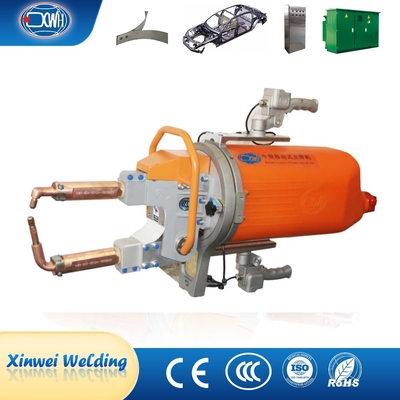

The portable spot welding machine mainly consists of a welding transformer, a gas path system (air cylinder, solenoid valve, air source processing parts), a water path cooling system (inlet and outlet water pipes, distribution blocks), an electrode arm assembly (electrode arm, curved electrode arm, electrode seat, electrode extension rod, electrode cap), a control handle, a hanging rotating mechanism, and a controller.
Technical Parameters:
| Item/models | Unit | DN2-60X | DN2-60C | DN2-80X | DN2-80C | DN2-100X | DN2-100C |
| power at 50 | KVA | 60 | 60 | 80 | 80 | 100 | 100 |
| Maximum short circuit current | KVA | 10 | 10 | 12 | 12 | 14 | 14 |
| Secondary unload voltage | V | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
| Voltage at 50Hz/60Hz | V | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 |
| Distance between the arms | MM |
120-280
|
100-300 | 120-128 | 100-300 | 120-280 | 100-300 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Arm length | MM | 240-500 | 200-500 | 240-600 | 200-500 | 240-600 | 200-500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 8 | 8 | 8 | 8 | 8 | 8 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Main Characteristics:
1. High efficiency resistance welding machine.
2. Easy to install and simple to operate, saves energy.
3. Nimble and 360° rotational use. Stays at any angle any and position.
4. Small, light, high power output. Smallest welder in its power class.
5. Electrode and welding arm are all water cooled so that welding quality can be guaranteed.
6. Gun body is cast with special aluminum, light and ductile.
7. The electrode arm is made of copper alloy with good flexional strength, high conductivity.
8. High production rate, sufficient supply of spare parts and components.
General Structures:
General Multiple Electrode Arms:

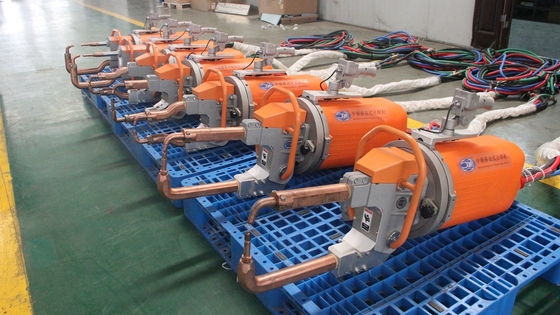

Images:
Use & Installation:
UseApplication:
Work Flow:
1.Please give us your specific requirement,include the material and thickness or 3D drawing of workpiece or anyelse.
2.Technicist makes 3D modeling and select suitable welding machine and shape of clamp .We should keep contact at this point.
3.Building the cooperation relations and signing a contact. Wewill confirm drawing with you in one day or two days.
4.We confirm the accurancy of contract finaly,then we can produce welding machine.
