Portable Spot Welding Machine
Created with Pixso.

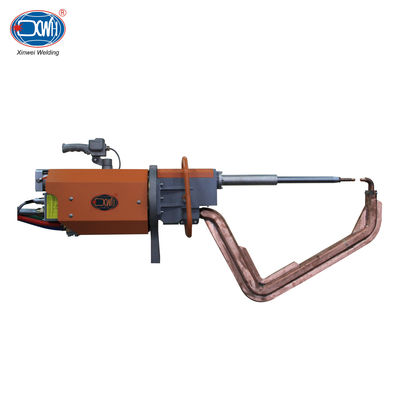

65KVA Resistance Integrated Gun Type Spot Welding Machine Portable

65KVA Resistance Integrated Gun Type Spot Welding Machine Portable

Brand Name: XWH
Model Number: DN2
MOQ: 1 Set
Price: $3,000.00-$5,000.00
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Week
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
65KVA Resistance Integrated Spot Welder IT Gun
Machine Type:
Auto Repair Tools
Rated Capacity:
65KVA
After Warranty Service::
Video Technical Support, Online Support, Spare Parts, Field Maint
Weight (KG):
60 KG
Max. Welding Thickness:
3.5+3.5mm
Rated Duty Cycle:
50%
Voltage:
380V
Packaging Details:
wooden Case
Supply Ability:
500 Set/Sets per Week
Highlight:

65KVA portable spot welding gun

,

integrated gun type spot welding machine

,

65KVA gun type spot welding machine

Product Description
65KVA Resistance Integrated Spot Welder IT Gun


Details



Features



Item/models Unit DN2-35X DN2-35C DN2-45X DN2-45C DN2-65X DN2-65C
power at 50% KVA 35 35 45 45 65 65
Maximum short circuit current KVA 15 15 16 16 46 46
Secondary unload voltage V 5.7 5.7 6.3 6.3 8 8
Voltage at 50Hz/60Hz V 380 380 380 380 380 380
Distance between the arms MM

120-280



100 120-330 100 160-430 100
Max.strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Arm length MM 240-600 200-500 300-800 200-500 400-1100 200-500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow l/MIN 12 12 12 12 12 12



Spot welding is a resistance welding method that assembles the weldment into a lap joint and presses it between two columnar electrodes, and uses resistance heat to melt the base metal to form a welding spot. Spot welding is mainly used for thin plate welding.
The process of spot welding:


(1) Preload to ensure good contact of the workpiece.


(2) Energize to form a nugget and plastic ring at the weld.


(3) Power-off forging, so that the nugget cools and crystallizes under the continued pressure to form a densely structured solder joint without shrinkage or cracks.
