Portable Spot Welding Machine
Created with Pixso.

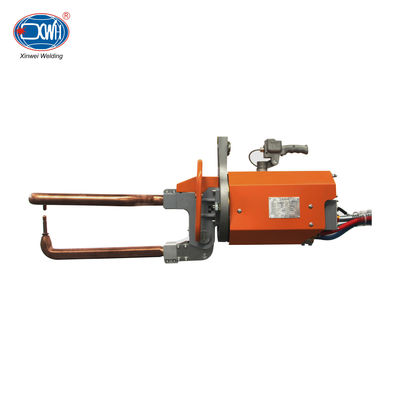

0.5mpa Pneumatic Portable Spot Welding Machine Sheet Metal 140mm Stroke

0.5mpa Pneumatic Portable Spot Welding Machine Sheet Metal 140mm Stroke

Brand Name: XWH
Model Number: DN2
MOQ: 1 Set
Price: $3,000.00-$5,000.00
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Week
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Pneumatic Resistance Spot Weld Machine Sheet Metal
Machine Type:
Auto Repair Tools
Rated Capacity:
35KVA/45KVA/65KVA
After Warranty Service::
Video Technical Support, Online Support, Spare Parts, Field Maint
Weight (KG):
60 KG
Max. Welding Thickness:
3.5+3.5mm
Rated Duty Cycle:
50%
Voltage:
380V
Packaging Details:
wooden Case
Supply Ability:
500 Set/Sets per Week
Highlight:

portable spot welding machine 0.5mpa

,

pneumatic portable spot welding machine

,

0.5mpa pneumatic spot welder sheet metal

Product Description
Pneumatic Resistance Spot Weld Machine Sheet Metal


Details



Features



Item/models Unit DN2-35X DN2-35C DN2-45X DN2-45C DN2-65X DN2-65C
power at 50% KVA 35 35 45 45 65 65
Maximum short circuit current KVA 15 15 16 16 46 46
Secondary unload voltage V 5.7 5.7 6.3 6.3 8 8
Voltage at 50Hz/60Hz V 380 380 380 380 380 380
Distance between the arms MM

120-280



100 120-330 100 160-430 100
Max.strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Arm length MM 240-600 200-500 300-800 200-500 400-1100 200-500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow l/MIN 12 12 12 12 12 12



Advantage


Resistance welding metal


(1) When the nugget is formed, it is always surrounded by a plastic ring, the molten metal is isolated from the air, and the metallurgical process is simple.


(2) The heating time is short and the heat is concentrated, so the heat-affected zone is small, and the deformation and stress are also small. Usually, it is not necessary to arrange the correction and heat treatment process after welding.


(3) No filler metal such as welding wire, welding rod, and welding materials such as oxygen, acetylene, hydrogen, etc. are required, and the welding cost is low.


(4) Simple operation, easy to realize mechanization and automation, and improve working conditions.





Specifics
