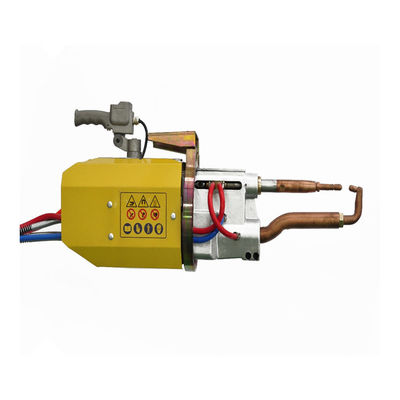

Auto Body 3.5KN Sheet Metal Spot Welding Machine 25mm Stroke

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DN2
Minimum Order Quantity: 1 Set
Price: $3,000.00-$5,000.00
Packaging Details: wooden Case
Delivery Time: 15 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Week
Detail Information
Product Name: Auto Body Manufacture Spot Welding Sheet Metal Machine Machine Type: Auto Repair Tools
Rated Capacity: Customized After Warranty Service:: Video Technical Support, Online Support, Spare Parts, Field Maint
Weight (KG): 60 KG Max. Welding Thickness: 3.5+3.5mm
Rated Duty Cycle: 50% Voltage: 380V
High Light:

3.5KN sheet metal spot welding machine

,

25mm sheet metal spot welding machine

,

3.5KN auto body spot welding machine


Product Description

Auto Body Manufacture Spot Welding Sheet Metal Machine​


Details


Application



With the development of aerospace, electronics, automobiles, household appliances and other industries, resistance welding has received more and more attention. [4] At the same time, higher requirements are put forward for the quality of resistance welding. Fortunately, the development of China's microelectronics technology and the development of high-power thyristors and rectifiers have provided conditions for the improvement of resistance welding technology. China has produced secondary rectifier welding machines with excellent performance. The control box composed of integrated circuits and microcomputers has been used for the matching of new welding machines and the transformation of old welding machines. Advanced closed-loop monitoring technologies such as constant current, dynamic resistance, and thermal expansion have begun to be popularized and applied in production. All this will help improve the quality of resistance welding and expand its application areas.



Features



Item/models Unit DN2-35X DN2-35C DN2-45X DN2-45C DN2-65X DN2-65C
power at 50% KVA 35 35 45 45 65 65
Maximum short circuit current KVA 15 15 16 16 46 46
Secondary unload voltage V 5.7 5.7 6.3 6.3 8 8
Voltage at 50Hz/60Hz V 380 380 380 380 380 380
Distance between the arms MM

120-280



100 120-330 100 160-430 100
Max.strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Arm length MM 240-600 200-500 300-800 200-500 400-1100 200-500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow l/MIN 12 12 12 12 12 12



Advantage


Resistance welding metal


(1) When the nugget is formed, it is always surrounded by a plastic ring, the molten metal is isolated from the air, and the metallurgical process is simple.


(2) The heating time is short and the heat is concentrated, so the heat-affected zone is small, and the deformation and stress are also small. Usually, it is not necessary to arrange the correction and heat treatment process after welding.


(3) No filler metal such as welding wire, welding rod, and welding materials such as oxygen, acetylene, hydrogen, etc. are required, and the welding cost is low.





Specifics

Most Popular 220V 380V Portable Suspended Spot Welding Gun
