Brand Name: | XWH |
Model Number: | DN2 |
MOQ: | 1 Set |
Price: | $3,000.00-$5,000.00 |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 500 Set/Sets per Week |
Features
Item/models | Unit | DN2-35X | DN2-35C | DN2-45X | DN2-45C | DN2-65X | DN2-65C |
power at 50% | KVA | 35 | 35 | 45 | 45 | 65 | 65 |
Maximum short circuit current | KVA | 15 | 15 | 16 | 16 | 46 | 46 |
Secondary unload voltage | V | 5.7 | 5.7 | 6.3 | 6.3 | 8 | 8 |
Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
Distance between the arms | MM |
120-280
|
100 | 120-330 | 100 | 160-430 | 100 |
Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
Arm length | MM | 240-600 | 200-500 | 300-800 | 200-500 | 400-1100 | 200-500 |
Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
Cooling water flow | l/MIN | 12 | 12 | 12 | 12 | 12 | 12 |
Application

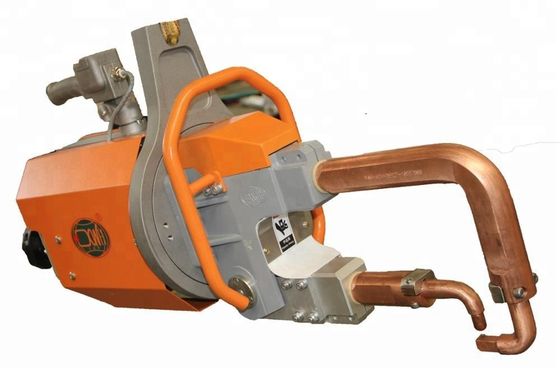

The DN2 series suspension spot welding machine (hereinafter referred to as the welding machine) is a mobile spot welding equipment, suitable for fixed workpieces and mobile spot welding occasions, and used in spot welding operations where fixed spot welding machines cannot or are inconvenient for welding. The thickness is generally 0.5-2mm, and the welding thickness can reach 4mm under special circumstances. It can weld carbon steel plates, coated carbon steel plates, stainless steel plates and other occasions where resistance welding is required.|
Features

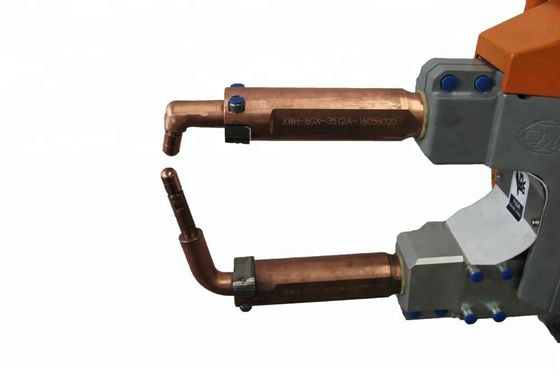

The welding machine adopts modular design, welding transformer, welding tongs and pressurized cylinder are integrated with the body, compact structure, high efficiency and energy saving, safe and reliable. The welding machine is equipped with a three-degree-of-freedom rotating device, plus the three-freedom of suspension rack configuration The high-speed mobile device realizes all-round welding, and the operation is light and flexible. The welding machine can also be used as a fixed spot welding machine after being fixed.
