| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 Set |
| Price: | $3,000.00-$5,000.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Week |

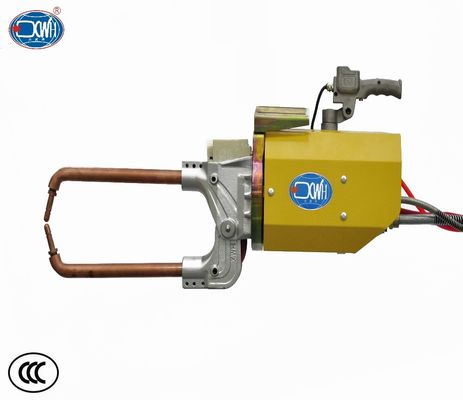

| Product Name: | Suspension Manual Water Cooled Portable Spot Welding Machine | Machine Type: | Auto Repair Tools |
|---|---|---|---|
| Rated Capacity: | Customized | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maint |
| Weight (KG): | 80 KG | Max. Welding Thickness: | 3.5+3.5mm |
| Rated Duty Cycle: | 50% | Voltage: | 380V/220V |
| High Light: | portable spot welding machine 220volt,15KVA portable spot welding machine,220volt water cooled spot welder |
||
Features
| Item/models | Unit | DN2-35X | DN2-35C | DN2-45X | DN2-45C | DN2-65X | DN2-65C |
| power at 50% | KVA | 35 | 35 | 45 | 45 | 65 | 65 |
| Maximum short circuit current | KVA | 15 | 15 | 16 | 16 | 46 | 46 |
| Secondary unload voltage | V | 5.7 | 5.7 | 6.3 | 6.3 | 8 | 8 |
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM |
120-280
|
100 | 120-330 | 100 | 160-430 | 100 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Arm length | MM | 240-600 | 200-500 | 300-800 | 200-500 | 400-1100 | 200-500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 12 | 12 | 12 | 12 | 12 | 12 |
Features
The welding machine adopts modular design, welding transformer, welding tongs and pressurized cylinder are integrated with the body, compact structure, high efficiency and energy saving, safe and reliable. The welding machine is equipped with a three-degree-of-freedom rotating device, plus the three-freedom of suspension rack configuration The high-speed mobile device realizes all-round welding, and the operation is light and flexible. The welding machine can also be used as a fixed spot welding machine after being fixed
Specifics
