| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 Set |
| Price: | $3,000.00-$5,000.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Week |
| Product Name: | One Side Car Body Repair Spot Welder Price List For KitcKen Cage | Machine Type: | Auto Repair Tools |
|---|---|---|---|
| Rated Capacity: | Customized | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts, Field Maint |
| Weight (KG): | 80 KG | Max. Welding Thickness: | 3.5+3.5mm Or 2+2+2mm |
| Rated Duty Cycle: | 50% | Voltage: | 380V/220V |
| High Light: | AC220V portable spot welding machine,3.5KN portable spot welding machine,AC220V auto body spot welder |
||
Features
| Item/models | Unit | DN2-35X | DN2-35C | DN2-45X | DN2-45C | DN2-65X | DN2-65C |
| power at 50% | KVA | 35 | 35 | 45 | 45 | 65 | 65 |
| Maximum short circuit current | KVA | 15 | 15 | 16 | 16 | 46 | 46 |
| Secondary unload voltage | V | 5.7 | 5.7 | 6.3 | 6.3 | 8 | 8 |
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM |
120-280
|
100 | 120-330 | 100 | 160-430 | 100 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Arm length | MM | 240-600 | 200-500 | 300-800 | 200-500 | 400-1100 | 200-500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 12 | 12 | 12 | 12 | 12 | 12 |
Features

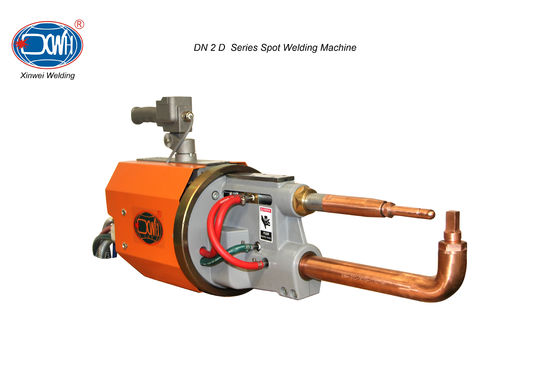

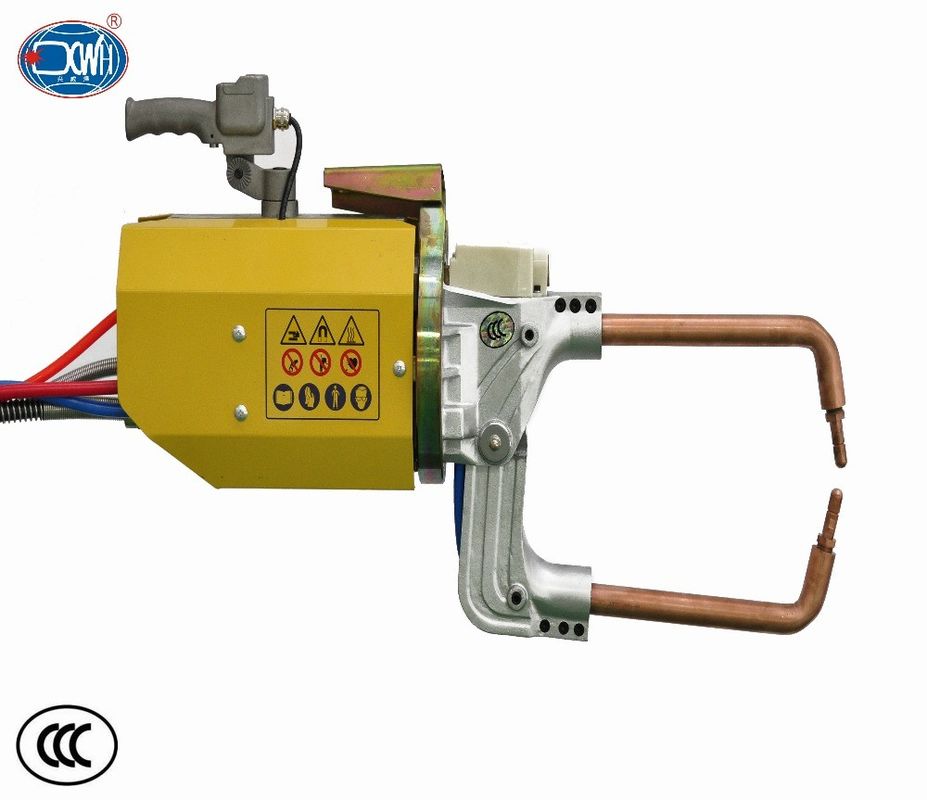

The welding machine adopts modular design, the welding transformer, welding tongs and pressurized cylinder are integrated with the body, compact structure, energy saving, reliable and reliable. The welding machine is equipped with a three-degree-of-freedom rotating device, plus the three-freedom of the suspension rack configuration. The mobile device can realize 360-degree welding without dead angle, and the operation is light and flexible. The welding machine can also be used as a fixed spot welding machine after being fixed.
Product use conditions
The welding machine should work under the following conditions.
Cooling water source: The pressure of the cooling water source is 0.2～0.3 MPa, the flow should meet the technical requirements of the welding machine, the water quality should meet the industrial water standard, and the inlet water temperature should be 5～30℃;
Compressed air: the air source pressure is 0.8 MPa, and the flow rate should meet the technical requirements of the welding machine;
Power supply: 380V AC power supply
Grounding device, there is a good grounding device independent of the power supply near the welding machine.
