Portable Spot Welding Machine
Created with Pixso.

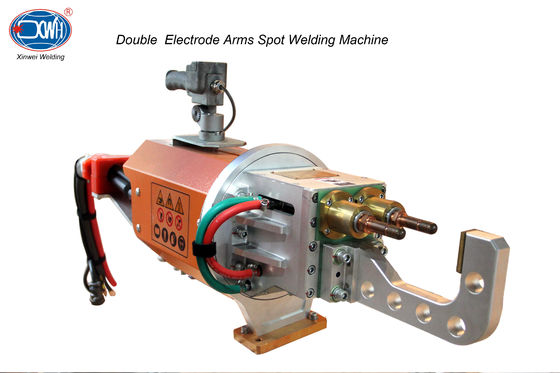

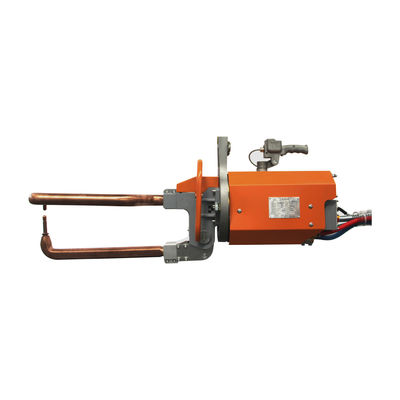

Two Electrodes 3500N Manual Spot Welding Machine Hand Held

Two Electrodes 3500N Manual Spot Welding Machine Hand Held

Brand Name: XWH
Model Number: DN2
MOQ: 1 Set
Price: $3,000.00-$5,000.00
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Week
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Two Electrodes Manual Spot Welding Machine Portable Spot
Machine Type:
Auto Repair Tools
Rated Capacity:
Customized
After Warranty Service::
Video Technical Support, Online Support, Spare Parts, Field Maint
Weight (KG):
80 KG
Max. Welding Thickness:
3.5+3.5mm
Rated Duty Cycle:
50%
Voltage:
380V
Packaging Details:
wooden Case
Supply Ability:
500 Set/Sets per Week
Highlight:

3500N manual spot welding machine

,

two electrodes manual spot welding machine

,

3500N hand held spot welding machine

Product Description
Two Electrodes Manual Spot Welding Machine Portable Spot
Details


Features



Item/models Unit DN2-35X DN2-35C DN2-45X DN2-45C DN2-65X DN2-65C
power at 50% KVA 35 35 45 45 65 65
Maximum short circuit current KVA 15 15 16 16 46 46
Secondary unload voltage V 5.7 5.7 6.3 6.3 8 8
Voltage at 50Hz/60Hz V 380 380 380 380 380 380
Distance between the arms MM

120-280



100 120-330 100 160-430 100
Max.strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Arm length MM 240-600 200-500 300-800 200-500 400-1100 200-500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow l/MIN 12 12 12 12 12 12





The tail of the integrated suspension spot welding tongs adopts a lightweight structure design, the cylinder pressure output is stable, the body is small in size and light in weight. The transformer is in the form of power frequency, which is used in the work stations with complex operating posture and high turnover frequency of the welding tongs. Due to the small size of the welding tongs, the welding pressure and power are limited, and they are generally used for thin plate welding.


Control device The control device is composed of a switch and a synchronous control. The function of the switch in spot welding is to control the on and off of the current. The function of the synchronous control is to adjust the size of the welding current and accurately control the welding procedure. When the network voltage fluctuates Can automatically compensate
