| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DNY |
| Minimum Order Quantity: | 1 Set |
| Price: | $600.00 - $650.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 Set/Sets per Week |

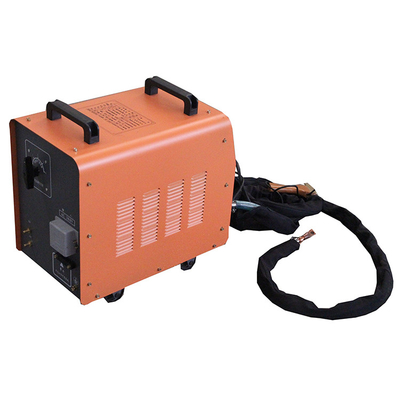

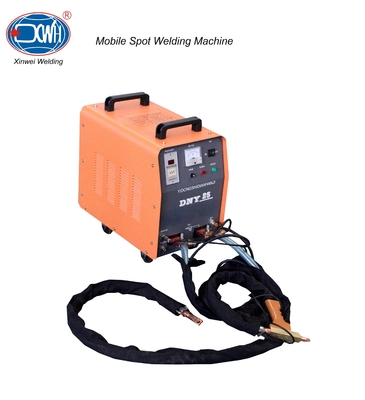

| Product Name: | Mini Alloy Aluminum Hand Held Stick Portable Spot Welder Mobile Welder For Sale | Machine Type: | Automobile Body Repair |
|---|---|---|---|
| Rated Capacity: | 16-80KVA | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts |
| Weight (KG): | 80-120KG | Max. Welding Thickness: | 5 + 5mm |
| Rated Duty Cycle: | 10% | Voltage: | 220V 380V |
| High Light: | Handheld Stick Mobile Spot Welder,Alloy Aluminum Stick Mobile Spot Welder,Mini Portable Spot Welding Machine |
||
|
Model Parameter
|
DNY-80
|
DNY-50
|
DNY-35
|
DNY-25
|
DNY-16
|
|
Rated power
|
80KVA
|
50KVA
|
35KVA
|
25KVA
|
16KVA
|
|
Rated input power
|
380V
|
380V
|
380V
|
380V
|
380V
|
|
Rated primary current
|
211A
|
132A
|
92A
|
66A
|
42.1A
|
|
Rated duty cycle
|
10%
|
10%
|
10%
|
10%
|
10%
|
|
Secondary unload voltagea djustment
|
9.5～19V
|
7.6～15.2V
|
7.6～12.7V
|
7.6～12.7V
|
6.2～11V
|
|
Adjustment level
|
2
|
2
|
1
|
4
|
4
|
|
Welding time adjustment
|
0～250CYC
|
0～250CYC
|
0～250CYC
|
0～9.99s
|
0～9.99s
|
|
Secondary cable length
|
2m
|
2m
|
2m
|
2m
|
2m
|
|
Welding thickness
|
(0.2~1.5)+4mm
|
(0.2~1.5)+3.5mm
|
(0.2~1.2)+3mm
|
(0.2~1)+3mm
|
(0.1~0.6)+2mm
|
|
Cooling method
|
Main transformer: water cooling Electrode: water cooling
|
||||
Application: Generally for low carbon steel, steel, galvanized steel, stainless steel and other metal.
