| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DNY |
| Minimum Order Quantity: | 1 Set |
| Price: | $600.00 - $650.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50 Set/Sets per Week |

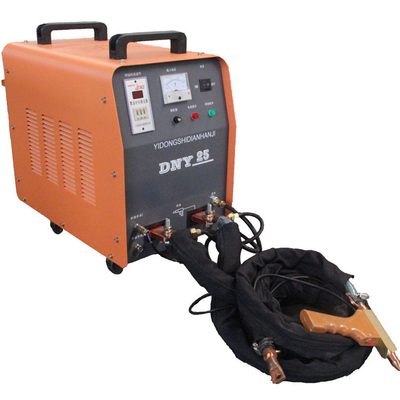

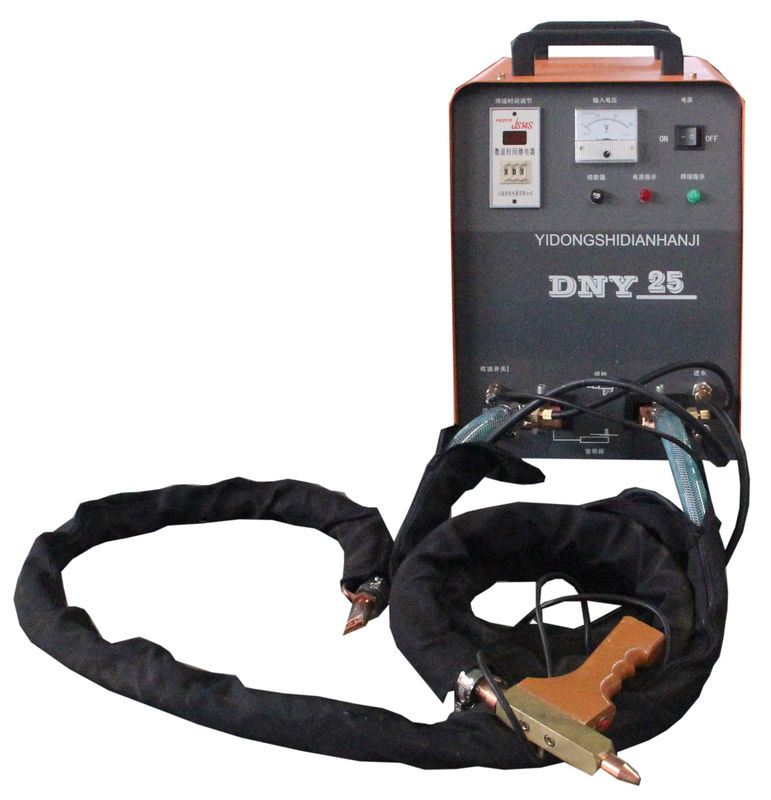

| Product Name: | 220v Stainless Steel Small Hand Held Welder Mobile Portable Spot Welding Machine | Machine Type: | Spot Welding Machine |
|---|---|---|---|
| Rated Capacity: | 16-80KVA | After Warranty Service:: | Video Technical Support, Online Support, Spare Parts |
| Weight (KG): | 80-120KG | Max. Welding Thickness: | 5 + 5mm |
| Rated Duty Cycle: | 10% | Voltage: | 220V 380V |
| High Light: | 220v Handheld Portable Spot Welding Machine,Stainless Steel Portable Spot Welding Machine,Mobile Handheld Spot Welder |
||
|
Model
Parameter
|
DNY-80
|
DNY-50
|
DNY-35
|
DNY-25
|
DNY-16
|
|
Rated power
|
80KVA
|
50KVA
|
35KVA
|
25KVA
|
16KVA
|
|
Rated input power
|
380V
|
380V
|
380V
|
380V
|
380V
|
|
Rated primary current
|
211A
|
132A
|
92A
|
66A
|
42.1A
|
|
Rated duty cycle
|
10%
|
10%
|
10%
|
10%
|
10%
|
|
Secondary unload voltagea djustment
|
9.5～19V
|
7.6～15.2V
|
7.6～12.7V
|
7.6～12.7V
|
6.2～11V
|
|
Adjustment level
|
2
|
2
|
1
|
4
|
4
|
|
Welding time adjustment
|
0～250CYC
|
0～250CYC
|
0～250CYC
|
0～9.99s
|
0～9.99s
|
|
Secondary cable length
|
2m
|
2m
|
2m
|
2m
|
2m
|
|
Welding thickness
|
(0.2~1.5)+4mm
|
(0.2~1.5)+3.5mm
|
(0.2~1.2)+3mm
|
(0.2~1)+3mm
|
(0.1~0.6)+2mm
|
|
Cooling method
|
Main transformer: water cooling Electrode: water cooling
|
||||
Application: the mobile portable spot welding machine is widely used in all kinds of sheet metal, steel box and cabinet, iron furniture, stainless steel kitchen products, stainless steel door manufacturing and steel wire mesh reweld for leakage welding etc.
