Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DNY
Minimum Order Quantity: 1 Set
Price: $600.00 - $650.00
Packaging Details: wooden Case
Delivery Time: 15 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 Set/Sets per Week
Detail Information
Product Name: Portable Mobile Stick Spot Welder Welding Machine Machine Type: Resistance Welding Machine
Rated Capacity: 16-80KVA After Warranty Service:: Video Technical Support, Online Support, Spare Parts
Weight (KG): 80-120KG Function: Sheet Metal Spot Welding
Rated Duty Cycle: 10% Voltage: 220V/380V
High Light:

80KVA Aluminum Spot Welding Machine

,

Inverter Aluminum Spot Welding Machine

,

Stainless Steel Pipe Stick Spot Welder


Product Description

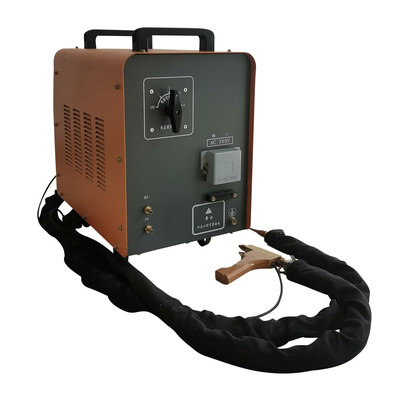

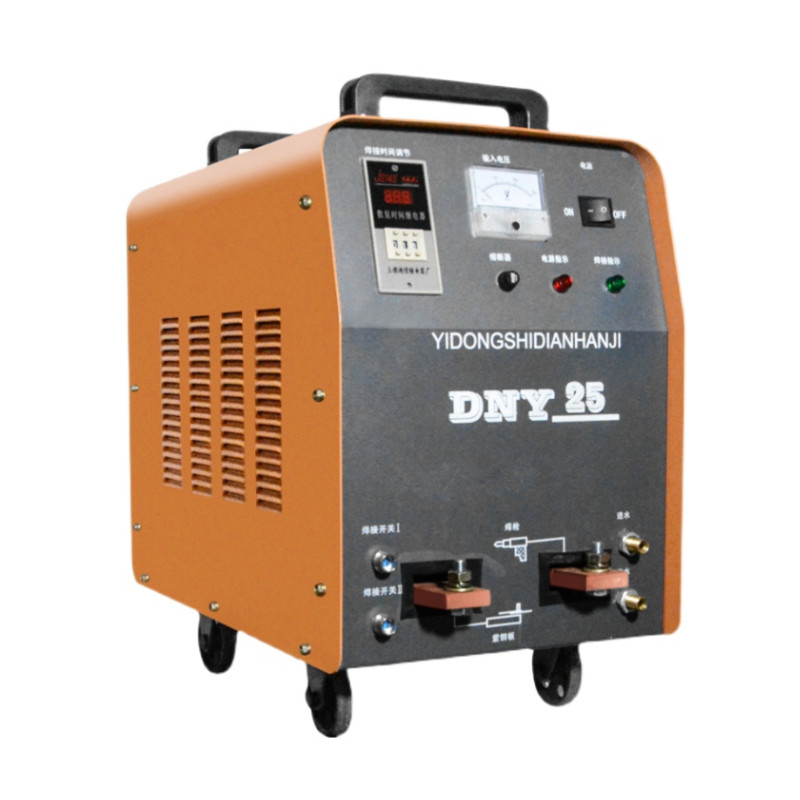

Inverter Stainless Steel Pipe Wire Stick Aluminum Portable Spot Welding Machine


Product Description


Model Parameter
DNY-80
DNY-50
DNY-35
DNY-25
DNY-16
Rated power
80KVA
50KVA
35KVA
25KVA
16KVA
Rated input power
380V
380V
380V
380V
380V
Rated primary current
211A
132A
92A
66A
42.1A
Rated duty cycle
10%
10%
10%
10%
10%
Secondary unload voltagea djustment
9.5~19V
7.6~15.2V
7.6~12.7V
7.6~12.7V
6.2~11V
Adjustment level
2
2
1
4
4
Welding time adjustment
0~250CYC
0~250CYC
0~250CYC
0~9.99s
0~9.99s
Secondary cable length
2m
2m
2m
2m
2m
Welding thickness
(0.2~1.5)+4mm
(0.2~1.5)+3.5mm
(0.2~1.2)+3mm
(0.2~1)+3mm
(0.1~0.6)+2mm
Cooling method
Main transformer: water cooling Electrode: water cooling





Welding method



This machine is a resistance welding machine and the principle is to convert electric energy into heat energy through a transformer, melting iron plate. The welding torch is connected with a welding wire, and the ground wire is connected to the copper plate. The workpiece is in contact with the copper plate and the welding torch is put on the workpiece with a little force to complete the welding.





Features:



1. Water-cooling welding machine ensures the welding quality.

2. Small size and light weight make a flexible and efficient welding.

3. Equipped with two welding guns, more convenient to weld.

4. Widely used for welding of carbon steel, stainless steel, iron plate, iron wire, wire mesh, galvanized iron sheet, auto sheet metal and other metal materials.





Fittings



Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 0





Company Information
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 1
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 2
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 3
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller, etc.
Certifications
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 4
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 5
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 6
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 7
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 8
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 9
Exhibition Pictures
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 10
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 11
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 12
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 13
Service
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 14
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 15
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 16
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on..
Transportation Display
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 17
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 18
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 19
Inverter Stainless Steel Pipe Wire Stick Aluminum Spot Welding Machine Portable 20
FAQ
1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5.How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE
foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
