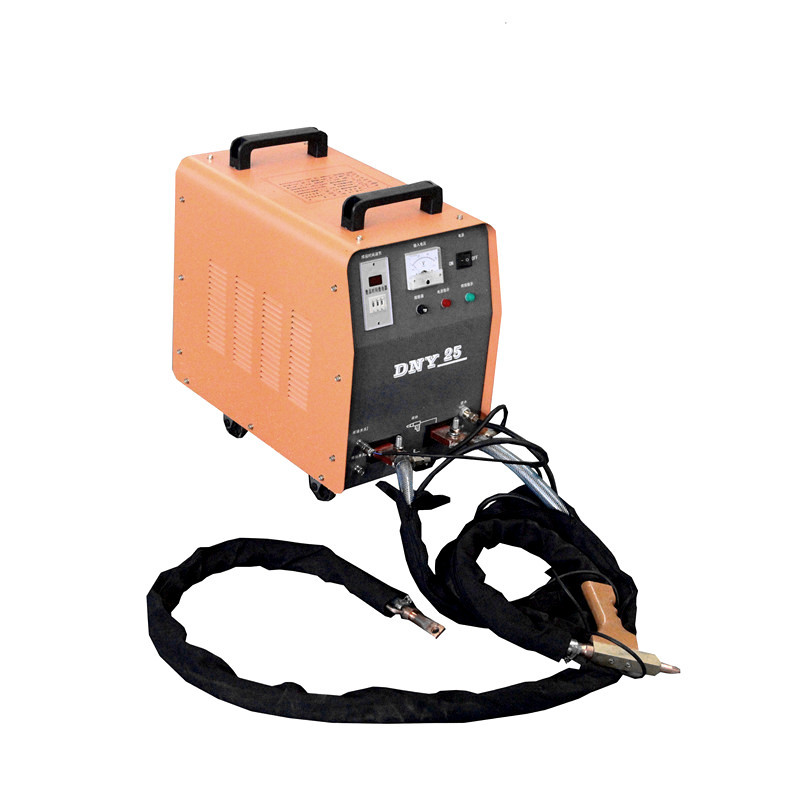

Resistance Inverter Pipeline Portable Spot Welding Machine
Brand Name:
XWH
Model Number:
DNY
Place of Origin:
China
Certification:
CE
Minimum Order Quantity:
1 Set
Price:
$600.00 - $650.00
Supply Ability:
50 Set/Sets per Week
Delivery Time:
15 Working days
Inquiry Now
Get A Quote
Specifications
Highlight Features
Pipeline Portable Spot Welding Machine
,80KVA Resistance Spot Welding Machine
,CCC Resistance Spot Welder
Product Name:
Portable Mobile Stick Spot Welder Welding Machine
Machine Type:
Resistance Welding Machine
Feature:
High Efficiency
After Warranty Service::
Video Technical Support, Online Support, Spare Parts
Weight (KG):
80-120KG
Function:
Sheet Metal Spot Welding
MOQ:
1 Set
Voltage:
220V/380V
Product Description
Resistance Inverter Pipeline Welders Equipment Portable Spot Welding Machine
The mobile spot welding machine is a resistance welding machine. The principle is to convert electric energy into heat energy through a transformer, melting iron plate. The welding gun is connected with a welding wire, and the ground wire is connected to the copper plate, and the workpiece is in contact with the copper plate and the welding torch is put on the workpiece with a little force to complete the welding.
Product Description
|
Model Parameter
|
DNY-80
|
DNY-50
|
DNY-35
|
DNY-25
|
DNY-16
|
|
Rated power
|
80KVA
|
50KVA
|
35KVA
|
25KVA
|
16KVA
|
|
Rated input power
|
380V
|
380V
|
380V
|
380V
|
380V
|
|
Rated primary current
|
211A
|
132A
|
92A
|
66A
|
42.1A
|
|
Rated duty cycle
|
10%
|
10%
|
10%
|
10%
|
10%
|
|
Secondary unload voltagea djustment
|
9.5～19V
|
7.6～15.2V
|
7.6～12.7V
|
7.6～12.7V
|
6.2～11V
|
|
Adjustment level
|
2
|
2
|
1
|
4
|
4
|
|
Welding time adjustment
|
0～250CYC
|
0～250CYC
|
0～250CYC
|
0～9.99s
|
0～9.99s
|
|
Secondary cable length
|
2m
|
2m
|
2m
|
2m
|
2m
|
|
Welding thickness
|
(0.2~1.5)+4mm
|
(0.2~1.5)+3.5mm
|
(0.2~1.2)+3mm
|
(0.2~1)+3mm
|
(0.1~0.6)+2mm
|
|
Cooling method
|
Main transformer: water cooling Electrode: water cooling
|
||||
Features:
1. Stable performance and reliable quality.

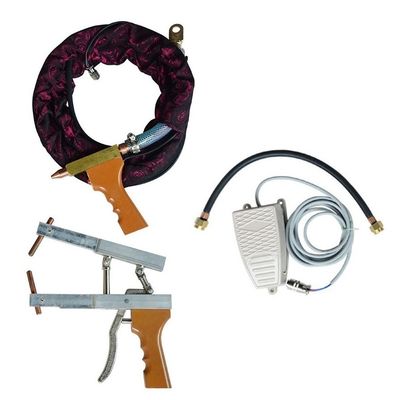

2. Two welding guns with different structures are more convenient for welding.
3. Welding time can be adjusted and input voltage display.
4. Widely used in welding stainless steel, galvanized plate, cabinet and cold plate.
Interior structure
Company Information
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.
Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller, etc.
Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller, etc.
Certifications
Exhibition Pictures
Service
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on..
Our engineers will train customer how to operate, repair and maintaining machines and so on..
Transportation Display
FAQ
1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5.How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE
foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
We usually arrange shippment within 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5.How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE
foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
