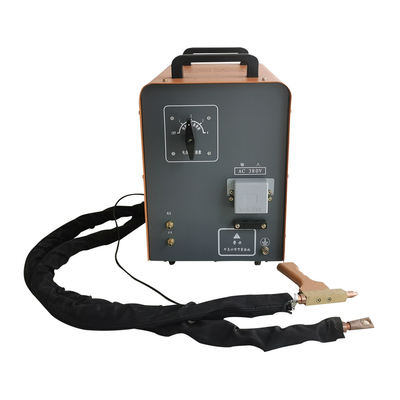

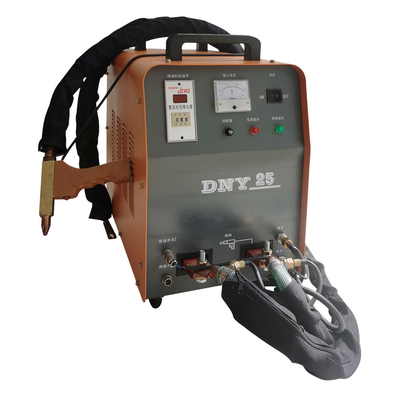

Ac Welder Pen Stick Iron Portable Spot Welding Machine Small Single Phase

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DNY
Minimum Order Quantity: 1 Set
Price: $600.00 - $650.00
Packaging Details: wooden Case
Delivery Time: 15 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 Set/Sets per Week
Detail Information
Product Name: Portable Mobile Stick Spot Welder Welding Machine Machine Type: Hand Welder
Feature: High Efficiency After Warranty Service:: Video Technical Support, Online Support, Spare Parts
Weight (KG): 80-120KG Function: Sheet Metal Spot Welding
MOQ: 1 Set Application: Welding Pieces
High Light:

80KVA Iron Portable Spot Welding Machine

,

Single Phase Ac Welder

,

Ac Welder Pen Stick


Product Description



Ac Welder Pen Stick Small Single Phase Mini Iron Portable Spot Welding Machine


The mobile portable spot welding machine is a resistance welding machine. The principle is to convert electric energy into heat energy through a transformer, melting iron plate. The welding gun is connected with a welding wire, and the ground wire is connected to the copper plate, and the workpiece is in contact with the copper plate and the welding torch is put on the workpiece with a little force to complete the welding.


Product Description


Model Parameter
DNY-80
DNY-50
DNY-35
DNY-25
DNY-16
Rated power
80KVA
50KVA
35KVA
25KVA
16KVA
Rated input power
380V
380V
380V
380V
380V
Rated primary current
211A
132A
92A
66A
42.1A
Rated duty cycle
10%
10%
10%
10%
10%
Secondary unload voltagea djustment
9.5~19V
7.6~15.2V
7.6~12.7V
7.6~12.7V
6.2~11V
Adjustment level
2
2
1
4
4
Welding time adjustment
0~250CYC
0~250CYC
0~250CYC
0~9.99s
0~9.99s
Secondary cable length
2m
2m
2m
2m
2m
Welding thickness
(0.2~1.5)+4mm
(0.2~1.5)+3.5mm
(0.2~1.2)+3mm
(0.2~1)+3mm
(0.1~0.6)+2mm
Cooling method
Main transformer: water cooling Electrode: water cooling





Features:



1. Stable current output with durable working time.

2. Having two welding torch, more convenient for welding.

3. The machine is energy-saving with and high production efficiency.

4. Can weld the workpieces with complex structure in different positions.

5Circulating water cooling ensures good cooling effect.
