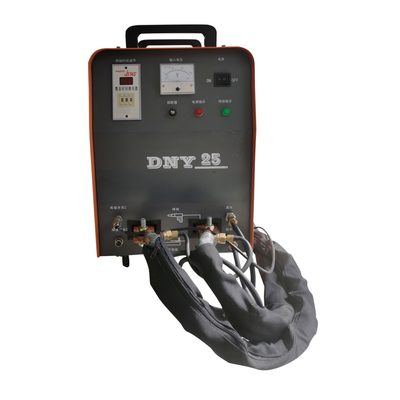

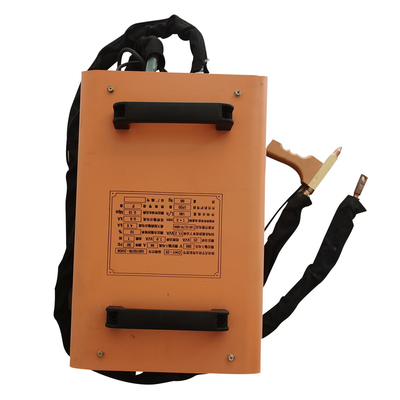

Alloy Steel Portable Spot Welding Machine Resistance Dc Welder

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DNY
Minimum Order Quantity: 1 Set
Price: $600.00 - $650.00
Packaging Details: wooden Case
Delivery Time: 15 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50 Set/Sets per Week
Detail Information
Product Name: Portable Mobile Stick Spot Welder Welding Machine Machine Type: Hand Welder
Feature: Easy Control After Warranty Service:: Video Technical Support, Online Support, Spare Parts
Weight (KG): 80-120KG Function: Material Spot Weld
MOQ: 1 Set Application: Welding Pieces
High Light:

Alloy Steel Dc Spot Welding Machine

,

50KVA Portable Spot Welding Machine

,

Resistance Portable Dc Welder


Product Description



Perfect Weld Alloy Steel Resistance Dc Welder Portable Spot Welding Machine


The mobile portable spot welding machine is a resistance welding machine. The principle is to convert electric energy into heat energy through a transformer, melting iron plate. The welding gun is connected with a welding wire, and the ground wire is connected to the copper plate, and the workpiece is in contact with the copper plate and the welding torch is put on the workpiece with a little force to complete the welding.


Product Description


Model Parameter
DNY-80
DNY-50
DNY-35
DNY-25
DNY-16
Rated power
80KVA
50KVA
35KVA
25KVA
16KVA
Rated input power
380V
380V
380V
380V
380V
Rated primary current
211A
132A
92A
66A
42.1A
Rated duty cycle
10%
10%
10%
10%
10%
Secondary unload voltagea djustment
9.5~19V
7.6~15.2V
7.6~12.7V
7.6~12.7V
6.2~11V
Adjustment level
2
2
1
4
4
Welding time adjustment
0~250CYC
0~250CYC
0~250CYC
0~9.99s
0~9.99s
Secondary cable length
2m
2m
2m
2m
2m
Welding thickness
(0.2~1.5)+4mm
(0.2~1.5)+3.5mm
(0.2~1.2)+3mm
(0.2~1)+3mm
(0.1~0.6)+2mm
Cooling method
Main transformer: water cooling Electrode: water cooling





Features:



1. New resistance welding transformer: simple circuit, universal accessories, low failure rate and easy maintenance.

2. New silicon steel sheet: rust resistance and corrosion resistance with long service life.

3. Non-slip handrail: hard handle and long grip without deformation.

4. Universal wheel: anti-skid, shockproof and wear-resistant, durable and easy to move.







Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 0





Company Information
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 1
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 2
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 3
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller, etc.
Certifications
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 4
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 5
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 6
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 7
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 8
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 9
Exhibition Pictures
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 10
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 11
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 12
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 13
Service
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 14
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 15
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 16
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on..
Transportation Display
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 17
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 18
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 19
Alloy Steel Portable Spot Welding Machine Resistance Dc Welder 20
FAQ
1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5.How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE
foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
