Place of Origin: | China |
---|---|
Brand Name: | XWH |
Certification: | CE |
Model Number: | DN2 |
Minimum Order Quantity: | 1 Set |
Price: | $6000 - $6500.00 |
Packaging Details: | wooden Case |
Delivery Time: | 15 Working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 500 Set/Sets per Week |

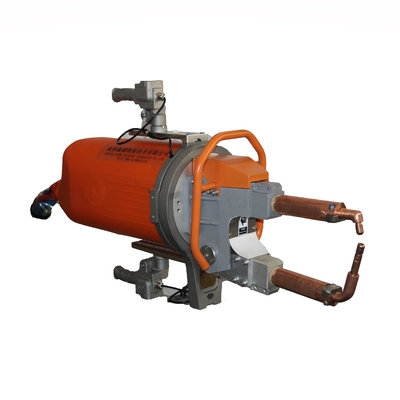

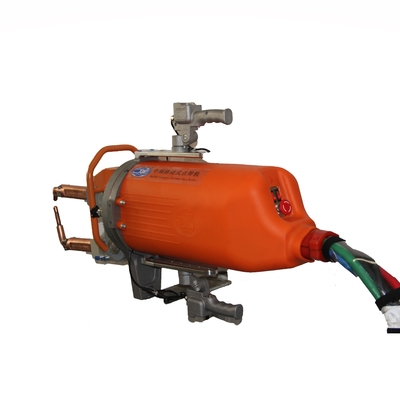

Product Name: | Portable Resistance Welding Spot Welder | Function: | Spot Weldinng |
---|---|---|---|
Rated Capacity: | 60KVA, 80KVA, 100KVA, | Welding Method: | Pulse Spot Weld |
Feature: | Easy Operation | Max. Welding Thickness: | 5+5 Mm |
Rated Duty Cycle: | 50% | Weight (KG): | 60KG |
High Light: | Hand Held Spot Welder for Sheet Metal,100KVA Portable Resistance Spot Welder,Portable Pulse Spot Welder CCC |
Product Description
Item/models | Unit | DN2-60X | DN2-60C | DN2-80X | DN2-80C | DN2-100X | DN2-100C |
power at 50 | KVA | 60 | 60 | 80 | 80 | 100 | 100 |
Maximum short circuit current | KVA | 10 | 10 | 12 | 12 | 14 | 14 |
Secondary unload voltage | V | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
Voltage at 50Hz/60Hz | V | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 |
Distance between the arms | MM |
120-280 |
100-300 | 120-128 | 100-300 | 120-280 | 100-300 |
Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
Max. arm length | MM | 500 | 500 | 600 | 500 | 600 | 500 |
Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
Cooling water flow | l/MIN | 8 | 8 | 8 | 8 | 8 | 8 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1. Small grid impact
2. Three-phase power input, high operating frequency, low transformer loss, and significant energy saving effect
3. 15kg lighter than power frequency, easy to operate
4. The transformer can be up to 300kva, the transformer secondary tube brand is ABB
Application:
The portable spot welding machine is widely used in the automobile, motorcycle, aviation, sheet metal structural components, medical equipment, light industrial machinery, household appliances and other fields. And it can welding carbon steel sheet, coated steel sheet, stainless steel sheet, aluminum sheet metal.
