| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 Set |
| Price: | $6000 - $6500.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Week |

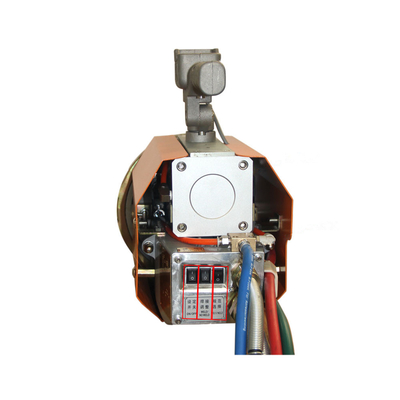

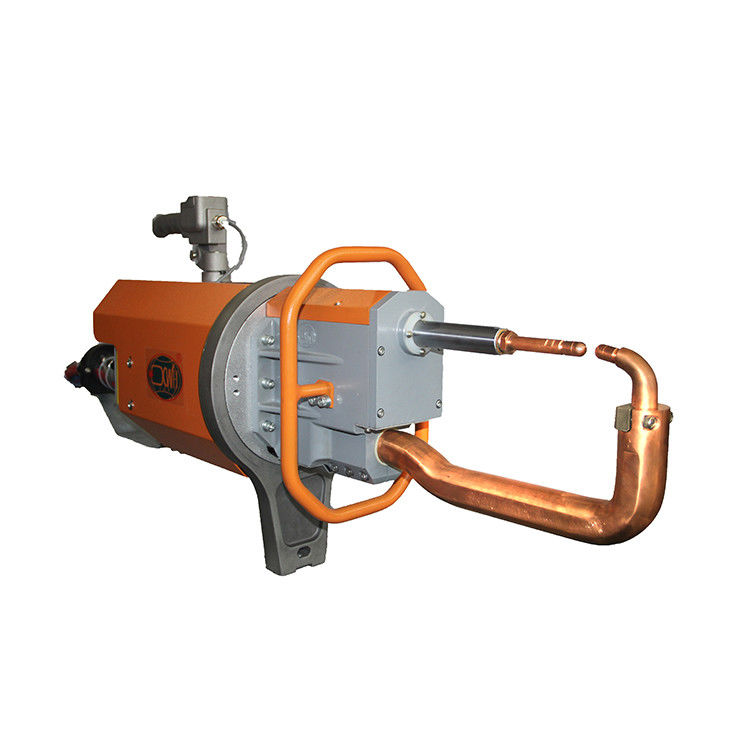

| Product Name: | Portable Resistance Welding Spot Welder | Function: | Sheet Metal Spot Welding |
|---|---|---|---|
| Rated Capacity: | 35KVA, 45KVA, 65KVA, | Welding Method: | Pulse Spot Weld |
| Feature: | Easy Operation | MOQ: | 1 Set |
| Max. Welding Thickness: | 5+5 Mm | Weight (KG): | 60KG |
| High Light: | 65KVA Portable Pulse Spot Welder,45KVA Portable Resistance Spot Welder |
||
Product Description
| Item/models | Unit | DN2-35X | DN2-35C | DN2-45X | DN2-45C | DN2-65X | DN2-65C |
| power at 50% | KVA | 35 | 35 | 45 | 45 | 65 | 65 |
| Maximum short circuit current | KVA | 15 | 15 | 16 | 16 | 46 | 46 |
| Secondary unload voltage | V | 5.7 | 5.7 | 6.3 | 6.3 | 8 | 8 |
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM |
120-280 |
100 | 120-330 | 100 | 160-430 | 100 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| MAX. Arm length | MM | 600 | 500 | 800 | 500 | 1100 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | L/MIN | 12 | 12 | 12 | 12 | 12 | 12 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1. Small, easy to operate and save power
2. The structure is compact and is easy to maintenance
3. The turntable is configured with bearings and can rotate 360°
4. The welding tongs can be customized, the longest welding arm is 1300mm and the shortest is 220mm
Application:
The portable spot welding machine is widely used in automobile manufacturing, maintenance, household appliances,
doors and Windows, agriculture, construction steel and other metal manufacturing industries.
