| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 Set |
| Price: | $6000 - $6500.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Week |

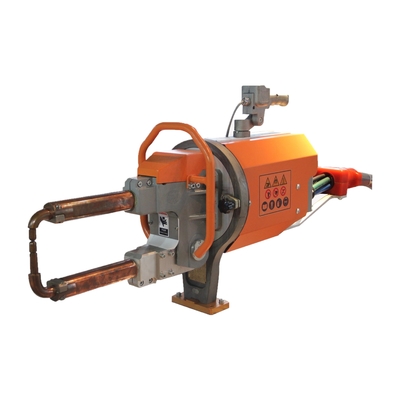

| Product Name: | Portable Resistance Welding Spot Welder | Machine Type: | Auto Repair Tools |
|---|---|---|---|
| Rated Capacity: | 35KVA, 45KVA, 65KVA, | Welding Method: | Pulse Spot Weld |
| Feature: | Easy Operation | MOQ: | 1 Set |
| Max. Welding Thickness: | 5+5 Mm | Weight (KG): | 60KG |
| High Light: | Auto Body Hand Held Resistance Welder,Inverter Pulse Portable Resistance Spot Welder,Mini Spot Welder Machine For Aluminium |
||
Product Description
| Item/models | Unit | DN2-35X | DN2-35C | DN2-45X | DN2-45C | DN2-65X | DN2-65C |
| power at 50% | KVA | 35 | 35 | 45 | 45 | 65 | 65 |
| Maximum short circuit current | KVA | 15 | 15 | 16 | 16 | 46 | 46 |
| Secondary unload voltage | V | 5.7 | 5.7 | 6.3 | 6.3 | 8 | 8 |
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM |
120-280 |
100 | 120-330 | 100 | 160-430 | 100 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Max. arm length | MM | 600 | 500 | 800 | 500 | 1100 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | L/MIN | 12 | 12 | 12 | 12 | 12 | 12 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Application:
The portable spot welding machine is a mobile spot welding equipment, which is suitable for fixed workpieces and mobile spot welding occasions, and used in spot welding operations where fixed spot welding machines cannot or are inconvenient for welding. The Max. thickness is generally 5mm+5mm. It can weld carbon steel plates, coated carbon steel plates, stainless steel plates and other occasions where resistance welding is required.
Features:
1. Adopting special aluminum alloy casting. Having compact structure and small size
2. The rotary plate is installed on the welding machine, which can rotate 360°, making the operation more flexible
3. The welding arm is made of alloy copper material with high electrical conductivity
