| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 Set |
| Price: | $6000 - $6500.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Week |

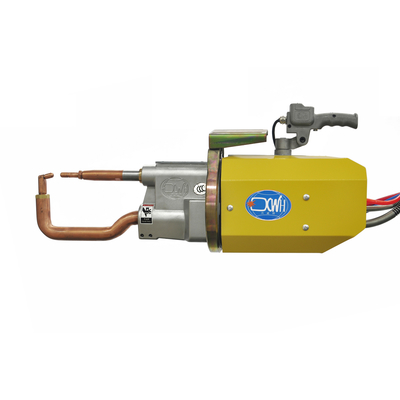

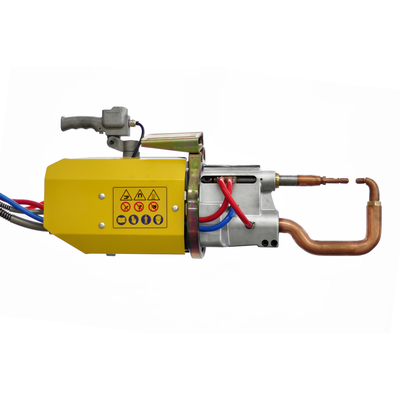

| Product Name: | Small Handheld Portable Spot Welder | Machine Type: | Resistance Welding Machine |
|---|---|---|---|
| Rated Capacity: | 31KVA, 40KVA, 63KVA, | Application: | Industrial |
| Function: | Automobile Welding | Feature: | High Efficiency |
| MOQ: | 1 Set | Weight (KG): | 60KG |
| Highlight: | 63KVA Small Hand Held Spot Welder,Wire Mesh Resistance Welding Machine |
||
Product Description
Resistance welding machine welding methods are mainly spot welding, seam welding, projection welding and butt welding.The portable spot welding is exactly the resistance welding. Resistance welders weld metals together. It consists of a welding head that holds the metal and applies pressure and a welding power supply that outputs current.
| Item/models | Unit | DN2-31X | DN2-31C | DN2-40X | DN2-40C | DN2-63X | DN2-63C |
| power at 50% | KVA | 31 | 31 | 40 | 40 | 63 | 63 |
| Maximum short circuit current | KVA | 14 | 14 | 18 | 18 | 20 | 20 |
| Secondary unload voltage | V | 5.58 |
5.58
|
6.8
|
6.8
|
7.9
|
7.9
|
| Voltage at 50Hz/60Hz | V | 380 | 380 | 380 | 380 | 380 | 380 |
| Distance between the arms | MM |
168-288 |
100 |
168-328
|
100 |
168-428
|
100 |
| Max.strength at electrodes | N |
3000
|
3000
|
3500 |
3000
|
3500 |
3000
|
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke of cylinder | MM |
70
|
50
|
100 | 50 | 100 | 50 |
| Max. arm length | MM |
750
|
350 | 1000 | 450 | 1100 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA |
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
0.2-0.3
|
| Cooling water flow | L/MIN | 4 | 4 | 4 | 4 | 4 | 4 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1. High efficiency and cost-effective resistance spot welding machine
2. Easy to install, operate and maintenance, energy-saving
3. The portable spot welding machine can rotate 360°and stay at any angles
4. Small, light and high output power. It is the smallest welder in the class of same output power
