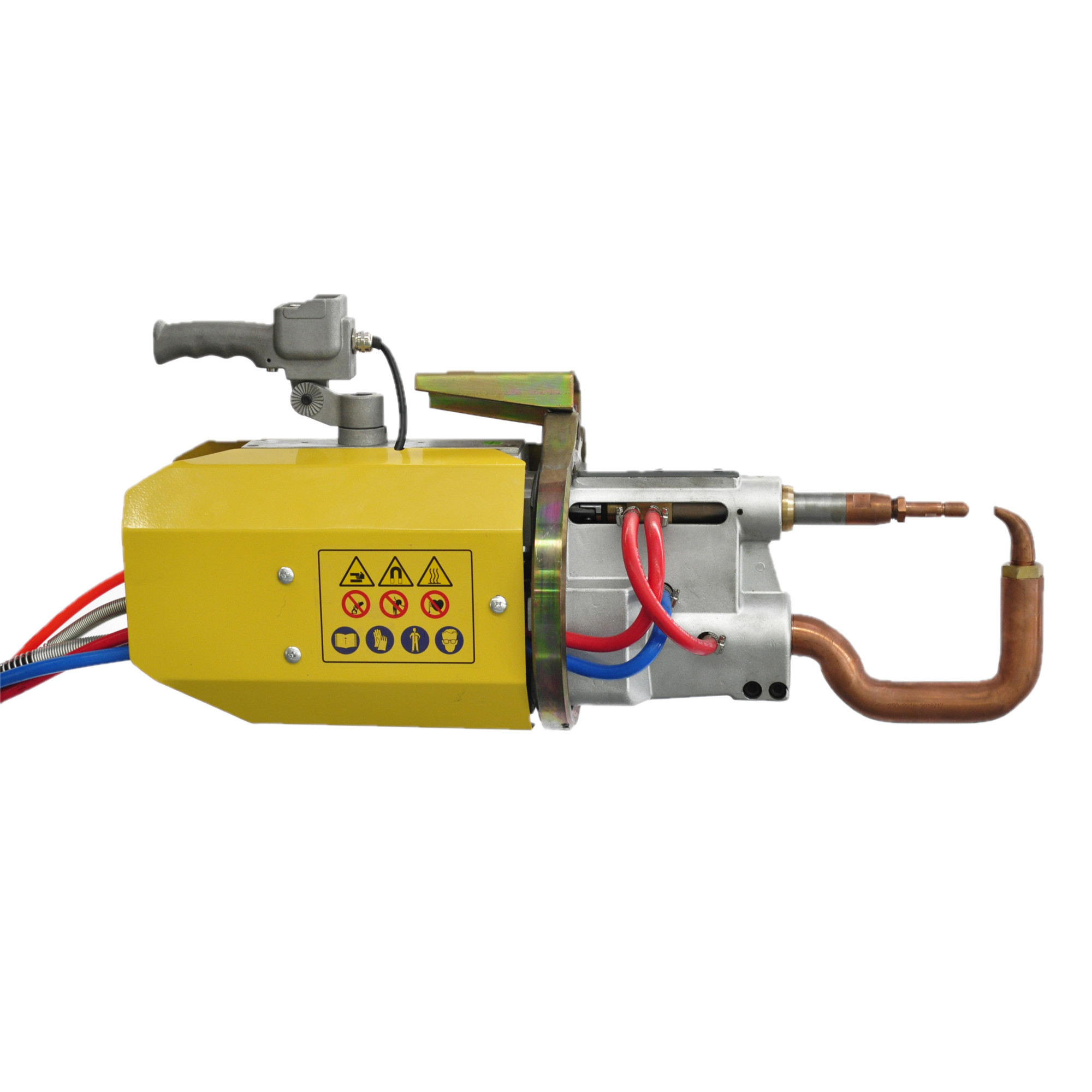

Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DN2
Minimum Order Quantity: 1 Set
Price: $6000 - $6500.00
Packaging Details: wooden Case
Delivery Time: 15 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Week
Detail Information
Product Name: Small Hand Held Portable Spot Welder Machine Type: Resistance Welding Machine
Rated Capacity: 31KVA, 40KVA, 63KVA, Application: Industrial
Function: Automobile Welding Feature: Easy Operation
Advantage: Cost Effective MOQ: 1 Set
High Light:

31KVA Hand Held Spot Welding Gun

,

Modular Structure Mini Portable Spot Welder

,

40KVA Portable Resistance Spot Welder


Product Description



Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welding Machine



Product Description





Resistance welding is to use electrodes to apply a certain pressure to the welding object while powering on and use the joule heat generated between electrodes to melt the metal to achieve the purpose of welding. The basic components are welding power supply, welding transformer, welding head and electrode. The shape, size, material, electroplating layer and the shape and material of electrode will directly affect the quality of welding.



Item/models Unit DN2-31X DN2-31C DN2-40X DN2-40C DN2-63X DN2-63C
power at 50% KVA 31 31 40 40 63 63
Maximum short circuit current KVA 14 14 18 18 20 20
Secondary unload voltage V 5.58
5.58
6.8
6.8
7.9
7.9
Voltage at 50Hz/60Hz V 380 380 380 380 380 380
Distance between the arms MM

168-288

100
168-328
100
168-428
100
Max.strength at electrodes N
3000
3000
3500
3000
3500
3000
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke of cylinder MM
70
50
100 50 100 50
Max. arm length MM
750
350 1000 450 1100 500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA
0.2-0.3
0.2-0.3
0.2-0.3
0.2-0.3
0.2-0.3
0.2-0.3
Cooling water flow L/MIN 4 4 4 4 4 4

♦ Distance,angle and length of welding arm can be made according to customers' requests.





Feature:



1. The portable spot welding machine can move at any angles and positions

2. Fully enclosure structure, sealed Cylinder, easy- maintenance plug-in Hose

3. Modular structure assembly and multifunctional using of welding tong





Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 0





Company Information
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 1
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 2
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 3
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller, etc.
Certifications
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 4
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 5
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 6
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 7
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 8
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 9
Exhibition Pictures
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 10
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 11
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 12
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 13
Service
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 14
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 15
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 16
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on..
Transportation Display
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 17
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 18
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 19
Steel Wire Resistance Hand Held Spot Welding Gun Portable Spot Welder 20
FAQ
1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5.How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE
foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
