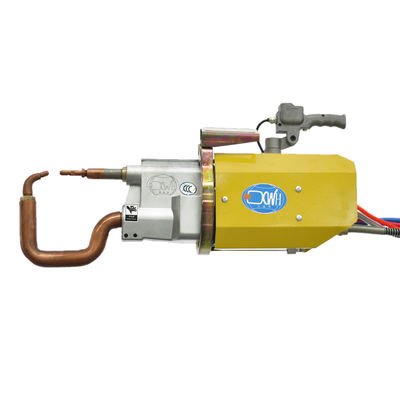

Pulse Single Sided Portable Spot Welding Machine For Stainless Steel

Basic Information
Place of Origin: China
Brand Name: XWH
Certification: CE
Model Number: DN2
Minimum Order Quantity: 1 Set
Price: $6500 - $6000.00
Packaging Details: wooden Case
Delivery Time: 15 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Week
Detail Information
Product Name: Portable Spot Welding Machine Machine Type: Resistance Welding Machine
Application: Metal Plate Spot Welding Function: Spot Weldinng
Max. Welding Thickness: 5+5 Mm Rated Capacity: 60KVA, 80KVA, 100KVA
Weight (KG): 60-120KG MOQ: 1 Set
High Light:

Portable Spot Welding Machine 60KVA

,

Portable Spot Welder For Stainless Steel

,

Single Sided Hand Held Spot Welder


Product Description



Pulse Single Sided Portable Spot Welding Machine Price For Stainless Steel


Product Description



Item/models Unit DN2-60X DN2-60C DN2-80X DN2-80C DN2-100X DN2-100C
power at 50 KVA 60 60 80 80 100 100
Maximum short circuit current KVA 10 10 12 12 14 14
Secondary unload voltage V 8.9 8.9 8.9 8.9 8.9 8.9
Voltage at 50Hz/60Hz V 3φ380 3φ380 3φ380 3φ380 3φ380 3φ380
Distance between the arms MM

120-280

100-300 120-128 100-300 120-280 100-300
Max.strength at electrodes N 3500 3500 3500 3500 3500 3500
Working stroke MM 15-45 15-25 15-45 15-25 15-45 15-25
Max.stroke MM 50-120 60/100/140 50-120 60/100/140 50-120 60/100/140
Max. arm length MM 500 500 600 500 600 500
Compressed Air supply MPA 0.5 0.5 0.5 0.5 0.5 0.5
Max thickness of mild steel sheet with min.length s arm MM 3+3 3+3 4+4 4+4 5+5 5+5
With 500mm arms MM 2+2 2+2 3+3 3+3 3+3 3+3
With maximum length arms MM 1.2+1.2 1.2+1.2 2+2 1.8+1.8 2.0+2.0 2.0+2.0
Cross wire maximum MM 14+14 14+14 16+16 16+16 20+20 20+20
Cooling water pressure drop MPA 0.05 0.05 0.05 0.05 0.05 0.05
Cooling water flow l/MIN 8 8 8 8 8 8

♦ Distance,angle and length of welding arm can be made according to customers' requests.





In 2013, Xinwei launched the intermediate frequency mobile spot welder, which is the fourth generation of the company's portable spot welder. Compared with the ordinary power frequency spot welder, the intermediate frequency spot welder has the following improvements:



1. The shell is changed from the original metal shell to plastic shell, and the weight is reduced about 15kg so it is more convenient and safer to operate.



2. Medium frequency can integrate more energy saving and can save electricity 10-20% compared to the power frequency.





Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 0

Company Information
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 1
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 2
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 3
Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance SpotWelding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller, etc.
Certifications
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 4
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 5
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 6
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 7
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 8
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 9
Exhibition Pictures
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 10
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 11
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 12
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 13
Service
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 14
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 15
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 16
Our engineers were intalling portable spot welding machine in car manufacturer's workshop oversea.
Our engineers will train customer how to operate, repair and maintaining machines and so on..
Transportation Display
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 17
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 18
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 19
Pulse Single Sided Portable Spot Welding Machine For Stainless Steel 20
FAQ
1. When can you arrange shippment?
We usually arrange shippment within 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, Each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5.How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE
foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
