| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 Set |
| Price: | $6500 - $6000.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Week |

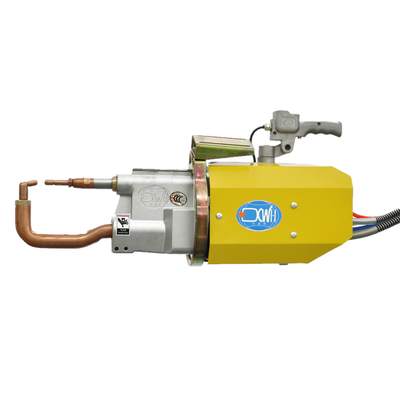

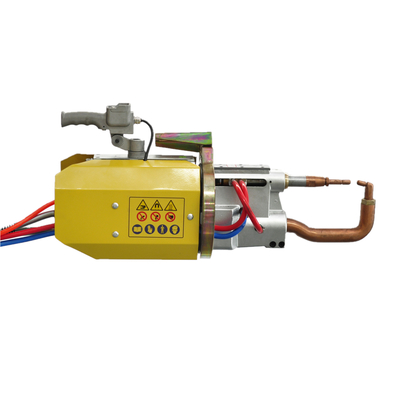

| Product Name: | Portable Spot Welding Machine | Machine Type: | Resistance Spot Welding Machine |
|---|---|---|---|
| Keyword: | Metal Steel Spot Welding Machine | Function: | Spot Weldinng |
| Max. Welding Thickness: | 5+5 Mm | Rated Capacity: | 60KVA, 80KVA, 100KVA |
| Weight (KG): | 60-120KG | MOQ: | 1 Set |
| Highlight: | Portable Spot Welding Machine 80KVA,Sheet Metal Portable Spot Welder,CCC Approved Portable Spot Welder |
||
| Item/models | Unit | DN2-60X | DN2-60C | DN2-80X | DN2-80C | DN2-100X | DN2-100C |
| power at 50 | KVA | 60 | 60 | 80 | 80 | 100 | 100 |
| Maximum short circuit current | KVA | 10 | 10 | 12 | 12 | 14 | 14 |
| Secondary unload voltage | V | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
| Voltage at 50Hz/60Hz | V | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 |
| Distance between the arms | MM |
120-280 |
100-300 | 120-128 | 100-300 | 120-280 | 100-300 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Max. arm length | MM | 500 | 500 | 600 | 500 | 600 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 8 | 8 | 8 | 8 | 8 | 8 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
In 2013, Xinwei launched the intermediate frequency mobile spot welder, which is the fourth generation of the company's mobile spot welder.
1. The welding is stable with less spark spatter when welding. Welding trace is not obvious and the welding spots are more perfect.
2. Transformer used as a key part of welding machine can be up to 300KVA. Intermediate frequency integrated spot welding machine transformer diode adopts the first-line brand which has reliable quality and long service life.
3. The portable spot welding machine can not only weld stainless steel, galvanized sheet, but also can weld aluminum sheet. It can be used more widely.
