| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 Set |
| Price: | $6500 - $6000.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Week |

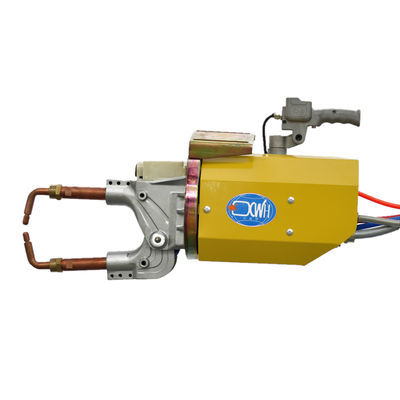

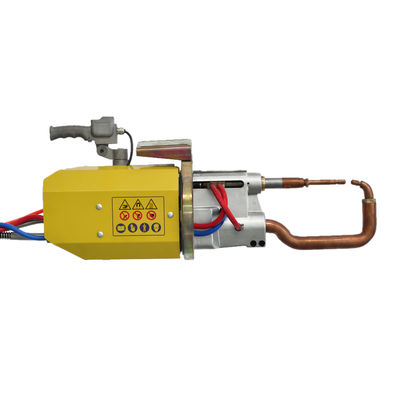

| Product Name: | Portable Spot Welding Machine | Machine Type: | Resistance Spot Welding Machine |
|---|---|---|---|
| Keyword: | Welding Spot Machine | Function: | Sheet Metal Spot Welding |
| Max. Welding Thickness: | 5+5 Mm | Rated Capacity: | 60KVA, 80KVA, 100KVA |
| Weight (KG): | 60-120KG | MOQ: | 1 Set |
| High Light: | 100KVA Stainless Steel Spot Welder,80KVA Mini Portable Spot Welder,CCC Portable Pulse Spot Welder |
||
Features:
1. The welder assembles the most three part of welding transformer, welding tongs and water cable as one while the volume is relatively small and light.
2. The welder has bearings turntable hanging device, can be mobile welding in X, Y, Z arbitrary 3D direction used by the balancer, it is manoeuvrable and light.
3. The portable spot weldiing machine can not only weld stainless steel, carbon steel sheet, galvanized sheet, but also can weld aluminum sheet.
| Item/models | Unit | DN2-60X | DN2-60C | DN2-80X | DN2-80C | DN2-100X | DN2-100C |
| power at 50 | KVA | 60 | 60 | 80 | 80 | 100 | 100 |
| Maximum short circuit current | KVA | 10 | 10 | 12 | 12 | 14 | 14 |
| Secondary unload voltage | V | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
| Voltage at 50Hz/60Hz | V | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 |
| Distance between the arms | MM |
120-280 |
100-300 | 120-128 | 100-300 | 120-280 | 100-300 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Max. arm length | MM | 500 | 500 | 600 | 500 | 600 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 8 | 8 | 8 | 8 | 8 | 8 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
