| Place of Origin: | China |
|---|---|
| Brand Name: | XWH |
| Certification: | CE |
| Model Number: | DN2 |
| Minimum Order Quantity: | 1 Set |
| Price: | $6500 - $6000.00 |
| Packaging Details: | wooden Case |
| Delivery Time: | 15 Working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set/Sets per Week |

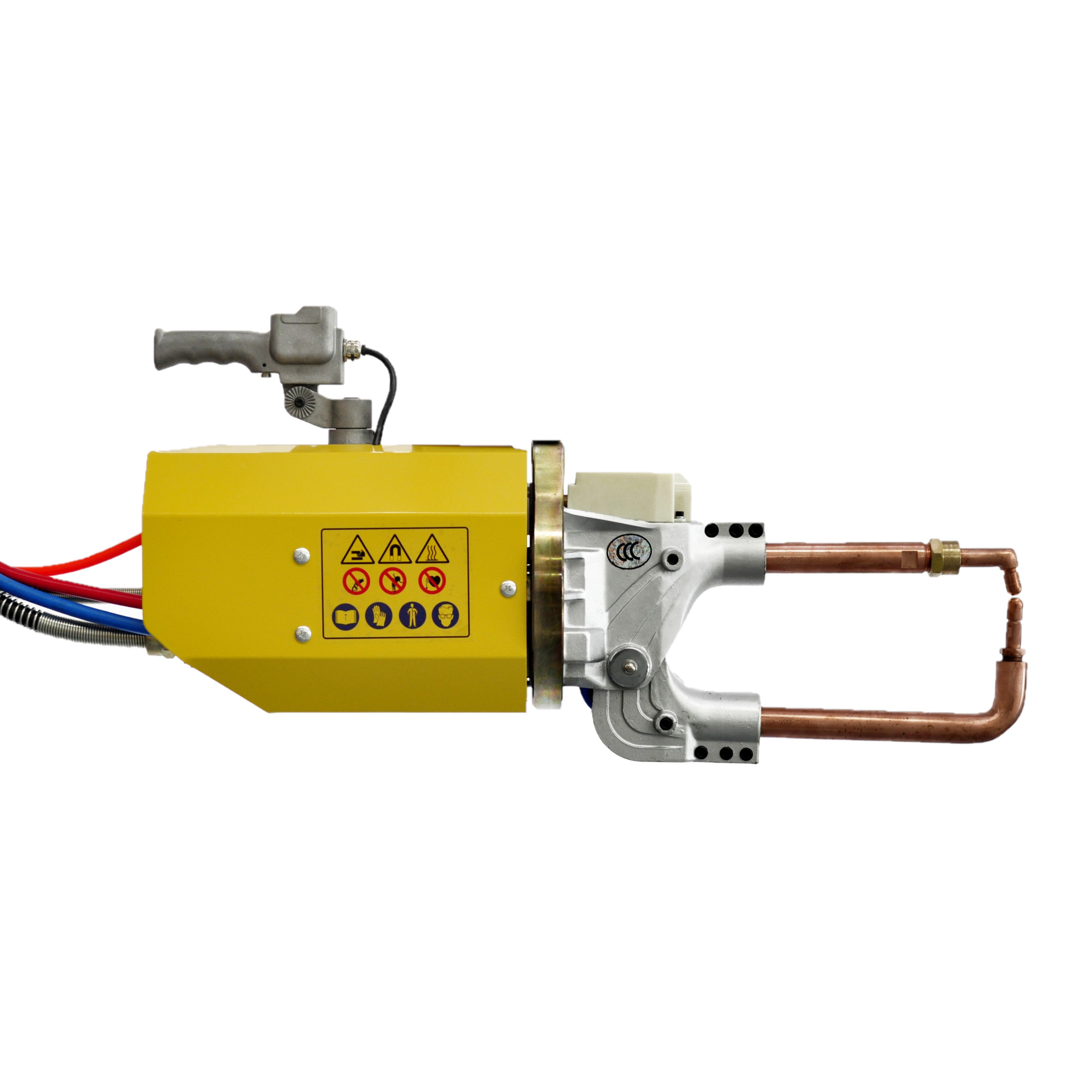

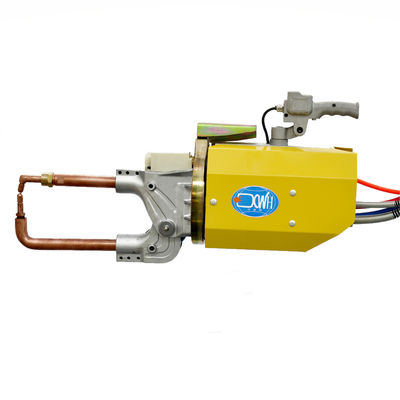

| Product Name: | Portable Spot Welding Machine | Machine Type: | Resistance Spot Welding Machine |
|---|---|---|---|
| Keyword: | Welding Spot Machine | Function: | Sheet Metal Spot Welding |
| Max. Welding Thickness: | 5+5 Mm | Rated Capacity: | 60KVA, 80KVA, 100KVA |
| Weight (KG): | 60-120KG | MOQ: | 1 Set |
| High Light: | Copper Mini Spot Welder Machine,60KVA Portable Resistance Spot Welder,Portable Resistance Spot Welder 100KVA |
||
| Item/models | Unit | DN2-60X | DN2-60C | DN2-80X | DN2-80C | DN2-100X | DN2-100C |
| power at 50 | KVA | 60 | 60 | 80 | 80 | 100 | 100 |
| Maximum short circuit current | KVA | 10 | 10 | 12 | 12 | 14 | 14 |
| Secondary unload voltage | V | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 |
| Voltage at 50Hz/60Hz | V | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 | 3φ380 |
| Distance between the arms | MM |
120-280 |
100-300 | 120-128 | 100-300 | 120-280 | 100-300 |
| Max.strength at electrodes | N | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Working stroke | MM | 15-45 | 15-25 | 15-45 | 15-25 | 15-45 | 15-25 |
| Max.stroke | MM | 50-120 | 60/100/140 | 50-120 | 60/100/140 | 50-120 | 60/100/140 |
| Max. arm length | MM | 500 | 500 | 600 | 500 | 600 | 500 |
| Compressed Air supply | MPA | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max thickness of mild steel sheet with min.length s arm | MM | 3+3 | 3+3 | 4+4 | 4+4 | 5+5 | 5+5 |
| With 500mm arms | MM | 2+2 | 2+2 | 3+3 | 3+3 | 3+3 | 3+3 |
| With maximum length arms | MM | 1.2+1.2 | 1.2+1.2 | 2+2 | 1.8+1.8 | 2.0+2.0 | 2.0+2.0 |
| Cross wire maximum | MM | 14+14 | 14+14 | 16+16 | 16+16 | 20+20 | 20+20 |
| Cooling water pressure drop | MPA | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| Cooling water flow | l/MIN | 8 | 8 | 8 | 8 | 8 | 8 |
♦ Distance,angle and length of welding arm can be made according to customers' requests.
Features:
1. The portable spot welding machine has many different types and many species welding tongs supply for the choice of different materials, different thickness, different work places and different welding processes.
2. Welding transformer With temperature control protection, is suitable for the area of different climates.
3. The safety performance of the welder is a leading international standards and better performance than national standards.
